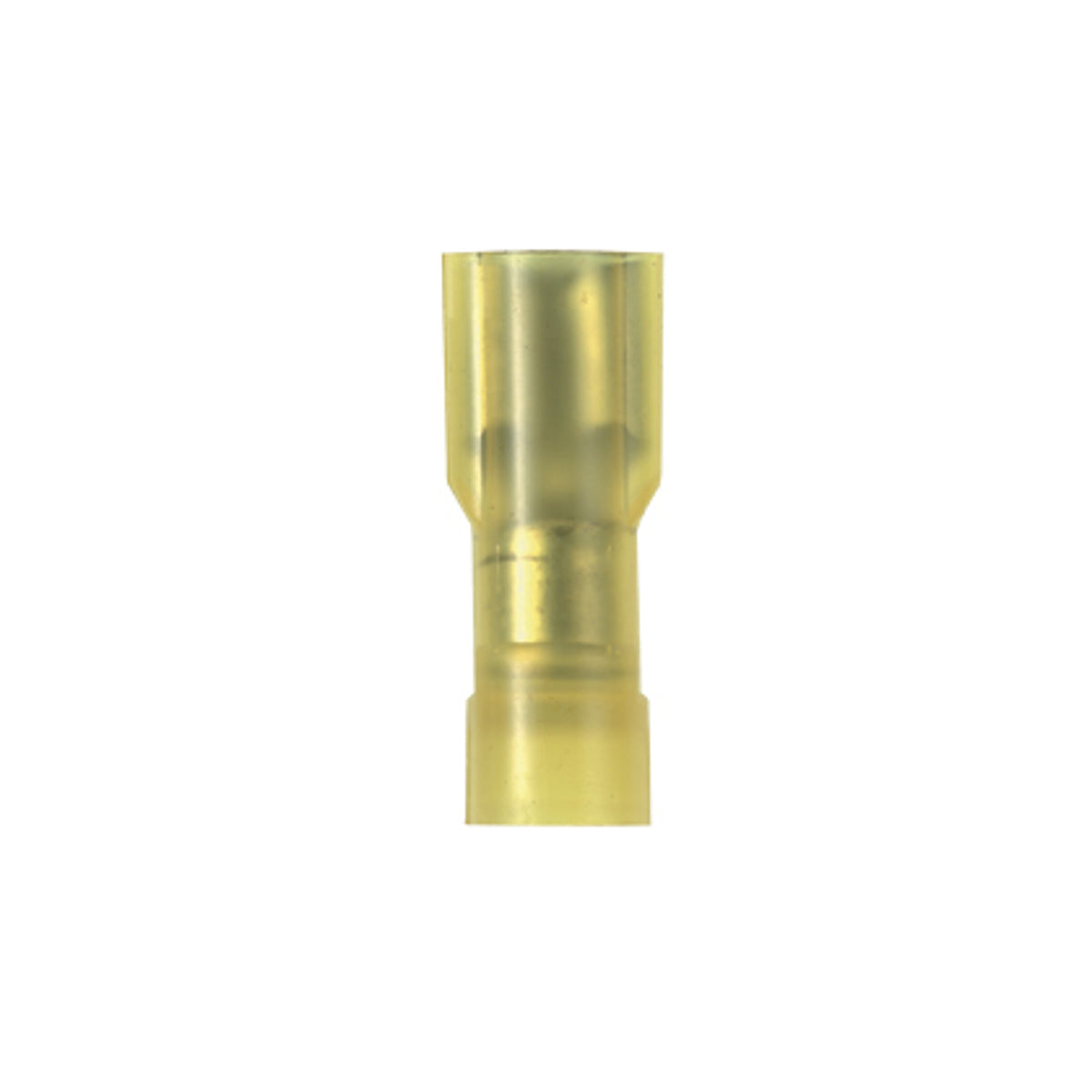

Panduit DNF10-250FI-L Pan-Term Disconnect, Yellow, Nylon, 10-12 AWG, 0.250 x 0.032 inches Tab

Product Description

The Panduit DNF10-250FI-L Pan-Term Disconnect is a fully insulated female disconnect with a funnel entry and metal collar. It is made of brass with nylon insulation and a tin-plated finish. This disconnect is rated for 600V and has a temperature rating of 221 degrees Fahrenheit (105 degrees Celsius).

• Fully insulated female disconnect
• Funnel entry and metal collar
• Internal wire stop assures proper wire insertion length
• Barrel serrations assure good wire contact and maximum tensile strength
• Funnel entry design allows for faster wire insertion and lower installed cost

Product Highlights

The DNF10-250FI-L disconnect ensures proper wire insertion length for a higher quality connection. Its design allows for faster wire insertion and lower installed cost.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: DNF10-250FI-L
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: DNF10-250FI-L
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Color: Yellow
• Connection: Funnel Entry
• Finish: Tin-Plated
• Insulation: Nylon
• Material: Brass
• Standard: UL 310, CSA 22.2 No.153
• UPC: 074983826285
• GTIN: 00074983826285
• Item Type: Disconnect
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600
• Wire Size: 10-12 AWG
• Type: Disconnect
• Termination: Crimp
• Series: Pan-Term
• Fully Insulated: Fully Insulated
• Packaging: Bulk
• Mounting Type: Free Hanging (In-Line)
• Part Status: Active
• Terminal Type: Standard
• Contact Material: Brass
• Gender: Female
• Contact Finish: Tin
• Tab Width: 0.250" (6.35mm)
• Insulation Diameter: 0.220" (5.59mm)
• Tab Thickness: 0.032" (0.81mm)
• Base Product Number: DNF10
• Length - Overall: 0.950" (24.13mm)
• Barrel Type: Grip Sleeve
• Color Coding: Yellow
• Insulation Material: Nylon
• Max Operating Temperature: 105 degrees C
• Tab Size: 6.3 x 0.8 mm
• TC Connection: Funnel
• Overall Length: 0.95 in
• Width: 0.36 in
• Buy American Compliant: Y
• Standards and Certifications: Standards Met: UL 310, CSA 22.2 No.153
• Pkg Qty: 50
• Height: 0.27 Inch
