Panduit D3X4LG6 Type D Round Hole Wiring Duct 3-1/4 in W x 4 in H

Product Description

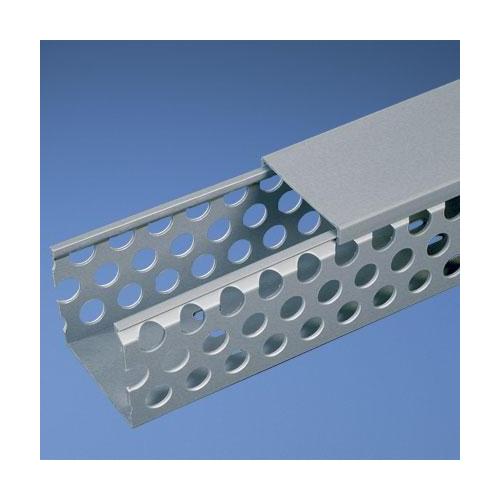

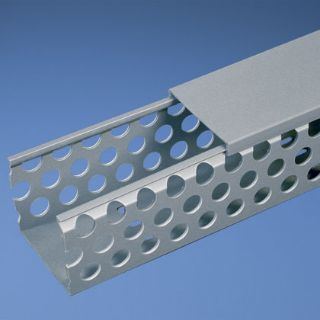

The Panduit D3X4LG6 is a Type D round hole wiring duct made from PVC material. It measures three inches in width and four inches in height, with a length of six feet. This wiring duct features multiple rows of holes to hold and secure wires at different heights and positions, optimizing wire management.

• Mounting holes included for easy installation
• UL recognized continuous-use temperature rating up to one hundred twenty-two degrees Fahrenheit
• Lead-free PVC material ensures safe usage

Product Highlights

The round hole design enhances wire management by allowing flexibility in wire positioning and supports varied wire arrangements.

Product Information

Standard Information

• Brand: Panduit
• MPN: D3X4LG6

Technical Specifications

• Material: PVC
• Length: 6 ft
• Width: 3.25 in
• Height: 4 in
• Type: Round Hole Wiring Duct
• Slot Type: Hole/Slot Punching
• Adhesive Backed: Yes
• Standards: RoHS Compliant, UL 94 V-0 Flammability Rated
• UPC: 074983213405
• GTIN: 00074983213405
• UNSPSC Code: 39131712
