Panduit D10-250-L Conn QC Rcpt 10-12AWG 0.250

Product Description

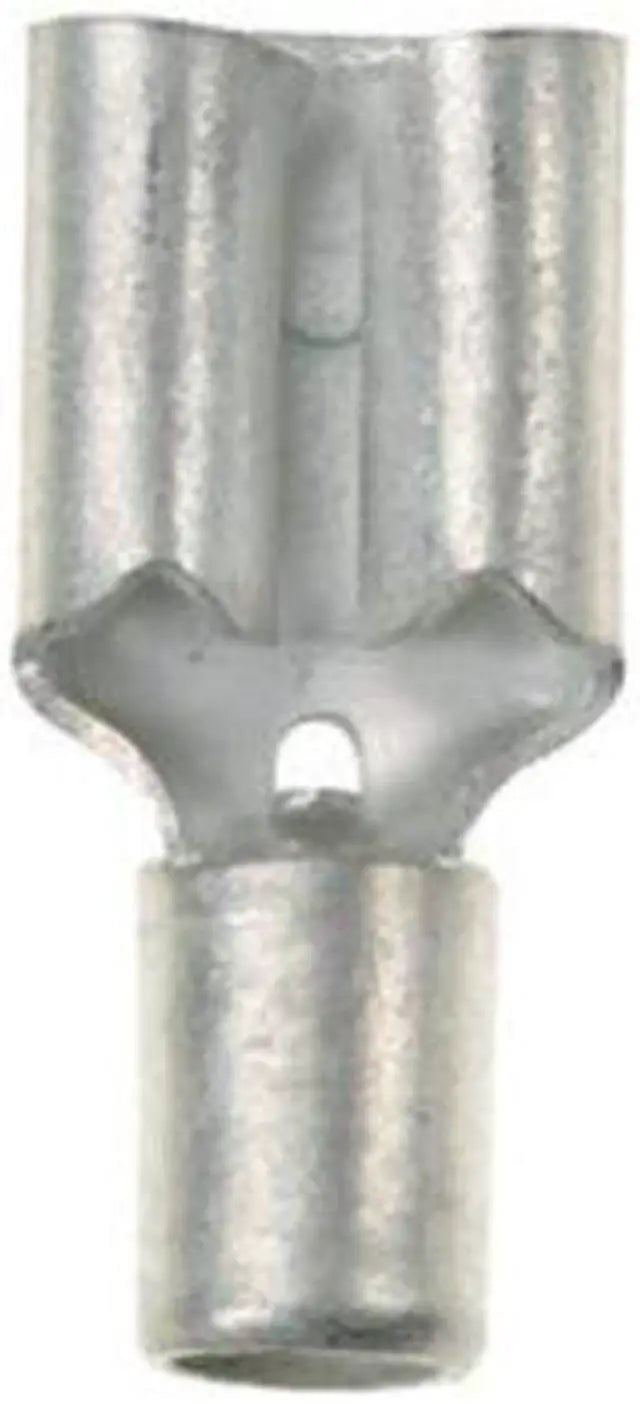

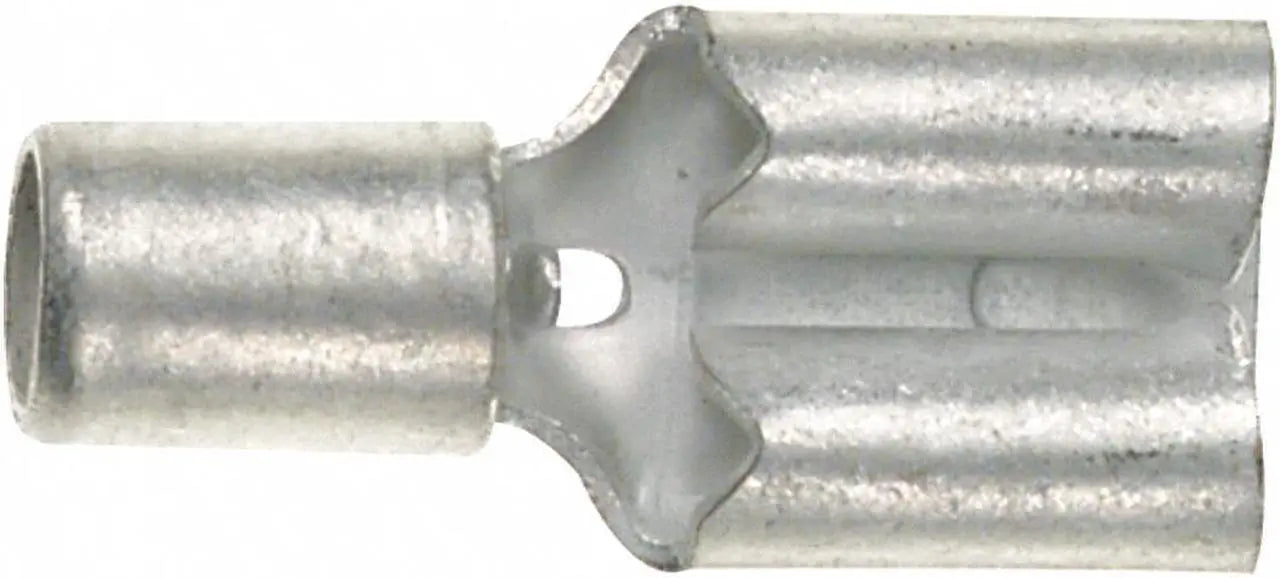

The PANDUIT D10-250-L is a 0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector that is non-insulated. The vibration resistant female disconnect in metallic brass helps overcome the failures caused by high vibration. It supports a wire range of 12-10 AWG (4.0-6.0 mm).

• Serrated Termination
• Contact Material: Brass
• Wire Gauge: 10-12 AWG

Product Highlights

The PANDUIT D10-250-L quick disconnect terminal has a tab size of 0.25 in and is tin-plated.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: D10-250-L

Technical Specifications

• Category: Connectors, Interconnects
• Termination: Crimp
• Series: D Series
• Wire Gauge: 10-12 AWG
• Insulation: Non-Insulated
• Part Status: Active
• Mounting Type: Free Hanging (In-Line)
• Terminal Type: Standard
• Features: Serrated Termination
• Gender: Female
• Contact Material: Brass
• Tab Width: 0.250" (6.35mm)
• Contact Finish: Tin
• Tab Thickness: 0.032" (0.81mm)
• Base Product Number: D10
• Length - Overall: 0.660" (16.76mm)
• Angle: straight Degree(s)
• Brand: PANDUIT
• Contact Plating: Tin-Plated
• Finish: Tinned
• For Use With: CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
• Product Type: Quick Disconnect Terminals
• Tab Size: 0.25 in
• UPC Code: 074983822041
• Insulation Material: Non-Insulated
• Type: Electrical Connectors
• American Wire Gauge: 10AWG
• Material: Brass
• Width: 0.3"
• Length: 0.72"
• MPN: D10-250-L
• Compatible Mounting Type: Wire
• Connector Style: Disconnect
