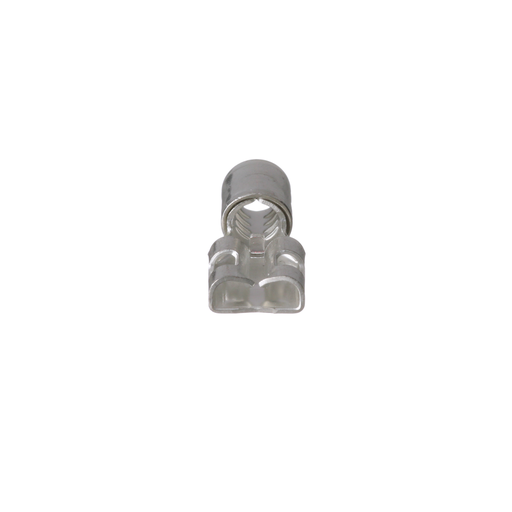

Panduit D10-250-D Disconnect, 10, 0.72 inches

Brand: PANDUIT
SKU: D10-250-D
Availability: Out Of Stock
$221.79
$221.79
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The PANDUIT D10-250-D disconnect is designed for quick and repeatable interconnections. Constructed from brass with a metallic finish, it accommodates 10-12 AWG wire. This non-insulated, crimp terminal features internal serrations and a sleeved barrel for secure wire contact and maximum tensile strength.

  • Right angle design for use in limited space applications
  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping

Product Highlights

The D10-250-D disconnect ensures reliable connections with its internal barrel serrations and easy wire insertion design.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: D10-250-D
  • Country of Origin: MEX
Technical Specifications
Color
Metallic
Width
0.30"
Length
0.72"
Voltage
2000 V
Material
Brass
Tab Size
0.250" x 0.032"
Tab Style
Female
Compatible Tool
CT-1570, CT-2500, CT-600-A
Max Temperature
150C
Supplier Series
D
Specification(s)
CSA, RoHS, UL, UL 310
Flammability Rating
NOT SPECIFIED
Standard Package Quantity
500
Wire/Cable Gauge Size Max
10
Wire/Cable Gauge Size Min
12
Application
For making quick and repeatable interconnections
Conductor Size
12 to 10 AWG
Conductor Type
Stranded
Dimensions
0.72 in L x 0.3 in W x 0.12 in H
Finish
Tin Plated
Insulated
Non-Insulated
Manufacturer Part Number
D10-250-D
Standards/Approvals
ARRA Compliant|Buy American Act Compliant|CSA File No. LR31212/C22.2 File No. 153|RoHS Compliant|UL 310/20H3 File No. E78522|UL Listed
Temperature Rating
302 deg F
Terminal Type
Crimp
Type
Disconnect
Wire Gauge
10-12 AWG
Mounting Type
Free Hanging (In-Line)
Features
Serrated Termination
Gender
Female
Contact Material
Brass
Contact Finish
Tin
Tab Width
0.250" (6.35mm)
Tab Thickness
0.032" (0.81mm)
Base Product Number
D10
Length - Overall
0.660" (16.76mm)
Termination
Crimp
Catalog Number
D10-250-D
Connection
Standard
Country of Origin
MEX
EU RoHS Indicator
Y
Height
3.40 in
Height [Metric]
8.6360 cm
Length [Metric]
12.9540 cm
Mounting
1932-09-01
Returnable
Y
Series
D Series
Standards
ARRA CompliantBuy American Act CompliantRoHS CompliantUL 310CSA C22.2 No. 153UL Recognized
Sub Brand
Pan-Term?
Width [Metric]
8.5090 cm
Wire Size
#10 AWG
Barrel Type
Sleeve
