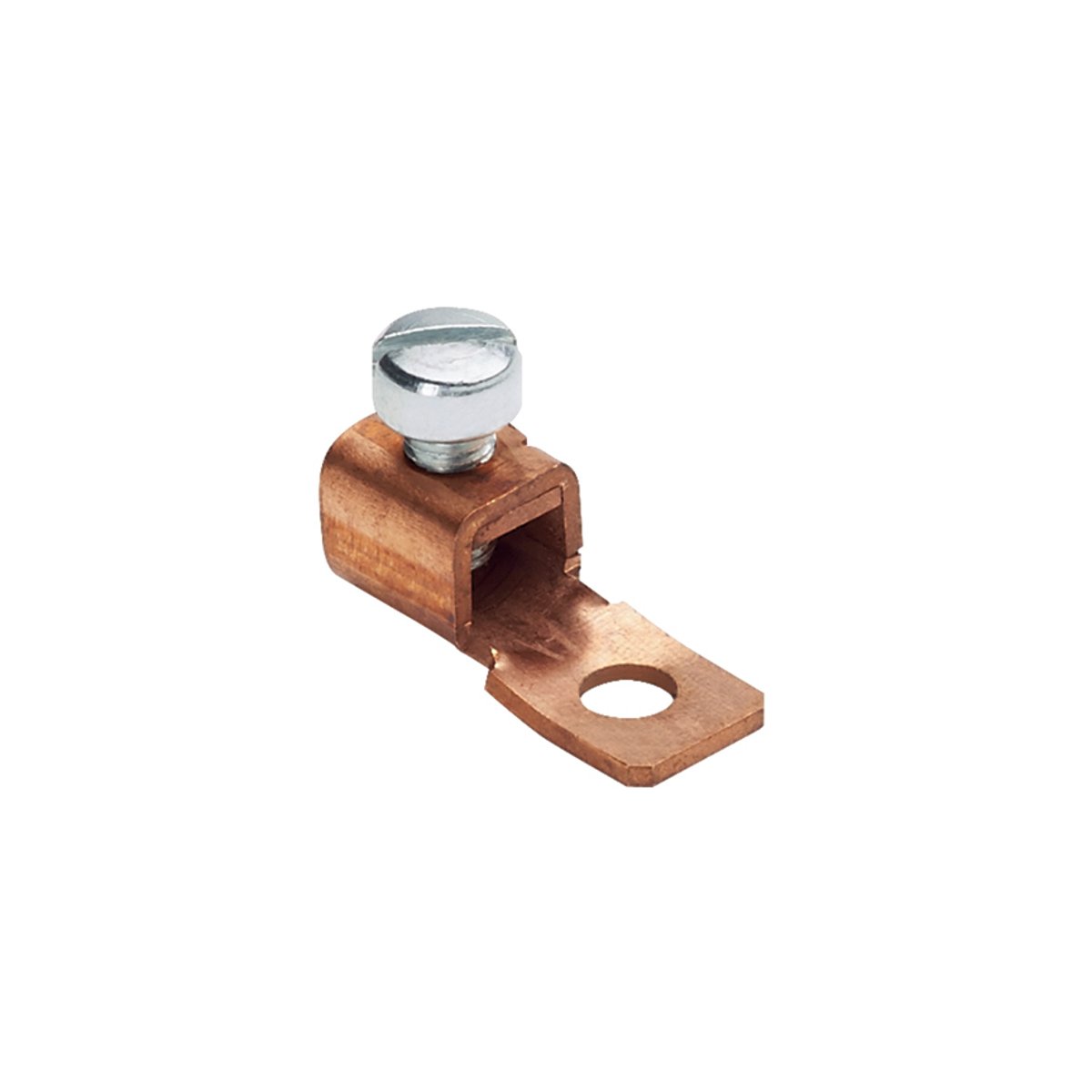

Panduit CXS35-36-C Pan-Lug CXS35-36-C Mechanical Lug 1 Hole 1 Barrel

Product Description

The Panduit CXS35-36-C is a mechanical connector lug designed for use with stranded copper wires. This one-hole, single barrel lug is constructed from high strength electrolytic copper, ensuring reliable electrical connections. It accommodates a wide range of wire sizes from fourteen to six American Wire Gauge (AWG) and is ideal for applications that require durability and versatility.

• Compatible with stranded copper code conductors
• Voltage rating up to 600 VAC
• Temperature rated to ninety degrees Celsius

Product Highlights

This mechanical lug provides consistent contact and reliable performance for various electrical applications. Its design minimizes inventory needs by fitting multiple wire sizes.

Product Information

Standard Information

• Manufacturer: Panduit
• Catalog Number: CXS35-36-C

Technical Specifications

• Material: Copper
• Stud Size: 3/16 in
• Number of Holes: 1
• Insulation: Non-Insulated
• Application: Stranded Copper Code Conductor
• Voltage Rating: 600
• Current Rating: 35 A
• Dimensions: 1.08 in L x 0.38 in W x 0.39 in H
