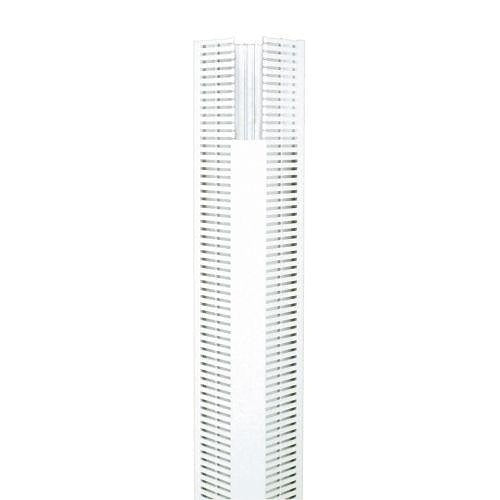

Panduit CWD4WH6 Corner Wiring Duct Base 4 Inch

Product Description

The PANDUIT CWD4WH6 is a corner wiring duct base designed to route and manage electrical wiring at 90-degree turns within an enclosure or panel. It serves as the foundation piece for corner wiring duct assemblies, holding conductors securely in place while maintaining a clean, organized cable path. At 4 inches in width, it accommodates a substantial bundle of control or power wiring. Electricians and panel builders use this component when building out structured wiring duct systems inside electrical enclosures, control panels, and distribution cabinets.

This corner duct base is suited for commercial and industrial panel wiring applications where organized cable management is required at panel corners. It pairs with compatible PANDUIT wiring duct covers and straight duct sections to form a complete cable management system. Typical installations include motor control centers, PLC enclosures, switchgear panels, and industrial control cabinets where wire routing at corners must be neat, protected, and accessible for future maintenance.

Key Features

• 4-inch width accommodates high-density wire bundles at panel corners
• Corner configuration provides a 90-degree wire routing path inside enclosures
• Base component designed to accept a compatible wiring duct cover for a complete assembly
• Sold individually, allowing targeted replacement or staged panel builds

Compatibility

Designed as an OEM-style fit for PANDUIT corner wiring duct systems used in electrical enclosure and control panel installations.

Installation Notes

Installation is typically performed by licensed electricians or panel builders during enclosure wiring. De-energize the panel and follow lockout/tagout procedures before routing or securing conductors. Mount the duct base securely to the panel rail or back plate before dressing wires into the channel. Follow NEC guidelines for conductor fill and separation of control versus power wiring where applicable.
