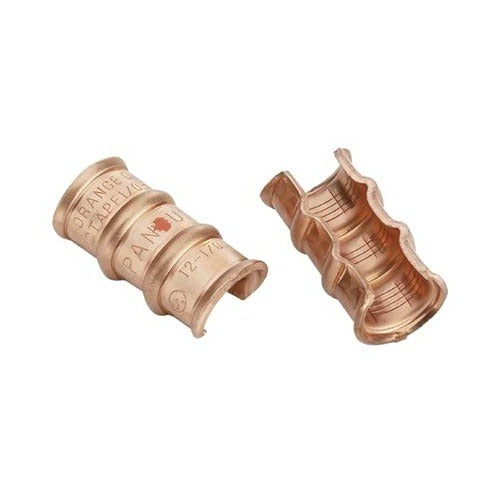

Panduit CTAPF3-12-C Copper Compression C-tap

Product Description

The PANDUIT CTAPF3-12-C is a copper compression C-tap connector used to create a secure, low-resistance tap connection on copper conductors without interrupting the main run. This type of fitting is a staple in electrical distribution work, allowing a branch conductor to be tapped off a continuous main conductor using a hydraulic or mechanical compression tool. The result is a gas-tight, vibration-resistant joint suited for use in panel work, service entrance applications, and feeder runs where a reliable tap is required.

Copper compression C-taps are used by licensed electricians in both residential and commercial electrical installations. They are commonly found in load center work, meter socket installations, and service lateral connections where a branch tap must be made off a main feeder conductor. The connector accepts the conductor on both the run and tap sides, with the compression process permanently securing the joint without solder or additional hardware.

Key Features

• Copper construction provides excellent conductivity and corrosion resistance for direct conductor-to-conductor connections
• Compression-style termination creates a gas-tight, vibration-resistant mechanical bond
• C-tap geometry allows tapping a branch conductor off a continuous main run without cutting the main
• Single-unit packaging allows precise quantity ordering for job-specific needs

Compatibility

Designed as an OEM-style compression C-tap connector for copper conductor applications in residential and commercial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before making any connections. Use only a calibrated compression tool rated for the connector size to ensure a proper gas-tight crimp. Do not use pliers or non-rated tools as a substitute for the correct compression die set.
