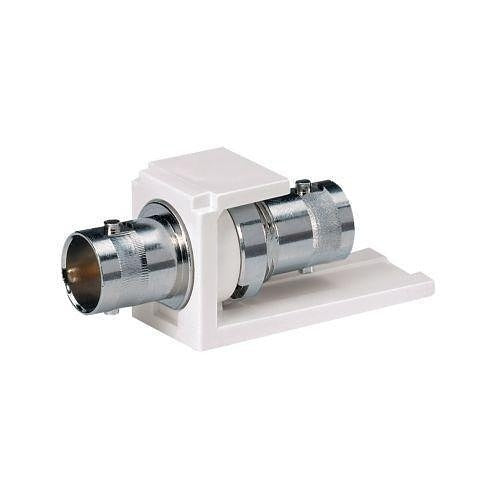

Panduit CMBAEIY Bnc 50 Ohm Adapter Module

Product Description

The PANDUIT CMBAEIY is a BNC 50-ohm adapter designed for use with modular panel systems. It provides a secure, impedance-matched connection point for coaxial signal lines within structured wiring installations. The adapter interfaces with compatible module bay housings, allowing integrators and low-voltage technicians to incorporate BNC terminations into patch panel or surface-mount frame assemblies. With a 50-ohm characteristic impedance, it is suited for RF, video, and data signal applications where impedance control is critical to maintaining signal integrity.

This adapter is used in commercial and residential structured cabling environments where BNC connectivity must be integrated into modular patching systems. It is typically installed in telecommunications rooms, AV distribution racks, and security system head-end enclosures. Low-voltage technicians and systems integrators are the primary installers. The unit is sold individually and is intended for use with compatible PANDUIT module bay housings.

Key Features

• 50-ohm impedance for coaxial RF, video, and data signal applications
• BNC interface provides a reliable, twist-lock coaxial connection
• Modular design integrates into compatible panel or frame assemblies
• Single-unit packaging allows targeted replacement or incremental installation

Compatibility

Designed as an OEM-style modular adapter for use with compatible BNC module bay panel systems in structured cabling and AV distribution installations.

Installation Notes

Installation is typically performed by licensed low-voltage technicians or structured cabling installers. De-energize all connected signal sources before inserting or removing the adapter from its module bay. Follow TIA-568 or applicable structured cabling standards for termination practices. Ensure the host panel or frame is rated for the intended signal frequency range before installation.
