Panduit CLMAR2/0-14-Q Mechanical Lug With Anti-Rotation

Product Description

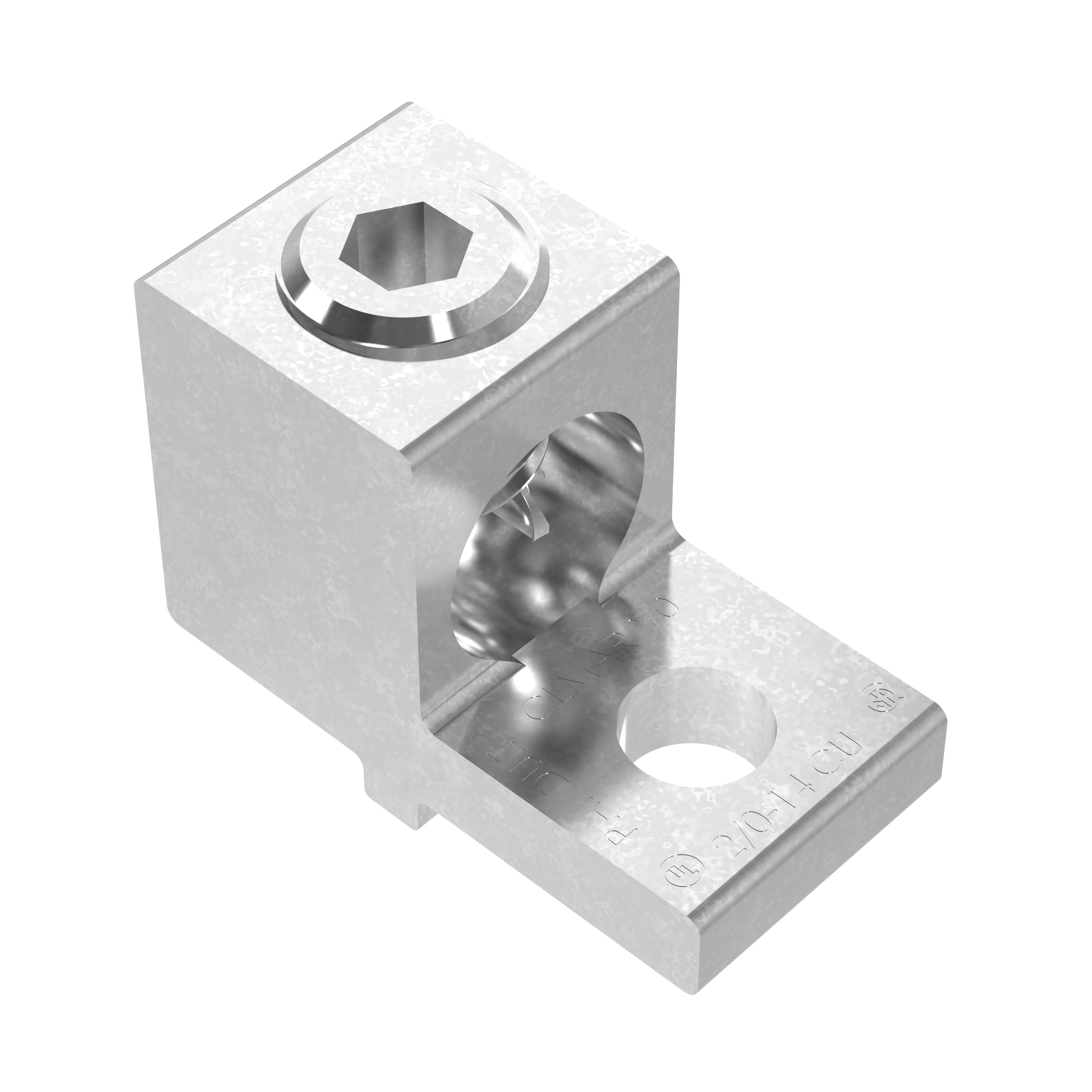

The PANDUIT CLMAR2/0-14-Q copper mechanical lug provides an anti-rotational feature. It connects the main ground conductor to Panduit UGB series of universal ground bars. This lug accommodates conductor sizes from 14 to 2/0 AWG and features a 1/4 inch stud. It is constructed from tin-plated copper for enhanced conductivity and corrosion resistance.

• Anti-rotational feature
• Connects main ground conductor to Panduit UGB series of Universal Ground Bars
• Accommodates 14 to 2/0 AWG conductor sizes

Product Highlights

The PANDUIT CLMAR2/0-14-Q mechanical lug ensures a secure and reliable grounding connection.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: CLMAR2/0-14-Q
• Country of Origin: USA

Technical Specifications

• Application: Main equipment ground conductor
• Conductor Size: 14 to 2/0 AWG
• Conductor Type: Copper
• Finish: TiN Coated
• Manufacturer Part Number: CLMAR2/0-14-Q
• Material: Copper
• Number of Bolt Holes: 1
• Stud Size: 1/4 in
• Type: Anti-Rotational
• Mounting Type: Free Hanging (In-Line)
• Termination: Screw
• Wire Gauge: 2/0-14 AWG
• Insulation: Non-Insulated
• Terminal Type: Lug, Grounding
• Features: With Screw
• Contact Finish: Tin
• Terminal Style: Single Stud Hole
• Contact Material: Copper
• Tab Thickness: 0.185" (4.70mm)
• Diameter - Ring ID: 0.250" (6.35mm)
• Length - Overall: 1.205" (30.60mm)
• Tongue Thickness: 0.19 in
• Tongue Type: Straight
• Standard: UL/CSA
• Rated Voltage: 600V
• Screw Head Type: Hex
• Lug Wire Size: 14-2/0 AWG
• Length: 1.2 in.
• Height: 0.87 in.
• Width: 0.6 in.
• Termination Method: Screw
• Body Orientation: Straight
• Plating: Tin
• Wire Size (AWG): 14-(2/0)
• Product Length (mm): 30.6
• Product Depth (mm): 22.1
• Poles: 1
• Brand: Pan-Lug
