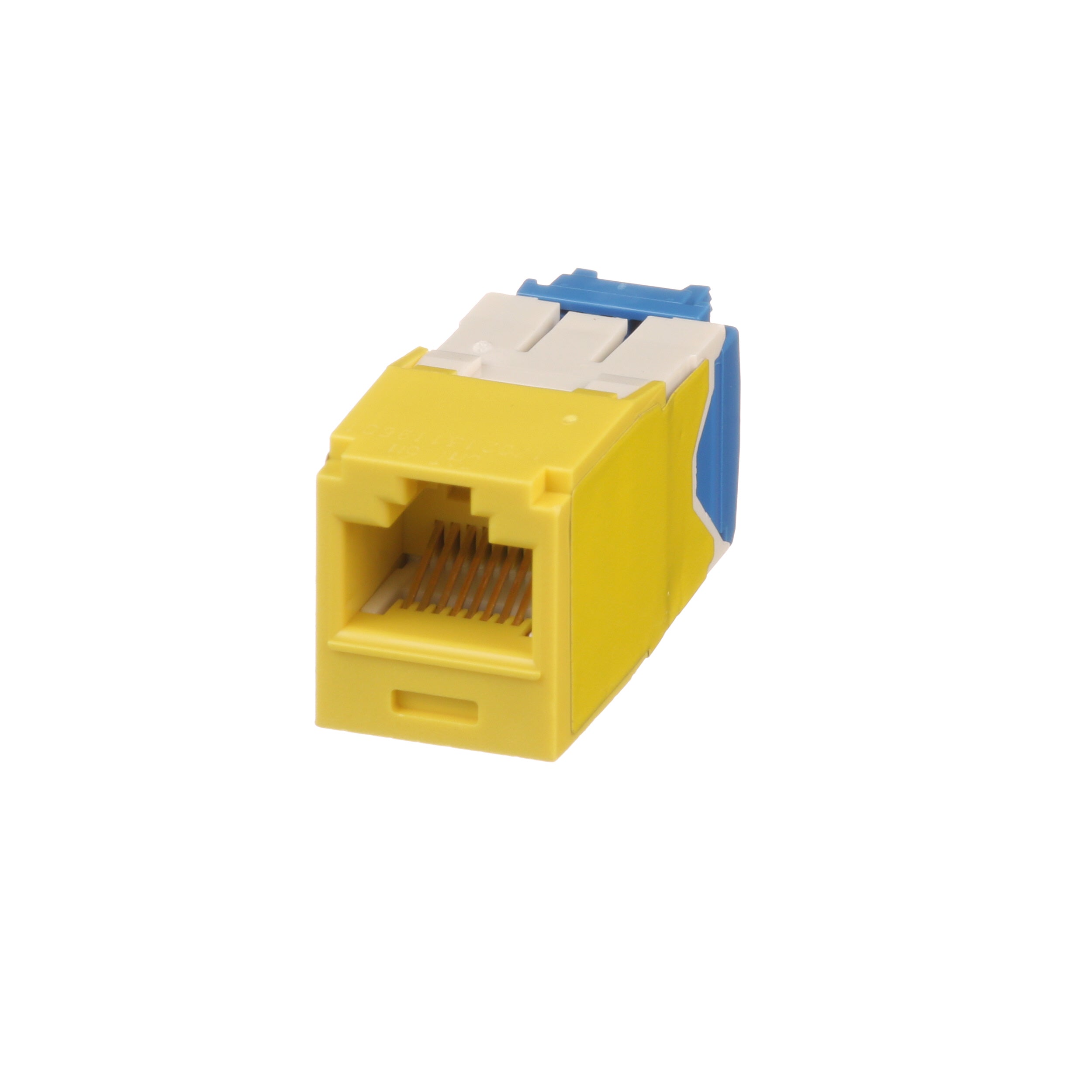

Panduit CJ6X88TGYL PAN MINI-COM TX6 10GIG JACK MODULE

Product Description

Panduit 10Gig PanNet TX6A Jack Module, model CJ6X88TGYL, is designed for unshielded applications. This unit features eight positions and eight wires in a universal TG style. The Cat 6A RJ45 Mini-Com module accommodates a single port and is made from ABS and polycarbonate materials. Its compact dimensions are zero point six three inches wide by one point five inches deep and zero point seven one inches high.

• TG style termination eliminates the need for a tool.
• Compatible with Mini-Com shielded modular patch panels.
• Ideal for high-density installations.

Product Highlights

This jack module is designed for flexibility and efficiency in networking environments. It excels in applications requiring minimal depth for installation while maintaining superior performance standards.

Product Information

Standard Information

• Application: For unshielded applications
• Color: Yellow

Technical Specifications

• Dimensions: 0.63 in W x 1.5 in D x 0.71 in H
• Includes: Termination Tool
• Material: ABS/Polycarbonate
• Module Type: Cat 6A RJ45/Mini-Com
• Standards/Approvals: ANSI/TIA-568-C.2/Class EA, ANSI/TIA-568-C.2/1096-A, ARRA Compliant, Buy American Act Compliant, FCC Certified, IEC 60603-7, RoHS Compliant, T568A/T568B, UL File No. 1863/2043
• Manufacturer Part Number: CJ6X88TGYL
• Type: 8-Position 8-Wire Universal TG Style Unshielded
