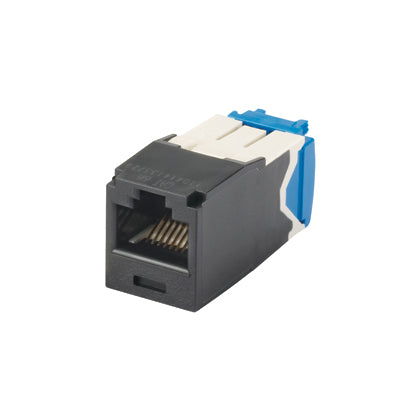

Panduit CJ6X88TGBL 10Gig PanNet TX6A Jack Module 8-Position 1 Port

Product Description

The Panduit CJ6X88TGBL is a 10Gig PanNet TX6A jack module designed for use in high-performance networking applications. This module features eight positions and can support unshielded cabling solutions. It is suitable for faceplate or panel mounting and comes in a black finish. The jack module is compatible with components of the TX6A and TX6A-SD systems. Additionally, it is made from durable ABS and polycarbonate materials, ensuring longevity and reliability in various settings.

• Compatible with TX6A and TX6A-SD cabling systems.
• Features integrated spring shutter to protect against dust.
• Supports high-density applications with superior alien crosstalk performance.

Product Highlights

This module facilitates advanced data transfer for unshielded applications and is marked for quality control traceability. The design allows for both left and right side cable terminations, optimizing installation in limited spaces.

Product Information

Standard Information

• Manufacturer: Panduit
• MPN: CJ6X88TGBL

Technical Specifications

• Type: 8-Position 8-Wire TG Style Universal
• Module Type: Cat 6A RJ45/Mini-Com
• Material: ABS/Polycarbonate
• Color: Black
• Mounting Type: Faceplate/Panel
• Number of Ports: 1
• Dimensions: 0.63 in W x 1.5 in D x 0.71 in H
• Standards: ANSI/TIA 1096-A, ARRA Compliant, FCC Approved, RoHS Compliant
