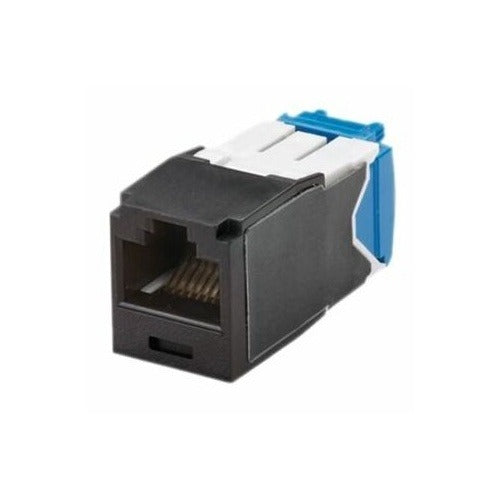

Panduit CJ6X88TGBL-24 Cat 6A Utp Mini-com Module

Product Description

The PANDUIT CJ6X88TGBL-24 is a Cat 6A UTP keystone-style Mini-Com module designed for high-density structured cabling installations. It terminates unshielded twisted-pair horizontal cabling at the work area outlet, patch panel, or consolidation point and supports 10-Gigabit Ethernet performance across the full 500 MHz bandwidth specified by TIA-568-C.2 for Augmented Category 6. Network installers and low-voltage cabling technicians typically deploy this module in commercial and enterprise environments where port density and long-term channel performance are priorities.

This module fits into any PANDUIT Mini-Com compatible faceplate, surface-mount box, patch panel, or modular furniture feed-through. It is suited for new structured cabling runs and retrofit upgrades in office, data center, and campus environments. The Cat 6A rating makes it appropriate for applications demanding 10GBase-T over full 100-meter channels, as well as backward-compatible installations running Cat 5e or Cat 6 equipment.

Key Features

• Cat 6A performance rated to 500 MHz, supporting 10-Gigabit Ethernet over 100-meter UTP channels
• UTP design — no shielding required, simplifying termination and reducing material cost
• Mini-Com modular form factor fits PANDUIT-compatible faceplates, patch panels, and surface-mount boxes
• Sold as a single unit (EA), allowing flexible quantity purchasing per project need

Compatibility

Designed as an OEM-style replacement and new-installation component for PANDUIT Mini-Com compatible outlets, patch panels, and modular furniture systems accepting standard Mini-Com keystone modules.

Installation Notes

Installation is typically performed by a licensed low-voltage cabling technician in accordance with TIA-568 structured cabling standards. De-energize any powered outlets or PoE switches connected to the channel before terminating. Use a 110-style punch-down tool for IDC termination and avoid untwisting pairs more than 0.5 inches at the termination point to maintain Cat 6A channel performance. Verify end-to-end channel performance with a Cat 6A-rated field tester after installation.
