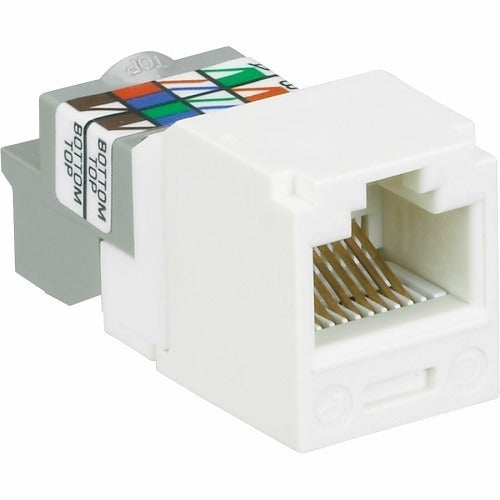

Panduit CJ688TPRD Mini-com Cat 6 Utp Jack Module

Product Description

The PANDUIT CJ688TPRD is a Mini-Com modular jack insert rated for Category 6 unshielded twisted pair (UTP) cabling. It seats into any standard Mini-Com faceplate or surface-mount housing and provides a keyed RJ45 interface for structured data network wiring. The module delivers the signal performance and physical termination integrity expected of Cat 6 infrastructure. It is sold as a single unit and is installed by low-voltage technicians and network cabling contractors during new construction, renovation, and system-upgrade projects.

This jack module is suited for horizontal cabling runs in commercial and residential structured wiring systems where Cat 6 UTP performance is required. Typical installations include office workstations, data closet patch fields, and any location where a Mini-Com faceplate or modular furniture adapter is already in use. The single-unit format allows targeted replacement of damaged or upgraded ports without disturbing neighboring modules in a populated faceplate.

Key Features

• Category 6 UTP rating supports Gigabit Ethernet and standard 10/100 network applications
• Mini-Com form factor fits PANDUIT Mini-Com faceplates and compatible surface-mount housings
• RJ45 eight-position eight-conductor (8P8C) interface for standard patch cord connectivity
• Single-unit packaging allows individual port replacement or phased installation
• Designed for use by low-voltage and structured cabling professionals

Compatibility

Designed as an OEM-style replacement or new-installation module for structured cabling systems using PANDUIT Mini-Com faceplates and modular housing accessories that accept standard Mini-Com insert modules.

Installation Notes

Installation should be performed by a qualified low-voltage technician following TIA-568 cabling standards and applicable local codes. De-energize any active network equipment connected to the circuit before terminating or replacing the module. Use an appropriate punch-down tool rated for Cat 6 terminations to ensure proper conductor seating and to avoid exceeding the cable's minimum bend radius. Avoid untwisting conductors beyond the maximum allowed by the applicable cabling standard at the termination point.
