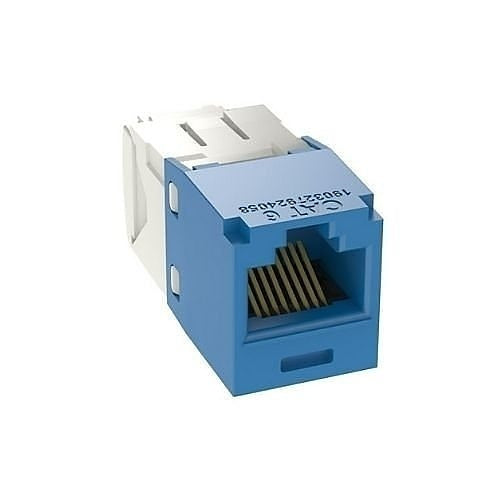

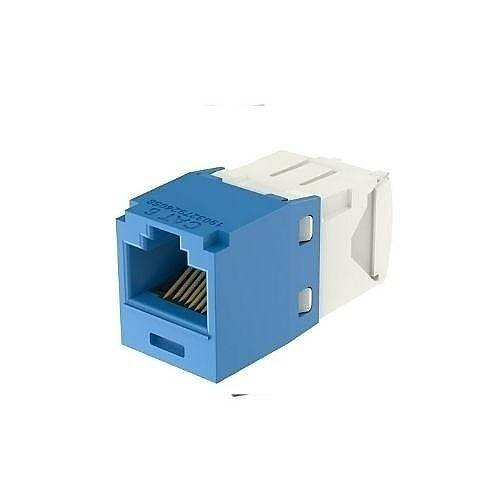

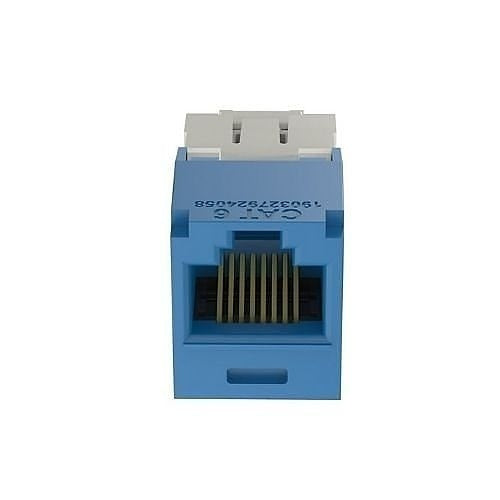

Panduit CJ688TGBU Mini-Com UTP RJ45 Cat TG Jack Module, Blue

Product Description

The Panduit CJ688TGBU Mini-Com UTP RJ45 Cat TG Jack Module is a reliable solution for terminating four-pair, twenty-two to twenty-six AWG twisted pair cable. This jack module is built to high standards, with a design that allows for easy installation without the need for termination tools. Each module includes unique serialization for traceability and is compatible with Mini-Com modular patch panels and faceplates.

• Standard RJ45 connector
• TG style termination eliminates tool requirement
• Constructed from durable polycarbonate

Product Highlights

This module provides essential connectivity in various applications while ensuring compliance with industry standards.

Product Information

Standard Information

• Brand: Panduit
• Manufacturer Part Number: CJ688TGBU

Technical Specifications

• Application: 10BASE-T Ethernet, 100BASE-T Fast Ethernet, 1000BASE-T Gigabit Ethernet, Voice Over Internet Protocol
• Color: Blue
• Dimensions: 0.62 inches W x 1.5 inches D x 0.71 inches H
• Material: ABS/Polycarbonate
• Module Type: Cat 6 RJ45/Mini-Com Module
• Mounting Type: Surface
• Standards/Approvals: ANSI/TIA 568-C.2, RoHS Compliant, UL 1863
• Number of Contacts: 10
