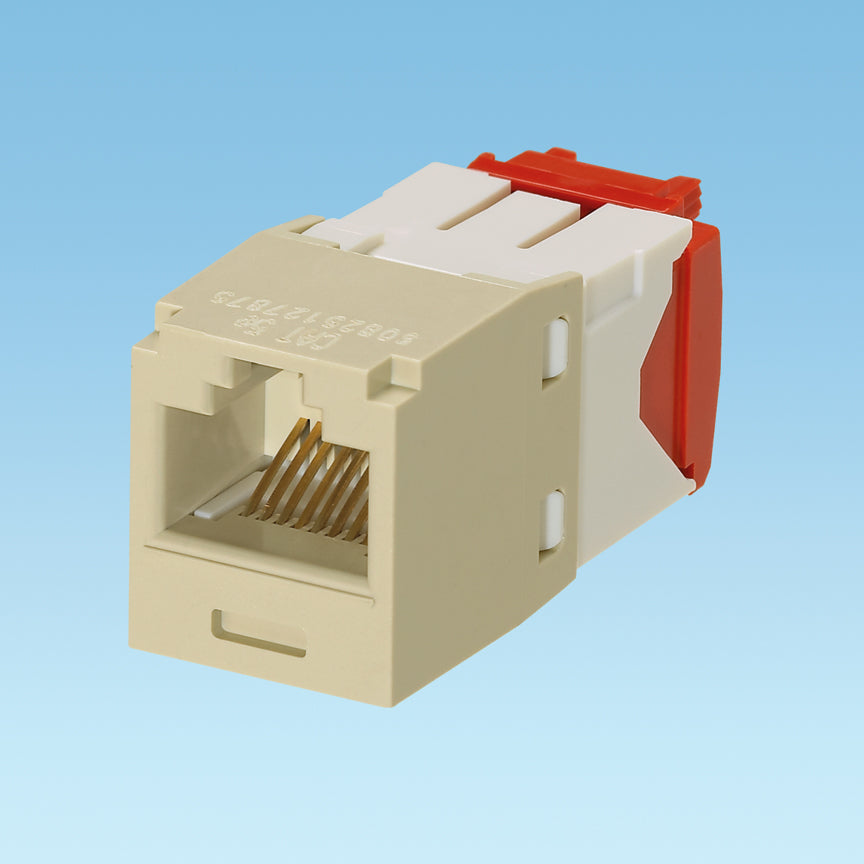

Panduit CJ5E88TGEI PAN MINICOM CAT5E JACK MODULE

Product Description

Panduit CJ5E88TGEI is a mini-jack module designed for structured cabling in networking applications. This module is part of the PanNet family, and it serves as a surface mount solution. It supports Cat 5e standards and is built with ABS plastic for durability.

• Compatible with 10BASE-T, 100BASE-T, and 1000BASE-T Ethernet
• Features enhanced Giga-TX technology for optimized performance
• Easy installation with snap-in design for various faceplates

Product Highlights

The CJ5E88TGEI facilitates secure access to data ports while keeping them protected from dust and debris. Its innovative design supports efficient installation and cabling management.

Product Information

Standard Information

• Manufacturer: Panduit
• Manufacturer Part Number: CJ5E88TGEI

Technical Specifications

• Application: 10BASE-T, 100BASE-T, 1000BASE-T, ATM, Voice/Data Systems, VoIP
• Color: Electric Ivory
• Dimensions: 0.62 inches W x 1.5 inches D x 0.71 inches H
• Material: ABS/Plastic
• Module Type: Cat 5e RJ45/Mini-Com
• Mounting Type: Surface
• Standards/Approvals: ANSI/TIA 568-C.2, RoHS, UL 1863, UL 2043
• Type: 1-Slot 8-Position 8-Wire Universal TG Style Unshielded
