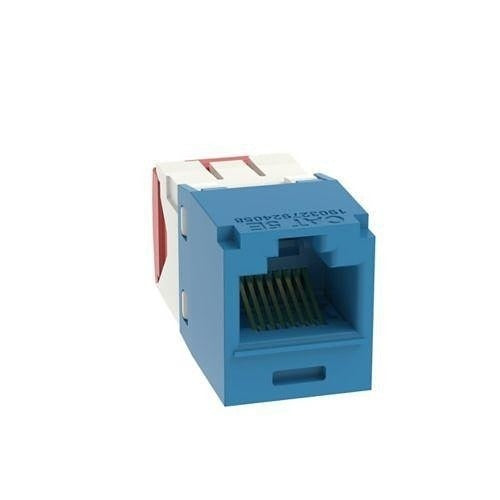

Panduit CJ5E88TGBU-24 Cat 5e Utp Keystone Module

Product Description

The PANDUIT CJ5E88TGBU-24 is a Mini-Com keystone jack module rated for Category 5e unshielded twisted pair (UTP) structured cabling. It snaps into any Mini-Com compatible faceplate, surface mount box, or patch panel to provide a field-termination point for horizontal UTP cable runs. The module delivers reliable Cat 5e performance, supporting data transmission up to 100 MHz, and is suited for both new installations and retrofit projects. Network technicians and low-voltage cabling contractors install this type of module as part of a complete structured cabling system in commercial and residential applications.

This module is used in horizontal cabling installations where Cat 5e performance is required for data and voice applications. Typical install scenarios include office networks, data closets, and wall outlet drops in commercial buildings or multi-unit residential structures. It is sold individually, allowing technicians to stock and deploy modules as needed across modular faceplate systems.

Key Features

• Category 5e rated for data and voice structured cabling up to 100 MHz
• UTP (unshielded twisted pair) termination for standard horizontal cable runs
• Mini-Com form factor snaps into compatible faceplates, patch panels, and surface mount boxes
• Individual unit packaging allows flexible field inventory management
• Designed for use in both commercial and residential low-voltage cabling systems

Compatibility

Designed as an OEM-style replacement and standard installation module for use with PANDUIT Mini-Com compatible faceplates, patch panels, and surface mount enclosures accepting Cat 5e UTP keystone modules.

Installation Notes

Installation is performed by licensed low-voltage or data cabling technicians following TIA-568 structured cabling standards. De-energize any adjacent active equipment before terminating cable runs. Use a 110-style punch-down tool for IDC termination and follow T568A or T568B wiring standards as specified by the project design. Avoid untwisting wire pairs more than 0.5 inches at the termination point to maintain Cat 5e performance.
