Panduit CHD15HDSCWHY 15-pin Db Connector Insert

Product Description

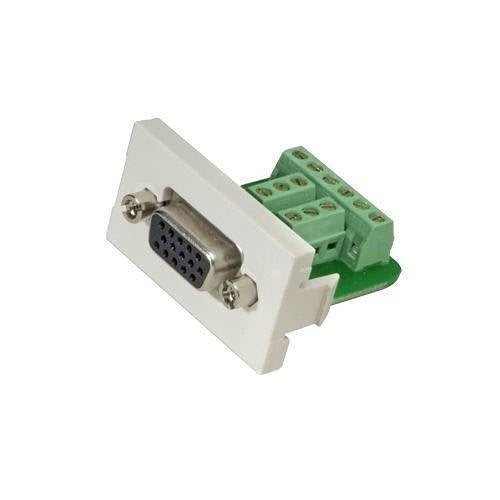

The PANDUIT CHD15HDSCWHY is a 1/3-size insert designed for 15-pin DB-style connectors. This component serves as the receptacle insert within a DB15 connector housing, providing the electrical interface points needed to terminate signal or data cables. It is used in low-voltage wiring applications where modular connector assemblies are required. Electricians and low-voltage technicians install this type of insert when building or servicing panel-mount or bulkhead connector assemblies. The 1/3 insert format means it occupies one-third of a standard modular connector frame, allowing multiple inserts to be combined within a single housing for organized multi-circuit wiring.

This insert is suited for commercial and light industrial installations where DB15 connector configurations are used in control panels, communication equipment, or instrumentation wiring. It is appropriate for any application requiring a field-terminable 15-pin D-sub interface. The modular design supports flexible panel layouts where different insert types can be combined in a shared frame. It is sold as a single unit.

Key Features

• 1/3-size modular insert format for use in compatible multi-insert connector frames
• 15-pin DB-style contact configuration for D-sub signal or control wiring
• Designed for field assembly and termination in panel-mount applications
• Single unit per package for precise quantity ordering

Compatibility

Designed as an OEM-style modular insert for use with compatible PANDUIT 1/3-size DB connector housings and frames that accept 15-pin D-sub inserts.

Installation Notes

Installation is typically performed by licensed electricians or low-voltage technicians working on control or communication panels. De-energize all circuits before handling connector assemblies. Verify that the housing frame is compatible with the 1/3-size insert format before installation. Follow applicable NEC guidelines for low-voltage wiring and termination practices.
