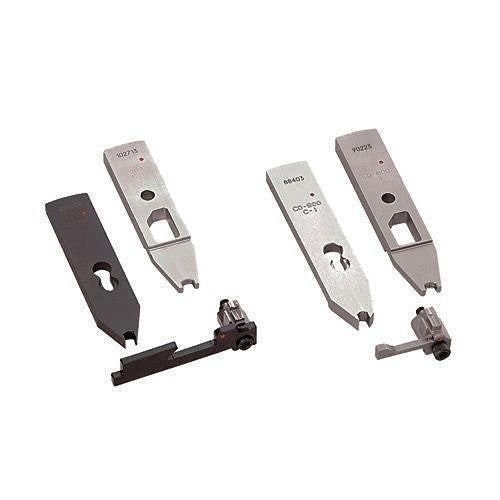

Panduit CD9-17B Die Insert for CA9 Crimping Tool

Product Description

The PANDUIT CD9-17B is a die insert designed for use with the CA9 crimping tool. Die inserts are the interchangeable cutting or forming components that determine the crimp profile and conductor range a tool can handle. This insert seats directly into the CA9 tool head, allowing electricians and data-com installers to achieve consistent, repeatable crimps on compatible terminals and connectors. Swapping die inserts extends the utility of a single tool across multiple conductor sizes or connector types without requiring a separate tool for each application.

This die insert is suited for bench or field use in commercial and industrial electrical work, panel wiring, and structured cabling installations. Electricians, low-voltage technicians, and wire harness assemblers are the primary trades that work with interchangeable die systems. The CD9-17B is sold as a single unit and is intended as either a replacement for a worn insert or as an add-on die to expand the crimping range of an existing CA9 tool.

Key Features

• Designed specifically for use with the PANDUIT CA9 crimping tool
• Interchangeable insert design allows a single tool to cover multiple applications
• Sold individually, making it practical as a direct replacement for worn or damaged dies
• Enables consistent crimp geometry for reliable electrical connections

Compatibility

Designed for use with the PANDUIT CA9 crimping tool as stated by the manufacturer.

Installation Notes

Die insert installation and removal should be performed with the CA9 tool fully closed and any stored energy released per the tool manufacturer's instructions. Electricians and low-voltage technicians should confirm the insert is fully seated and locked before applying a crimp. Inspect the insert for wear or deformation periodically, as a damaged die can compromise crimp integrity and connection reliability. Follow NFPA 70 (NEC) requirements for termination methods applicable to the conductor and connector type being crimped.
