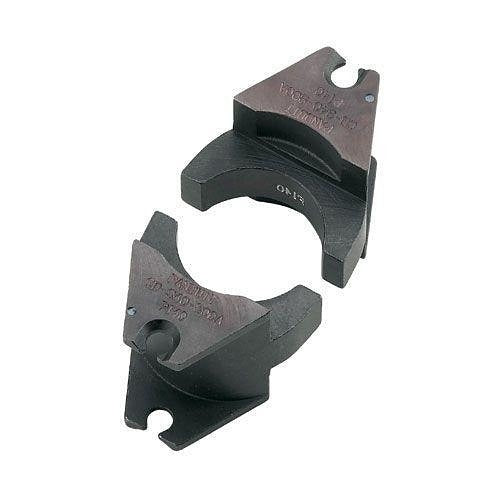

Panduit CD-940-1500 Crimp Die for CT-940CH 1500 Mcm

Product Description

The PANDUIT CD-940-1500 is a crimp die designed for use with the CT-940CH crimping tool. It produces consistent, reliable crimps on 1500 MCM conductors in high-capacity electrical installations. Crimp dies are precision-machined inserts that index into compatible crimping tools to deliver the correct die geometry and compression profile for a given conductor size. Licensed electricians and electrical contractors working on large commercial or industrial power distribution systems are the primary installers of this component.

This crimp die is suited for high-ampacity conductor terminations found in commercial, industrial, and utility-grade electrical work. Applications include large feeder and service entrance conductors where 1500 MCM cable lugs and connectors must be terminated with exact dimensional control. It is sold as a single die unit and is intended for use exclusively with the CT-940CH hydraulic crimping tool.

Key Features

• Designed specifically for 1500 MCM conductor crimping
• Indexes into the CT-940CH hydraulic crimping tool
• Delivers consistent die geometry for repeatable compression crimps
• Sold as a single unit for targeted die replacement or expansion

Compatibility

Compatible with the PANDUIT CT-940CH hydraulic crimping tool for 1500 MCM conductors, as specified in the product data.

Installation Notes

Crimp dies are installed and serviced by licensed electricians following applicable NEC requirements for conductor terminations. De-energize and lock out the circuit before terminating any conductors. Verify the die is fully seated and locked in the tool head before applying compression force. Inspect the die for wear or deformation before each use and replace if damage is observed.
