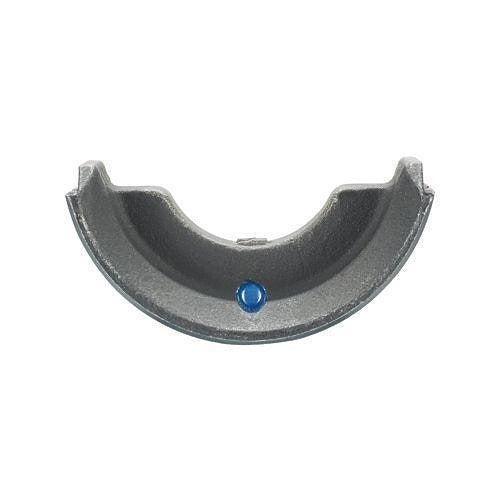

Panduit CD-920-4NEST Nest Die for Cdi Crimp Tool

Product Description

The PANDUIT CD-920-4NEST is a nest die designed for use with the Panduit CDI series crimp tools. Nest dies are the interchangeable jaw inserts that determine connector geometry and crimp profile during termination work. This die seats into compatible CDI tool frames and delivers consistent, repeatable crimps on the appropriate connector type. Electricians and data-comm installers use nest dies to adapt a single crimp tool platform to multiple connector styles without purchasing separate dedicated tools. Sold as a single unit, the CD-920-4NEST is an individual replacement or supplemental die for shops and field technicians who already run Panduit CDI tooling.

The CD-920-4NEST is suited for electrical and low-voltage wiring applications where precise termination of connectors is required. It is typically used in commercial and industrial environments by licensed electricians and structured-cabling installers working with Panduit CDI crimp tool frames. When a worn or damaged nest die reduces crimp quality or consistency, this replacement restores the tool to proper operating condition without requiring a full tool replacement.

Key Features

• Interchangeable nest die insert compatible with Panduit CDI crimp tool series
• Enables consistent, repeatable connector crimps when properly seated in the tool frame
• Sold individually, allowing targeted replacement of worn die components
• Designed as an OEM-style replacement to maintain original crimp geometry specifications

Compatibility

Designed for use with Panduit CDI series crimp tools as stated by the manufacturer. Confirm the specific CDI tool model and connector series before ordering to ensure proper die fit and crimp profile.

Installation Notes

Nest die installation and removal should be performed by a qualified electrician or trained low-voltage technician. Ensure the crimp tool is fully unloaded and the ratchet mechanism is in the open position before swapping die sets. Follow the CDI tool manufacturer instructions for die seating and locking to prevent misalignment during crimping operations. Verify the die is fully seated and secured before returning the tool to service.
