Product Description

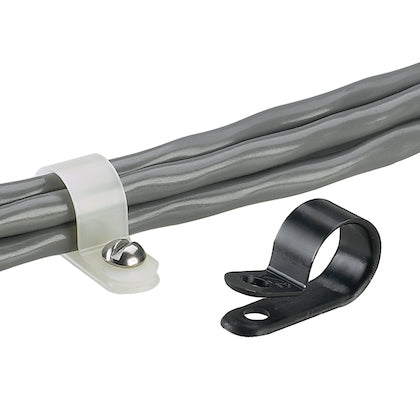

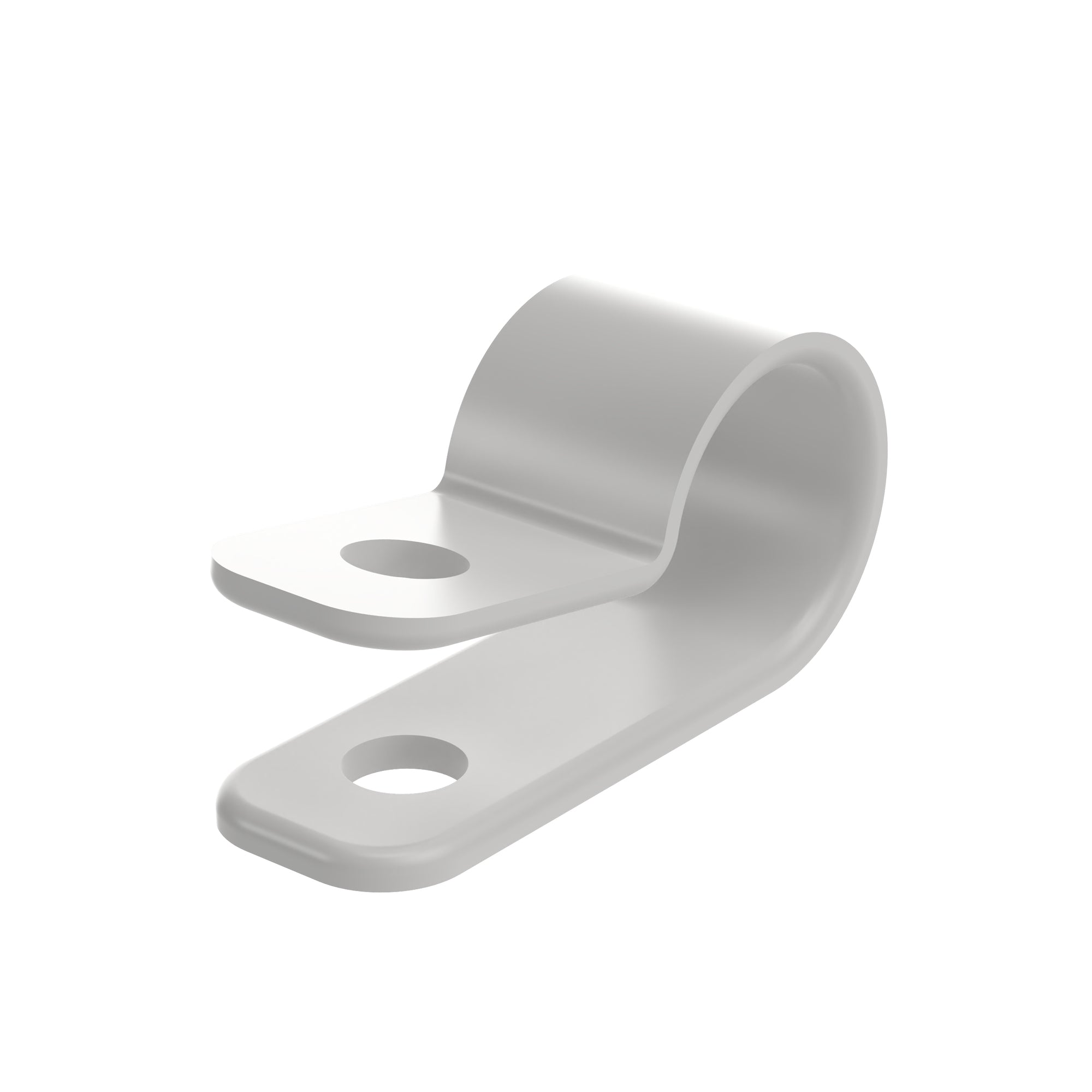

The Panduit CCH38-S10-C is a fixed diameter cable clamp made from durable nylon six point six. This clamp is designed for easy installation and mounting with a #10 screw, suitable for both indoor and outdoor applications. It is used where metal cushion clamps are typically needed, preventing wire bundles from rotating while ensuring a secure grip on hoses due to its integrated ribs.
- Fixed diameter design prevents rotation of wire bundles.
- Easy to install using a #10 screw (M5).
- Compatible with a variety of environments.
Product Highlights
The Panduit CCH38-S10-C is engineered for durability and efficiency, making it a reliable choice for cable management.
Product Information
Standard Information
-
Catalog Number: CCH38-S10-C
-
Manufacturer: Panduit
Technical Specifications
-
Material: Nylon 6.6
-
Conduit Size: 0.38 inches
-
Bundle Diameter: 0.38 inches
-
Bundle Offset: 0.53 inches
-
Temperature Rating: -76 to 185 degrees Fahrenheit
-
Country of Origin: United States
-
Standards/Approvals: UL 94 V-2 Flammability Rated, RoHS Compliant
