Panduit C6WH6 Cover Duct PVC 6 inches X 6 feet

Product Description

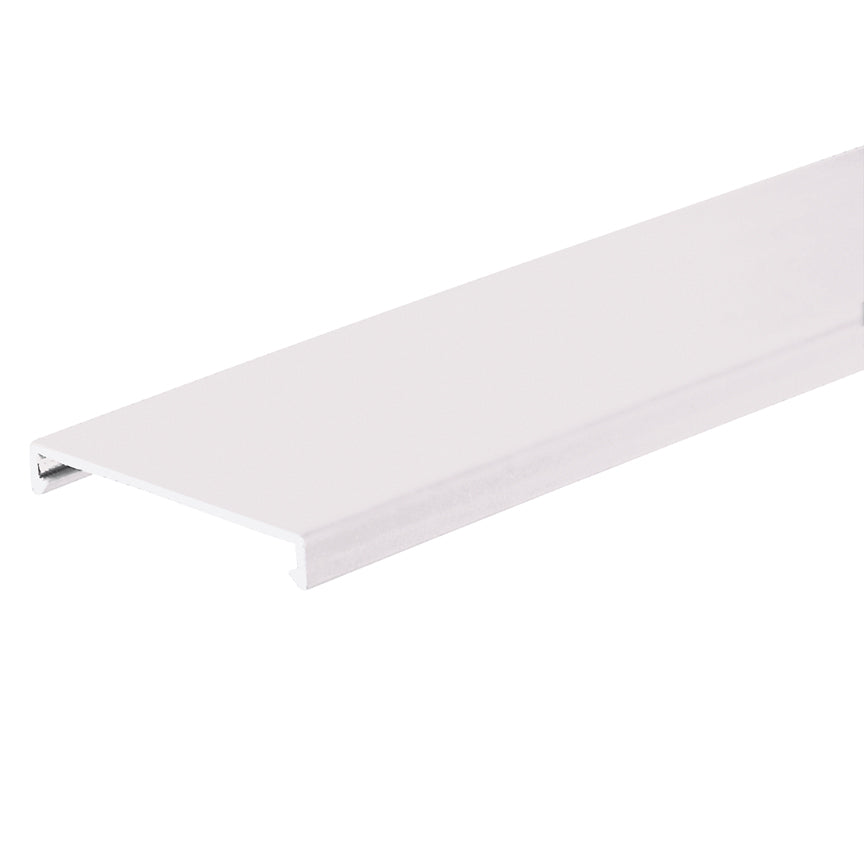

The PANDUIT C6WH6 cover is a wire duct designed for use with Panduit Duct - Slotted and Solid - Types F6X, FS6X and G6X. This PVC flush wiring duct cover features a non-slip liner to prevent cover slide and is easy to install and remove. Suitable for indoor applications.

• Non-slip liner to prevent cover slide
• Easy to install and remove
• General-purpose lead-free PVC material suitable for indoor applications

Product Highlights

The C6WH6 offers a UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C).

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: C6WH6
• Country of Origin: US - United States

Technical Specifications

• Category: Cables, Wires - Management, Wire Ducts, Raceways, Wire Duct, Raceway Covers
• For Use With/Related Products: Panduit Duct - Slotted and Solid - Types F6X, FS6X and G6X
• Manufacturer: Panduit Corp
• Height: 0.370" (9.40mm)
• Series: PANDUCT Type C
• Width: 6.250" (158.75mm)
• Packaging: Bulk
• Length: 72.000" (182.80mm, 6.00')
• Part Status: Active
• Color: White
• Accessory Type: Cover - Wire Duct, Snap In
• Base Product Number: C6WH
• Application: Cover for Wiring Duct
• Material: PVC
• Mounting Type: Snap-On
• Type: Type C Flush Cover
• Use With: Type G, Type F, Type D and Type FS Duct Base
• Color Family: White
• Dimensions: 6.00 in W X 72.00 in L
• Manufacturer Part Number: C6WH6
• Suitable For Use With: Type D, G, F, FS and MC Wiring Duct
• Thickness: 0.08 in
• Standard: UL Recognized; Flammability Ratings: UL94 V-0; CSA Certified; CE Compliant; RoHS Compliant
