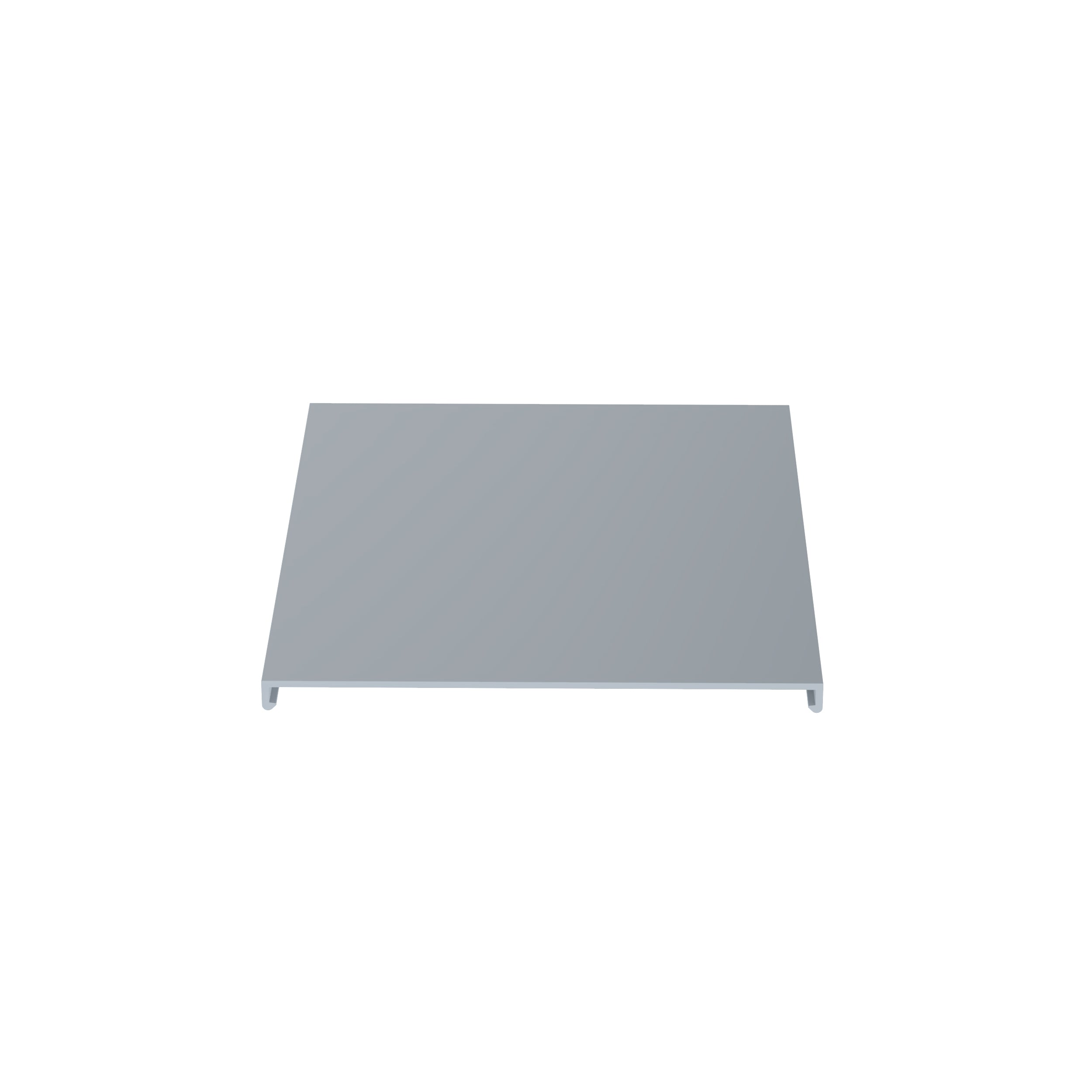

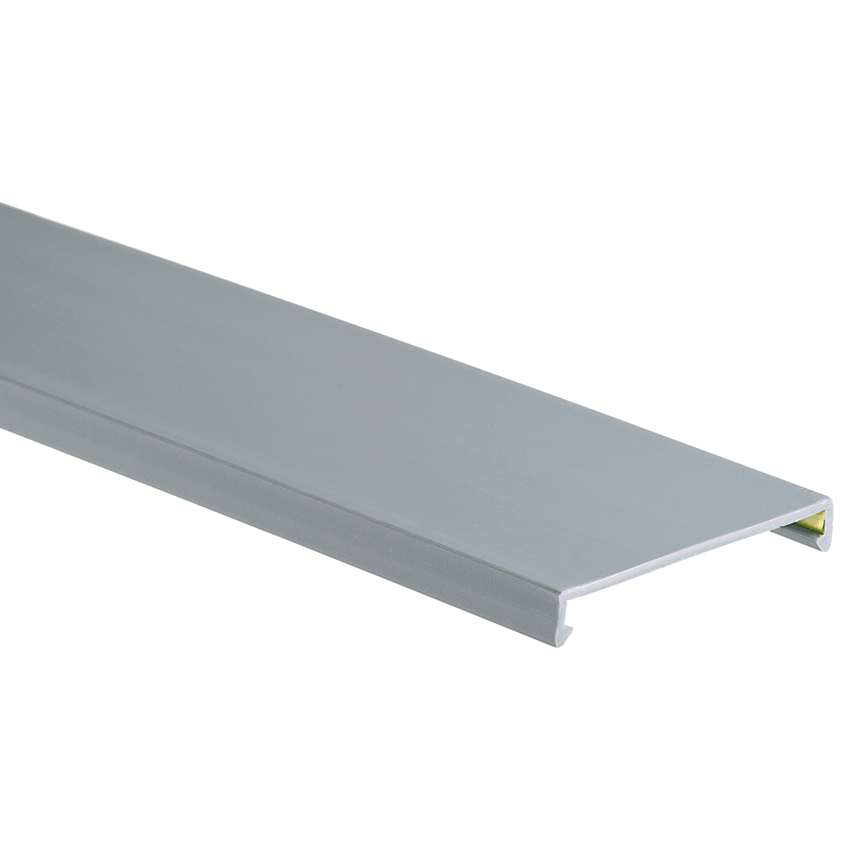

Panduit C6LG6 Duct Cover, 6 in. W x 6 ft.

Product Description

The PANDUIT C6LG6 is a wiring duct cover designed to protect wires, improve aesthetics, and provide greater wire capacity. Constructed from PVC, this light gray cover features a snap-on mounting for easy installation and removal. It is suitable for use with Type D, G, F, FS, and MC wiring ducts.

• Lead-free cover protects wires
• Improves aesthetics
• Provides greater wire capacity

Product Highlights

The PANDUIT C6LG6 duct cover is RoHS compliant and UL Listed.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: C6LG6
• Country of Origin: US - United States

Technical Specifications

• Manufacturer Part Number: C6LG6
• Application: For wiring duct
• Color: Light Gray
• Height: 0.37 in
• Length: 6 ft
• Material: PVC
• Mounting Type: Snap-On
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CE Marking|CSA Certified|RoHS Compliant|UL Listed|UL 94 V-0 Flammability Rated
• Suitable For Use With: Type D, G, F, FS and MC Wiring Duct
• Type: Type C Flush
• Width: 6-1/4 in
• Brand: Panduct
• Standard: UL Recognized; Flammability Ratings: UL94 V-0; CSA Certified; CE Compliant; RoHS Compliant
• Use With: Type G, Type F, Type D and Type FS Duct Base
• Color Family: Gray
• Overall Width: 158.8 mm, 6.25 in
• Overall Height: 9.4 mm
• Overall Length: 1.8 m
• Product: Wiring Duct Covers
• Compatible Duct Width: 152.4 mm, 6 in
