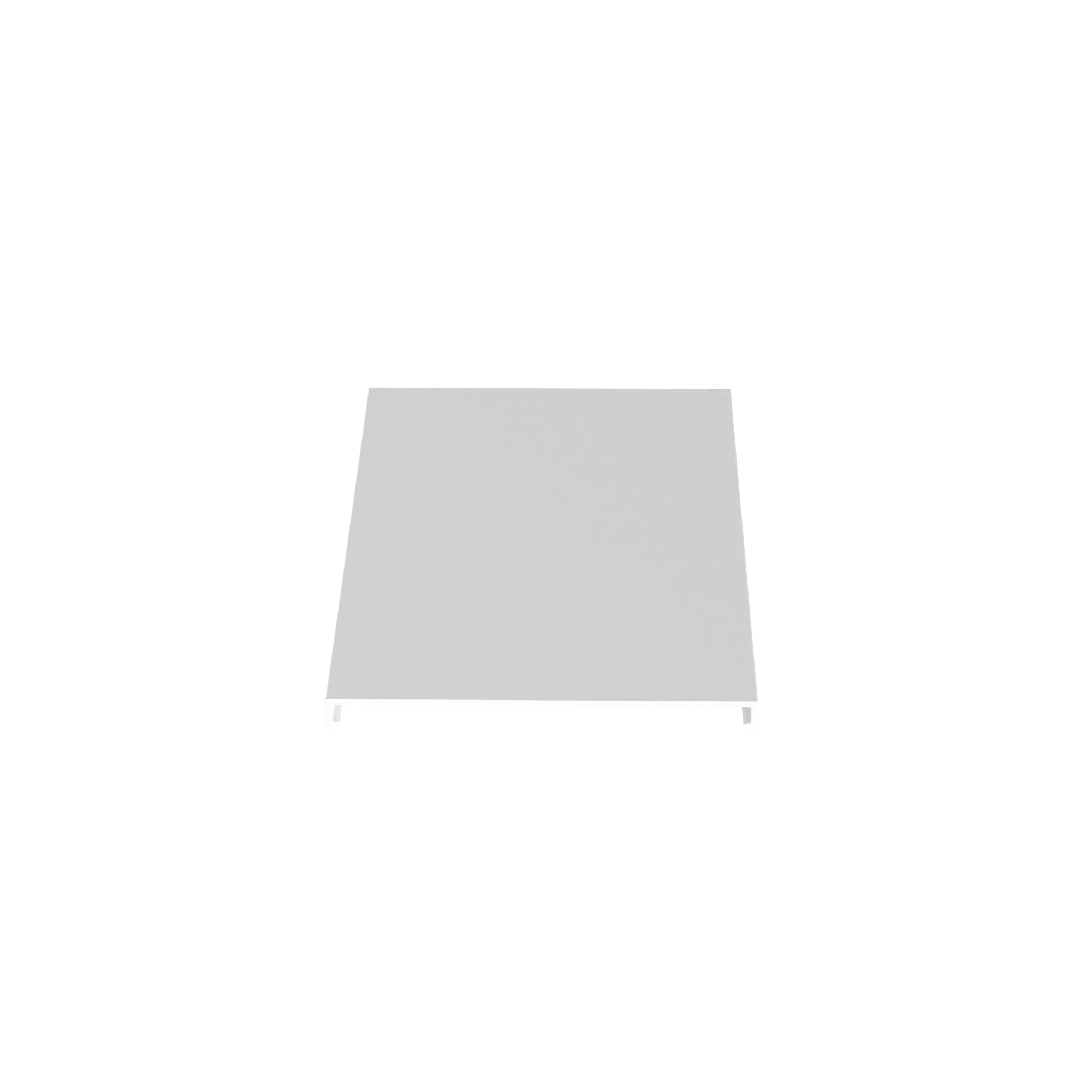

Panduit C4WH6 Cable Duct Cover (4 in x 6 ft)

Product Description

Panduit C4WH6 is a PVC snap-on flush wiring duct cover designed for 4-inch Panduct systems, measuring 72 in (6 ft) long and providing a secure, flush finish for cable runs. The cover uses a non-slip liner to inhibit movement and is made from lead-free PVC with UL94 V-0 flammability rating and a continuous-use temperature up to 50 C. It is compatible with multiple Panduct flush duct bases.

• Lead-free PVC construction with UL94 V-0 flammability rating and continuous-use temperature up to 50 C
• Snap-on mounting and non-slip liner for secure, easily removable installation on 4 in wiring duct
• Overall dimensions approximately 0.37 in H x 4 in W x 72 in L (6 ft); compatible with Panduct Type C and flush duct bases (Type D, F, FS, G)

Product Highlights

PVC snap-on flush wiring duct cover; 4 in x 6 ft; non-slip liner; UL94 V-0; compatible with Panduct flush duct bases

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: C4WH6
• Country of Origin: United States

Technical Specifications

• Brand: Panduit
• Manufacturer: PANDUIT CORP
• Manufacturer Part Number: C4WH6
• Product Name: Cable duct cover (flush wiring duct cover)
• Product Type: Flush wiring duct cover / cable organizer
• Material: PVC (lead-free)
• Mounting Type: Snap-On
• Length: 6 ft (72 in) / 1.83 m / 1828 mm
• Width: 4 in (101.6 mm)
• Overall Height: 0.37 in (9.4 mm)
• Flammability Rating: UL94 V-0
• Maximum Continuous Temperature: 50 C (122 F)
• Compatibility: Compatible with Panduct Type C and flush duct bases Type D, F, FS, G
• Standards and Certifications: UL recognized; CSA certified; CE compliant; RoHS compliant; Buy American Act / ARRA compliant
• Country of Origin: United States
• Packaged Quantity: 1 (retail)
• UPC: 074983231423
