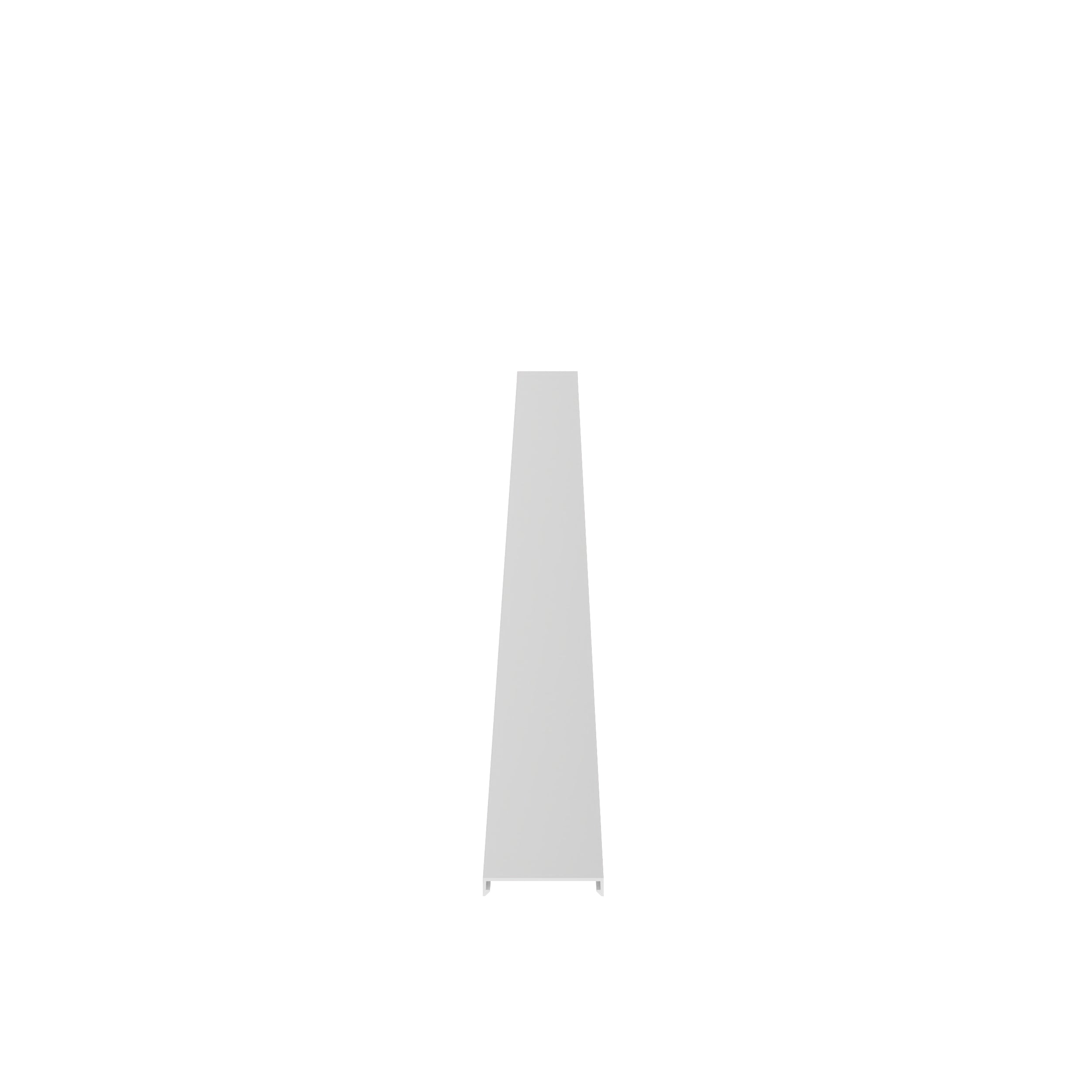

Panduit C2WH6 cover duct 2 inches PVC

Product Description

The Panduit C2WH6 is a cover for wiring ducts. This snap-in cover protects wires, improves aesthetics, and provides greater wire capacity. It features a non-slip liner to prevent cover slide and is easy to install and remove. The general-purpose lead-free PVC material is suitable for indoor applications.

• Non-slip liner to prevent cover slide
• Easy to install and remove
• General-purpose lead-free PVC material

Product Highlights

The Panduit C2WH6 cover is designed for use with Panduit duct types D2X, E2X, F2X, FS2X, G2X and S2X.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: C2WH6
• Country of Origin: US - United States

Technical Specifications

• Brand: Panduit
• MPN: C2WH6
• Category: Cables, Wires - Management, Wire Ducts, Raceways, Wire Duct, Raceway Covers
• For Use With/Related Products: Panduit Duct - Slotted, Solid and Round Hole - Types D2X, E2X, F2X, FS2X, G2X and S2X
• Manufacturer: Panduit Corp
• Height: 0.350" (8.89mm)
• Series: PANDUCT Type C
• Width: 2.250" (57.15mm)
• Packaging: Bulk
• Length: 72.000" (182.80mm, 6.00')
• Part Status: Active
• Color: White
• Accessory Type: Cover - Wire Duct, Snap In
• Base Product Number: C2WH
• Application: Cover for Wiring Duct
• Material: PVC
• Mounting Type: Snap-On
• Type: Type C Flush Cover
• Use With: Type G, Type F, Type D and Type FS Duct Base; PanelMax Corner Wiring Duct
• Color Family: White
• Overall Length: 6 ft
• Standards Met: UL Recognized; CE Compliant; CSA Certified; RoHS Compliant; Flammability Rating of UL94V-0 after protective film is removed
