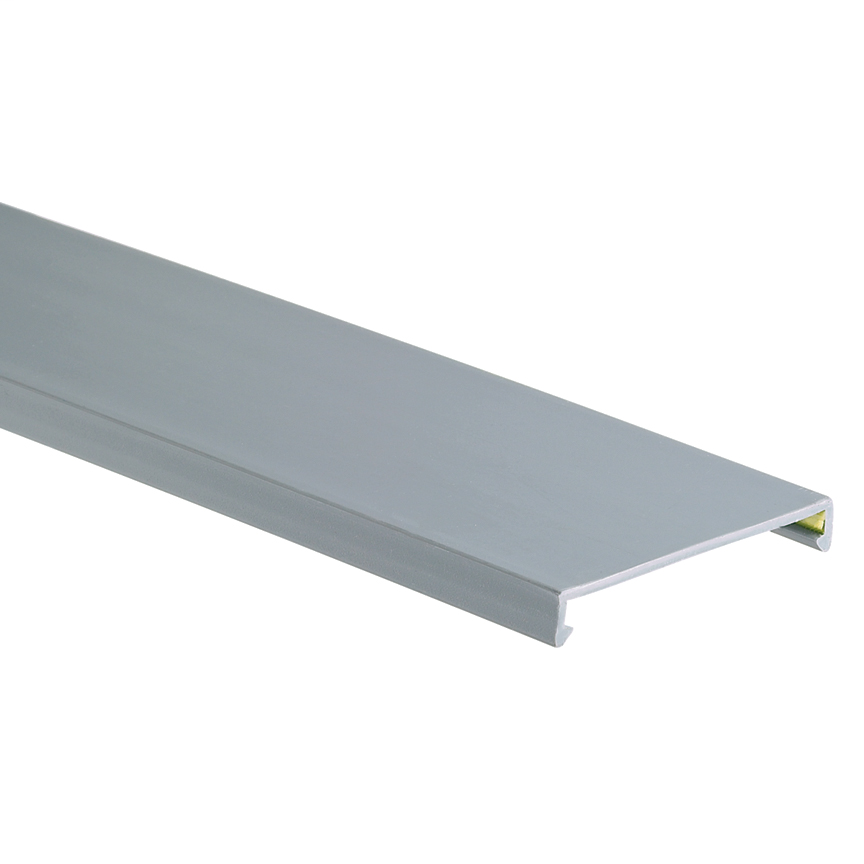

Panduit C.5LG6 cover duct .5 inches pvc ltgray 6 feet

Product Description

The PANDUIT C.5LG6 cover is a wire duct designed to snap in place. Constructed from general-purpose lead-free PVC, it is suitable for indoor applications. The cover features a non-slip liner to prevent sliding and is easy to install and remove. It has a UL 94 flame class of V-0 and a UL-recognized continuous-use temperature up to 122°F (50°C).

• Non-slip liner to prevent cover slide
• Easy to install and remove
• General-purpose lead-free PVC material suitable for indoor applications

Product Highlights

The PANDUIT C.5LG6 is a durable PVC duct cover that provides a solution for organizing wires.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: C.5LG6
• Country of Origin: US - United States

Technical Specifications

• Category: Cables, Wires - Management, Wire Ducts, Raceways, Wire Duct, Raceway Covers
• For Use With/Related Products: Panduit Duct - Slotted and Solid - Types E.5X, F.5X, FS.5X, G.5X and S.5X
• Manufacturer: Panduit Corp
• Height: 0.230" (5.84mm)
• Series: PANDUCT Type C
• Width: 0.690" (17.53mm)
• Packaging: Box
• Length: 72.000" (182.80mm, 6.00')
• Part Status: Active
• Color: Gray, Light
• Accessory Type: Cover - Wire Duct, Snap In
• Base Product Number: C.5LG6
• Application: Cover for Wiring Duct
• Material: PVC
• Mounting Type: Snap-On
• Type: Type C Flush Cover
• Use With: Type G, Type F, Type D and Type FS Duct Base
• Brand: Panduct
• Standard: UL Recognized; Flammability Ratings: UL94 V-0; CSA Certified; CE Compliant; RoHS Compliant
• Applications: Indoor Applications
• TC Connection: Snap-on
• Pkg Qty: 6
• Sub Brand: Panduct
• Overall Length: 6 ft
• Buy American Compliant: Y
• Compatible Duct Width: 12.7 mm, .5 in
