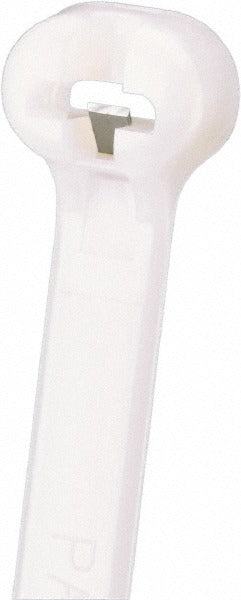

Panduit BT9LH-L Cable Tie 30.7 in 120 Lb Natural Nylon

Product Description

The PANDUIT BT9LH-L is a heavy-duty barbed cable tie designed for high-load bundling applications in electrical, datacom, and industrial installations. Constructed from natural nylon, this tie measures 30.7 inches in overall length and delivers a tensile strength of 120 pounds, making it suitable for securing large cable bundles in demanding environments. The barbed locking mechanism provides a reliable, one-way cinch that resists slippage under sustained tension. Licensed electricians, industrial maintenance technicians, and low-voltage installers commonly deploy this tie where standard-length options fall short.

This cable tie is well-suited for commercial and industrial wire management tasks including panel wiring, conduit bundle organization, and cable tray dressing. Its 9-inch maximum bundle diameter accommodates large conductor groups and multi-cable assemblies typical in commercial electrical rooms, mechanical spaces, and telecommunications closets. The natural color works in standard indoor and protected outdoor environments within its rated temperature range.

Key Features

• 30.7-inch length with a 9-inch maximum bundle diameter for large cable assemblies
• 120 lb tensile strength rated barbed locking head
• Natural nylon construction rated from -76 degrees F to 185 degrees F
• 0.275-inch width and 0.065-inch thickness for consistent strap tension
• CE Certified, CSA Certified, RoHS Compliant, UL Listed (File E56854), UL 62275 Type 2S and 21S Compliant, and MS3367-6-9 rated

Compatibility

Designed as a standard barbed nylon cable tie for use in general electrical, datacom, and industrial wire management applications where a 30.7-inch strap length and 9-inch bundle capacity are required.

Installation Notes

Installation requires no special tools beyond a standard cable tie tensioning and cut-off tool for a flush finish. De-energize or lock out circuits before dressing wire bundles in live panels or enclosures per NFPA 70 (NEC) requirements. Avoid over-tensioning, which can damage conductor insulation on sensitive cables. Do not use this tie in continuous exposure to UV, chemicals, or temperatures outside the rated range without verifying nylon compatibility.
