Panduit bt4s-m0 Dome-top Cable Tie 15.1in Black 1000pk

Product Description

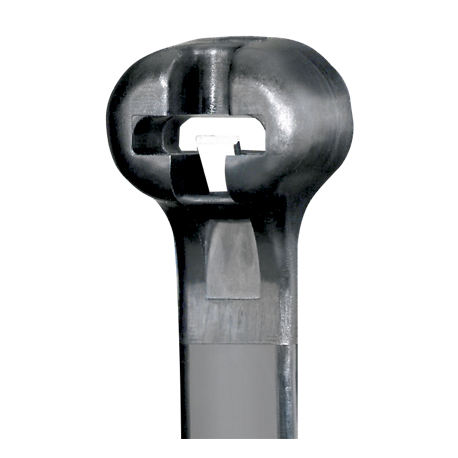

The PANDUIT bt4s-m0 is a dome-top barb-style cable tie built for wire routing, management, and protection applications. Manufactured from weather-resistant nylon 6.6, this tie is engineered to hold up in harsh environments, including exposure to moisture and wide temperature swings. It measures 15.1 inches in length and 0.32 inches in width, placing it in the standard cross-section category. The dome-top barb design allows for secure one-way locking during bundle installation. Electricians, low-voltage technicians, and panel wiring professionals reach for ties in this size class when organizing cable runs in panels, conduit entry points, equipment enclosures, and raceways.

This cable tie is suited for both indoor and outdoor wire management tasks. The nylon 6.6 construction resists UV degradation, chemicals, and moisture, making it appropriate for exterior installations, mechanical rooms, rooftop equipment, and industrial environments. The black color provides UV-inhibiting pigment typically required for outdoor use. Packaged in bulk quantities of 1000 ties per package, the bt4s-m0 is practical for contractors and service shops that install large volumes of wire ties on a regular basis.

Key Features

• Dome-top barb locking design for secure, one-way cable bundle retention
• Weather-resistant nylon 6.6 construction suitable for indoor and outdoor use
• 15.1-inch length with 0.32-inch width standard cross section
• Rated from -60 degrees C to 85 degrees C operating temperature range
• Black color with UV-inhibiting pigment for outdoor applications
• Sold in bulk packages of 1000 ties for high-volume installation work

Compatibility

Designed as a standard cross-section cable tie for general wire routing and management applications across residential, commercial, and industrial electrical and low-voltage installations.

Installation Notes

Cable ties of this type are installed by electricians and low-voltage technicians in accordance with NEC bundling and support requirements. Power down or de-energize circuits before working inside panels or enclosures. Use a cable tie tensioning tool to achieve consistent pull tension and to flush-cut the tail without leaving a sharp edge. Avoid over-tightening on insulated conductors to prevent jacket damage.

Technical Specifications

• Overall Length: 15.1 inches
• Width: 0.32 inches
• Material: Nylon 6.6
• Color: Black
• Max Operating Temperature: 85 degrees C
• Min Operating Temperature: -60 degrees C
• Package Quantity: 1000 ties
• Package Weight: 5.879 pounds
• Package Dimensions: 20.05 x 10.9 x 4.6 inches
• Carton Quantity: 5000 ties
• Carton Weight: 29.394 pounds
• UPC: 74983412433

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: bt4s-m0
