Panduit BT4LH-L0 Dome-Top Barb Ty Cable Tie 14.9 in

Product Description

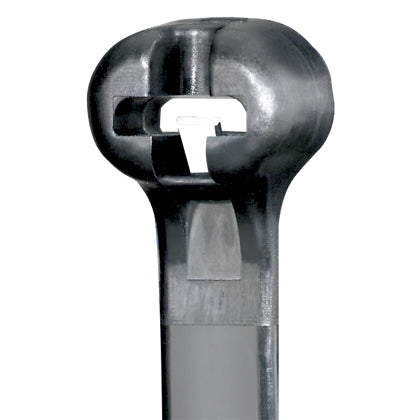

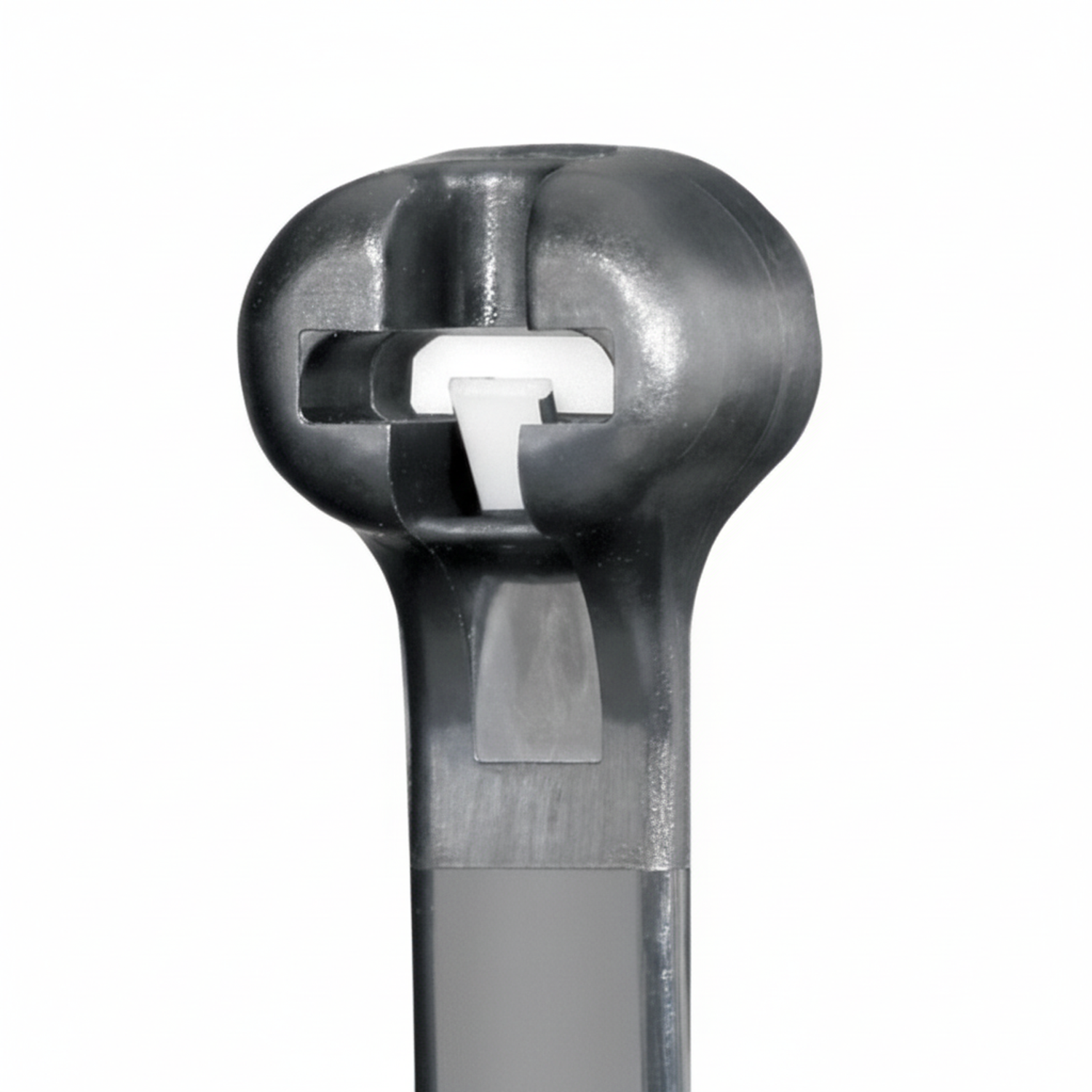

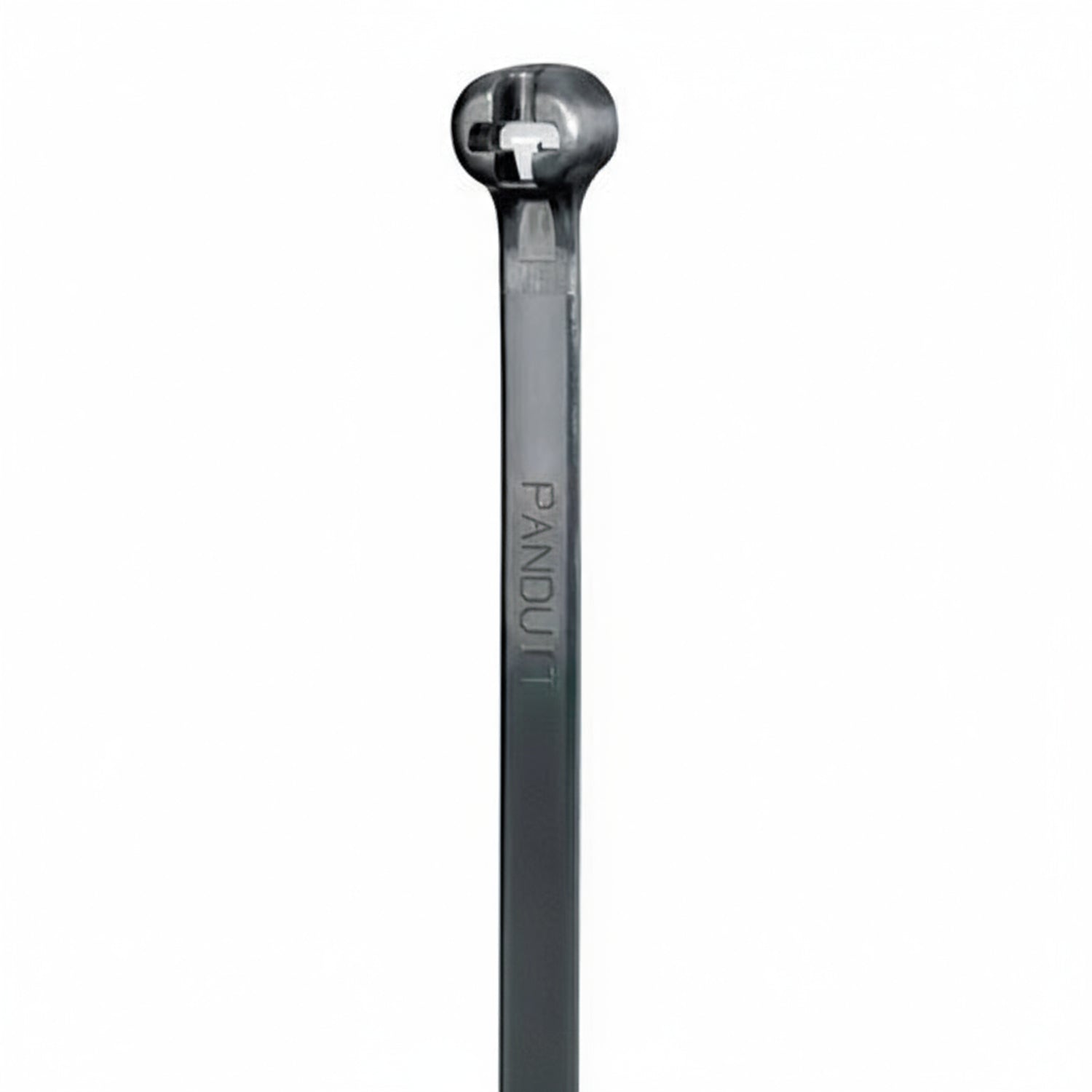

The Panduit BT4LH-L0 Dome-Top Barb Ty Cable Tie is 14.9 inches long and made of weather-resistant plenum rated nylon 6.6. These cable ties are suitable for general purpose, indoor, and outdoor applications. The dome-top head features smooth, round edges for easy handling. They provide consistent performance and reliability.

• Lowest threading force of any single piece cable tie in the industry
• Stainless steel locking barb provides consistent performance and infinite adjustability
• Ribbed and stippled strap body prevents axial and lateral movement

Product Highlights

The Panduit BT4LH-L0 cable tie features a patented design with smooth edges and a stainless steel locking barb for secure and adjustable fastening.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: BT4LH-L0
• Country of Origin: CR

Technical Specifications

• Application: General Purpose, Indoor and Outdoor Applications
• Width: 0.275 in
• Length: 14.9 in
• Series: BT Series
• Material: Nylon 6.6
• Thickness: 0.065 in
• Lock Mechanism: Locking
• Bundle Diameter: 4 in
• Tensile Strength: 534 N
• Temperature Rating: -76 to 185 deg F
• Type: Cross Section Light Heavy Standard Weather-Resistant Plenum Rated
• Standards/Approvals: AH-2 ARRA Compliant|Buy American Act Compliant|BV ACE 14/601/01/2535H: 89/60111 (E3)/11130200|CE Marked|Cert 05968/C0|CSA C22.2 File No. 62275/31212|QPL-AS23190|RoHS Compliant|UL 62275 File No. E56854
• Standard: UL 62275 (File E56854); CSA-C22.2 No. 62275 (File 31212); Cert 05968/C0; BV File
• Special Features: Indoor/Outdoor
• Minimum Loop Tensile Strength: 120 lbs
• Bundle Diameter Min: 0.19"
• Bundle Diameter Max: 4"
• CE Compliant: Yes
• CSA Certified: Yes
• Continuous Use Temperature Range: -76°F (-60°C) - 185°F (85°C)
• Max. Continuous Use Temperature: 185°F (85°C)
• Brand Name: Panduit
• Product Name: Dome-Top BT Series Barb Ty Weather Resistant Locking Cable Tie
• Product Type: Cable Tying
• Depth: 14.9"
