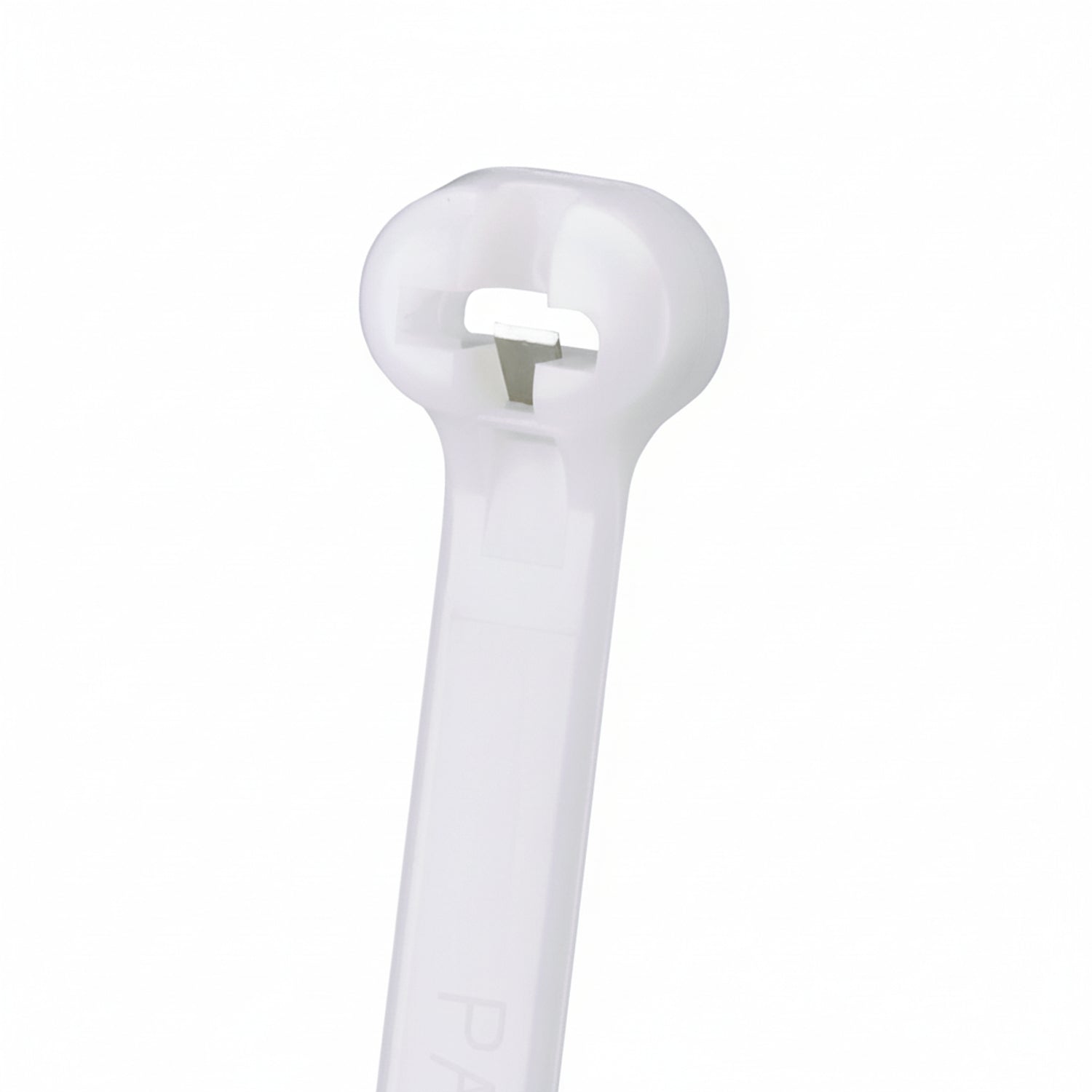

Panduit BT3S-M Cable Tie, Metal Barb, 12.0 inchesL (305mm), Standard, Nylon

Product Description

The PANDUIT BT3S-M Dome-Top barb ty features a unique patented design with round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance and reliability through the entire bundle range. Appropriate for indoor use and made of Nylon 6.6.

• Stainless steel locking barb provides adjustability.
• Made of general purpose Nylon 6/6.
• Working temperature range is from 40 00b0F to 185 00b0F.

Product Highlights

The PANDUIT BT3S-M cable tie is suitable for use in most practical applications. Meets UL 94V-2 flammability ratings. UL Recognized, UL Listed, and CSA Certified.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: BT3S-M
• Country of Origin: Costa Rica

Technical Specifications

• Applications: For General
• Body Thickness: 0.052 in
• Body Width: 0.185 in
• Bundle Diameter: 3.00" (76.20mm)
• Material: Polyamide (PA66), Nylon 6/6
• Max Operating Temperature: 185 degrees F
• Min Operating Temperature: -60 degrees C
• Standard: UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant
• Temperature Rating: -60 to 85 degrees C
• Tensile Strength: 50 lbs (22.68 kg)
• Type: Standard Cross Section, Plenum
• Length: 12 in.
• Overall Length: 305 mm
• Thickness: 1.3 mm
• Width: 0.18" (4.7 mm)
• Buy American Compliant: Y
• CA Prop65 Warning: No
• Country of Origin: Costa Rica
• Prop 65: No
• Flammability Rating: UL 94V-2
• Category: Cables, Wires - Management, Cable Ties and Zip Ties
• Length - Actual: 1.000' (304.80mm)
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: DOME-TOP 00ae BARB-TY 00ae BT
• Packaging: Bulk
• Part Status: Active
• Wire/Cable Tie Type: Standard, Locking
• Length - Approximate: 12"
• Base Product Number: BT3S
• ECCN: EAR99
• UPC: 07498341212
• UNSPSC: 39121703
• Duty Rating: Standard
• Color Family: Natural
• Nominal Length: 12 in.
• Max. Temperature Rating: 185 00b0F
