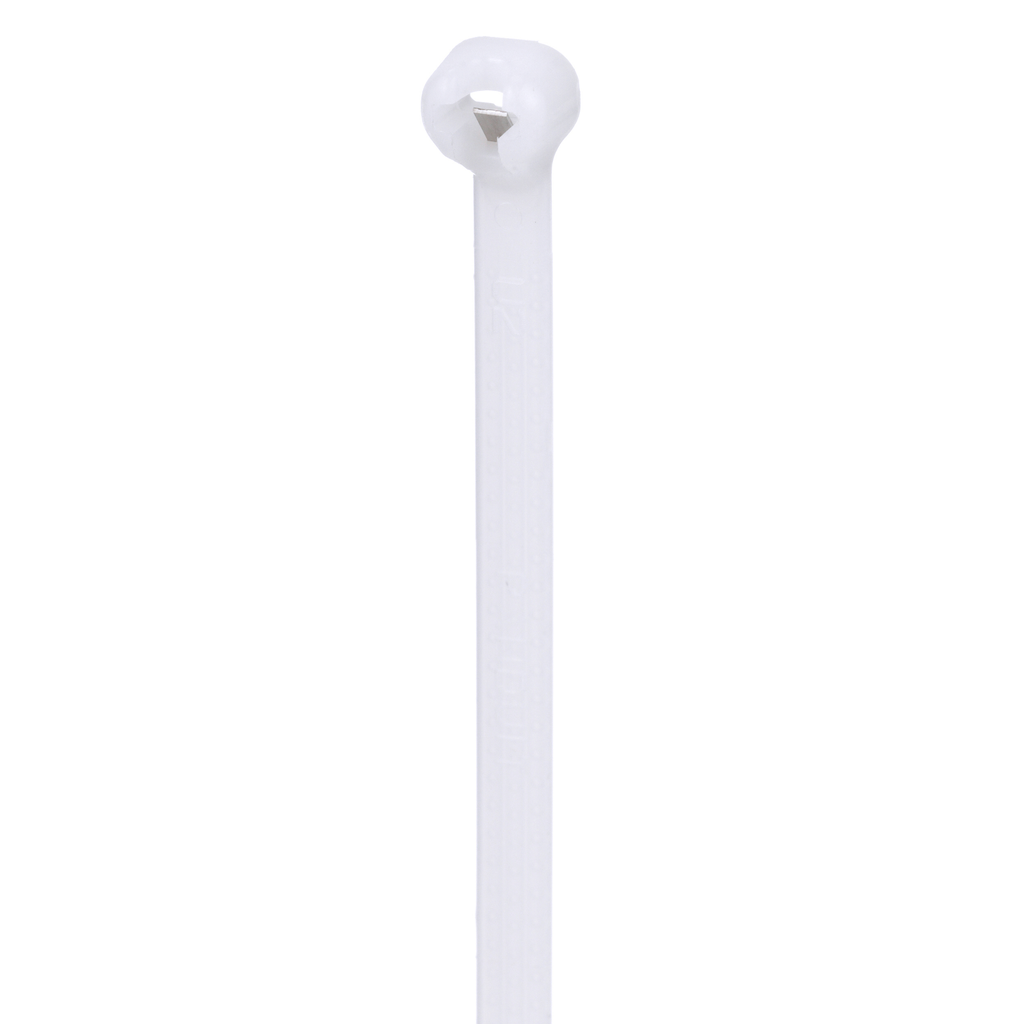

Panduit BT3I-M Cable Tie 11.3 inchesL

Product Description

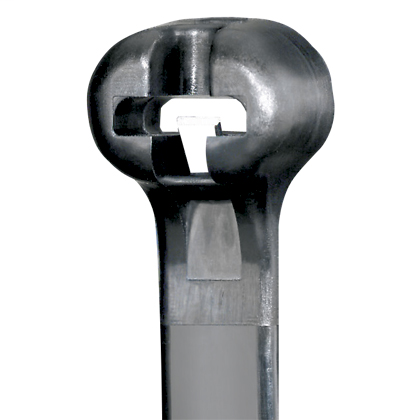

The PANDUIT BT3I-M Dome-Top® barb ty cable tie features a stainless steel locking barb for adjustability. The 11.3 inch tie is crafted from durable nylon 6.6. It is designed for intermediate cross-section applications and offers reliable bundling for a variety of environments.

• Curved tip orients tip toward head for faster initial threading
• High loop tensile strength exceeds industry standards
• Dome-Top head features smooth, round edges easy for installers to handle

Product Highlights

The BT3I-M cable tie provides consistent performance, reliability and adjustability through the entire bundle range.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: BT3I-M
• Country of Origin: Costa Rica

Technical Specifications

• Color: Natural
• Width: 0.141 in
• Length: 11.3 in
• Series: BT Series
• Material: Nylon 6.6
• Thickness: 0.049 in
• Lock Mechanism: Locking
• Bundle Diameter: 3 in
• Tensile Strength: 178 N
• Country of Origin: CR
• Temperature Rating: -76 to 185 deg F
• application: General Purpose and Indoor Applications
• Type: Intermediate Cross Section, Internal Toothing, Locking
• Pkg Qty: 1000
• Brand: Panduit Corp.
• Sub Brand: Dome-Top
• Overall Length: 287 mm
• Overall Width: .25 in, 6.3 mm
• Maximum Operating Temperature: 185 °F, 85 °C
• Minimum Operating Temperature: -60 °C, -76 °F
• Maximum Bundle Diameter: 3 in, 76.2 mm
• Environment Application: Plenum
• Minimum Bundle Diameter: .03 in, .8 mm
• Environmental Initiative: ROHS
• Compliant: Yes
• ECCN: EAR99
• UPC: 07498341370
• UNSPSC: 39121703
• Standard: UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant
• Use With: GTS-E, GS2B-E, PTS, PPTS, STS2
• Duty Rating: Intermediate
• Color Family: Natural
• Nominal Length: 11.3 in.
• Max. Temperature Rating: 185°F
• Body Thickness: 0.049 in
• Body Width: 0.142 in
• Prop 65 Warning: No
• Standards Met: UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant
• Prop 65: No
