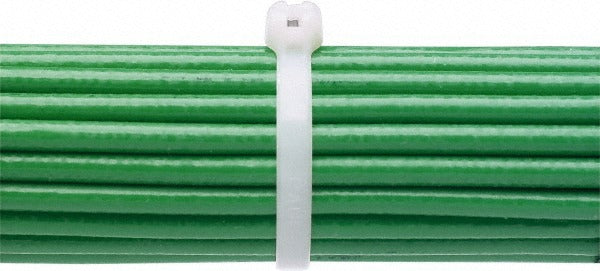

Panduit BT2S-C Cable Tie 8in Natural Nylon Barbed 50lb

Product Description

The PANDUIT BT2S-C is a barbed nylon cable tie rated for general-purpose wire and cable bundling applications. It measures 8 inches in overall length and 0.185 inches in width, with a maximum bundle diameter of 2 inches and a tensile strength of 50 pounds. The tie is molded from natural-colored nylon and features a barbed locking mechanism for a secure, one-way cinch. Electricians, panel builders, and low-voltage installers use these ties to route and secure wire bundles in panels, cable trays, enclosures, and conduit runs where a reliable, repeatable fastening method is required.

The BT2S-C is suited for indoor and outdoor electrical and data wiring installations where bundle diameters do not exceed 2 inches. Its nylon construction handles a wide operating temperature range from -76 degrees F to 185 degrees F, making it appropriate for both climate-controlled equipment rooms and exposed industrial environments. The natural color is commonly used where color coding is not required or where the installer applies separate color-coded ties for circuit identification.

Key Features

• 8 inches overall length with a 2-inch maximum bundle diameter capacity
• 50 lb tensile strength for secure, reliable wire bundle retention
• Barbed locking mechanism provides a positive one-way lock
• Nylon construction rated from -76 degrees F to 185 degrees F operating range
• CE Certified, CSA Certified, RoHS Compliant, and UL Listed (File E56854)
• Compliant with UL 62275 Type 2S and 21S and MS3367-1-9 standards

Compatibility

Designed as an OEM-style replacement and standard consumable for general electrical and low-voltage wiring installations requiring an 8-inch barbed nylon cable tie with a 2-inch maximum bundle capacity.

Installation Notes

Cable ties are typically installed by electricians and low-voltage technicians in accordance with NEC bundling and support requirements. De-energize circuits before working inside panels or enclosures. Pull the tie through the locking head firmly and trim the tail flush with a cable tie gun or flush-cut side cutters to avoid sharp edges that can damage wire insulation or cause injury. Do not over-cinch ties on conductor bundles in a way that deforms insulation.
