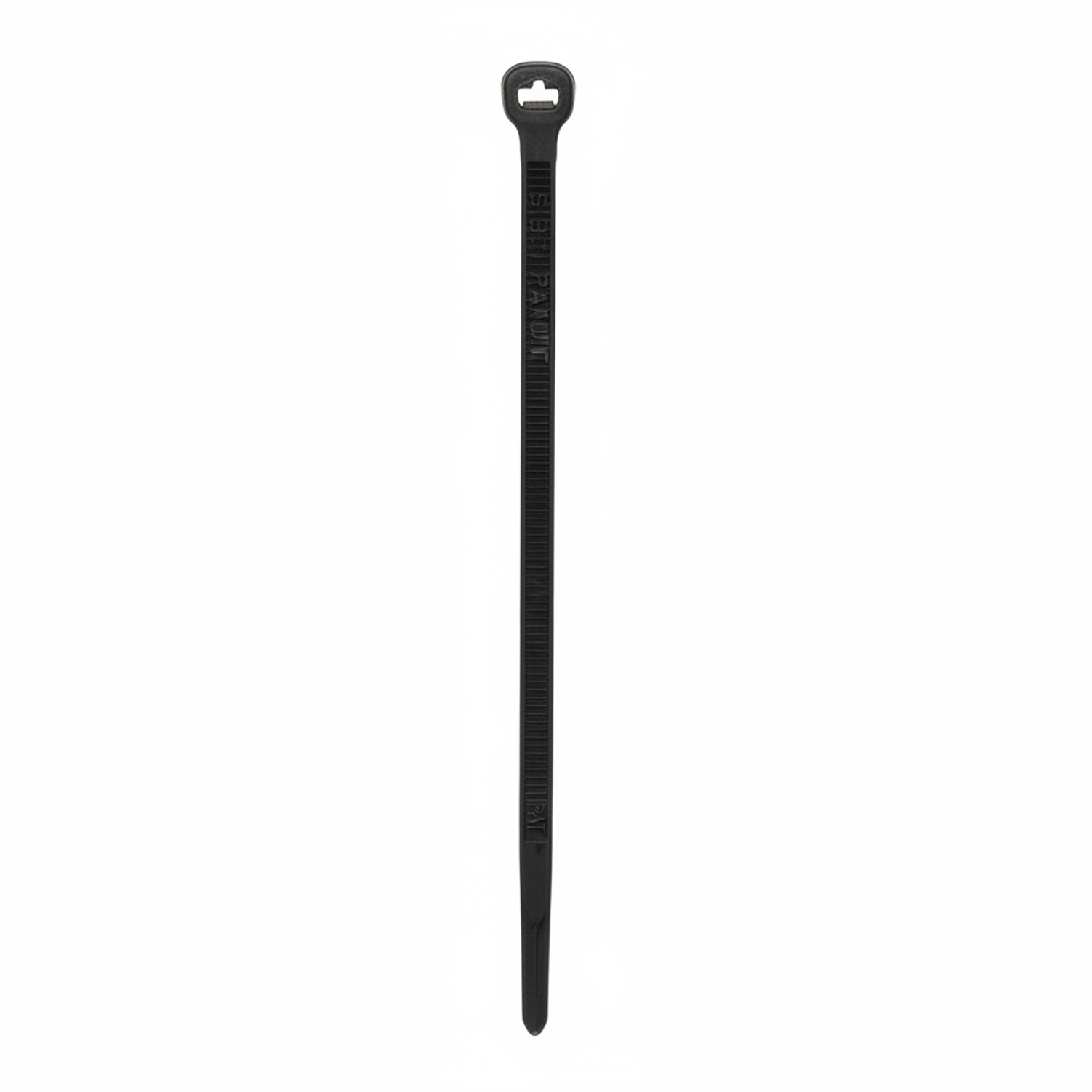

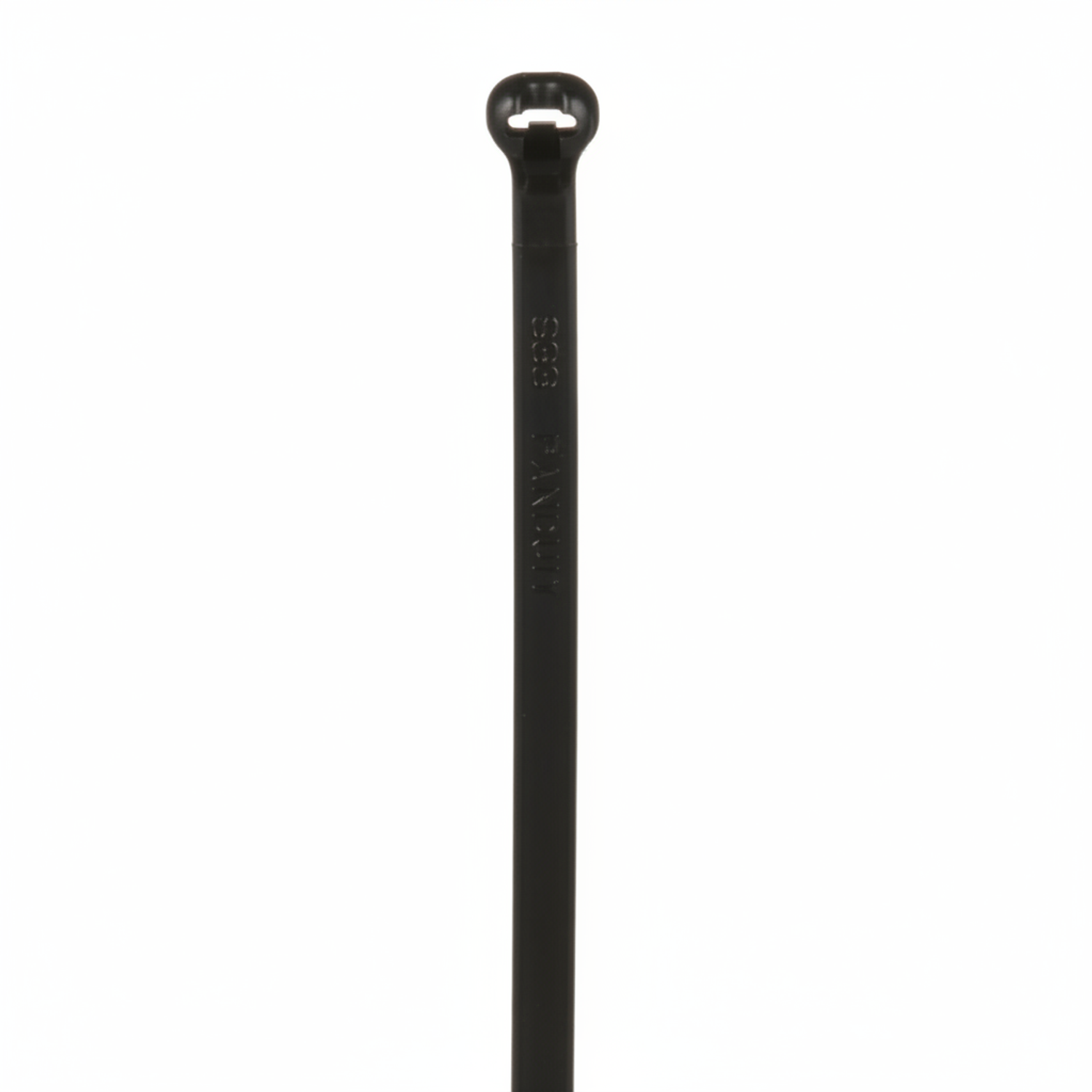

Panduit BT1.5M-M30 Cable Tie Locking Black 18lb 6.30 inches

Product Description

The PANDUIT BT1.5M-M30 Dome-Top® barb ty cable tie features a miniature cross section and a 6.3" (160mm) length. Constructed from heat stabilized nylon 6.6, it offers a standard locking mechanism for secure bundling.

• Heat Stabilized
• Standard, Locking

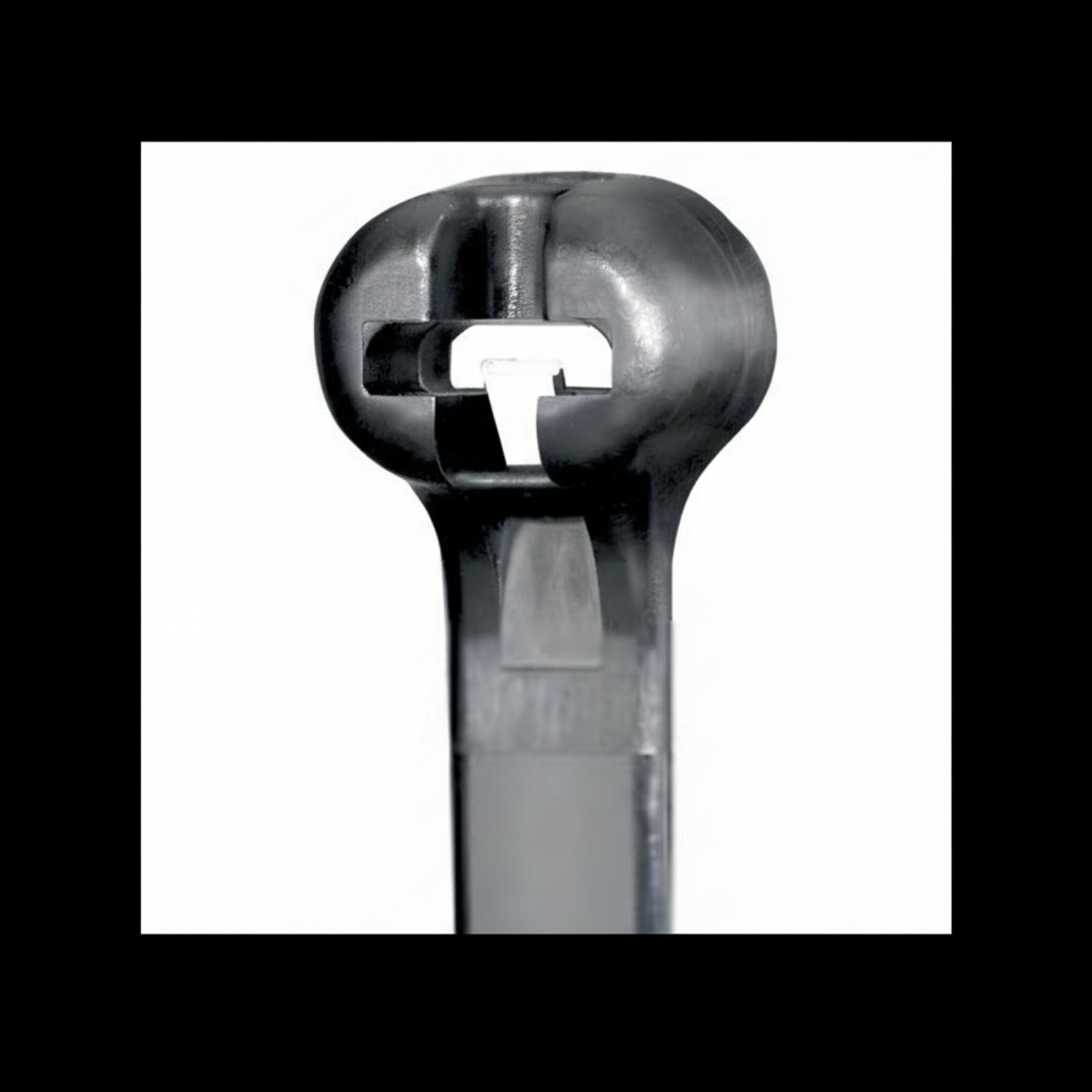

• Stainless steel locking barb provides infinite adjustability through entire bundle range

Product Highlights

Ideal for cable management, this black cable tie provides a reliable and adjustable solution for various bundling applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: BT1.5M-M30
• Country of Origin: Costa Rica

Technical Specifications

• Category: Cables, Wires - Management
• Cable Ties and Zip Ties: Cable Ties and Zip Ties
• Length - Actual: 0.525' (160.00mm, 6.30")
• Manufacturer: Panduit Corp
• Mounting Type: Free Hanging (In-Line)
• Series: DOME-TOP BARB-TY BT
• Tensile Strength: 18 lbs (8.16 kg)
• Packaging: Bulk
• Features: Heat Stabilized
• Part Status: Active
• Material: Polyamide (PA66), Nylon 6/6
• Wire/Cable Tie Type: Standard, Locking
• Color: Black
• Length - Approximate: 6.25"
• Bundle Diameter: 2.00" (50.80mm)
• Width: 0.095" (2.41mm)
• Base Product Number: BT1.5M
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• REACH Status: REACH Unaffected
• Length: 6.3 in.
• Nominal Length: 6.3 in.
• Brand: Dome-Top
• Standard: UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant
• Use With: GTS-E, GS2B-E, PTS, PPTS, STS2
• Duty Rating: Miniature
• Color Family: Black
• Max. Temperature Rating: 239 F
