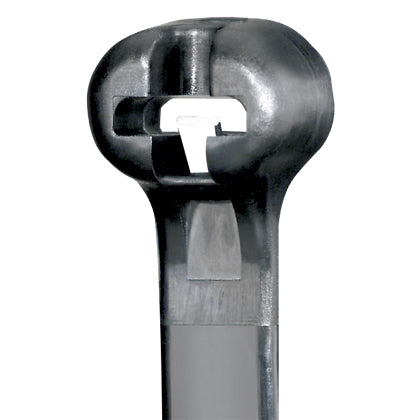

Panduit BT1.5M-M0 Dome-Top Nylon Cable Tie 1-1/2 in

Product Description

The PANDUIT BT1.5M-M0 Dome-Top Cable Tie is a miniature, weather-resistant, plenum-rated tie suitable for general purpose, indoor and outdoor applications. Constructed from Nylon 6.6, it measures 6.3 inches in length and 0.18 inches in width, accommodating a bundle diameter of 1-1/2 inches. It features a locking mechanism and a tensile strength of 18 lb.

• High strength withstands rough installation practices.
• One-piece locking wedge provides consistent, reliable performance.
• Dome shaped head and smooth, round strap body protect cable insulation.

Product Highlights

This cable tie offers high strength, reliable performance, and cable protection for various environments.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: BT1.5M-M0
• Country of Origin: Canada

Technical Specifications

• Application: General Purpose, Indoor and Outdoor Applications
• Bundle Diameter: 1-1/2 in
• Color: Black
• Length: 6.3 in
• Lock Mechanism: Locking
• Manufacturer Part Number: BT1.5M-M0
• Material: Nylon 6.6
• Series: BT Series
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CE Marked|CNRC 10CFR50|CSA C22.2 File No. 62275/11130200|CSA Certified|QPL-AS23190|RoHS Compliant|UL 62275 File No. E56854
• Temperature Rating: -70 to 185 deg F
• Type: Cross Section Miniature Weather-Resistant Plenum Rated
• Width: 0.18 in
• Tensile Strength: 80 lb
• Thickness: 1.2 mm
• Brand Name: Panduit
• Sub Brand: Dome-Top
• Mounting Type: Free Hanging (In-Line)
• Wire/Cable Tie Type: Standard, Locking
• Flame Retardant: Not Flame Retardant
• Plenum Rated: Yes
• Cable Tie Duty: Miniature
• Actual Length: 6.3 in
• Cable Tie Style: Standard
• Max. Bundle Dia.: 1.5 in
• Metal Detectable: No
• Number of Straps: 1
• Nominal Length: 6 1/2 in
• Outdoor Use: Outdoor Use
• Nominal Max. Bundle Dia.: 1 1/2 in
• Temp. Range: -76 Degrees to 185 Degrees F
• UL Type: 2
• Bundle Diameter - nominal: 1.5 in. (38mm)
• Tie Material: Nylon, Weather-resistant
• Clip Material: Stainless Steel Barb
