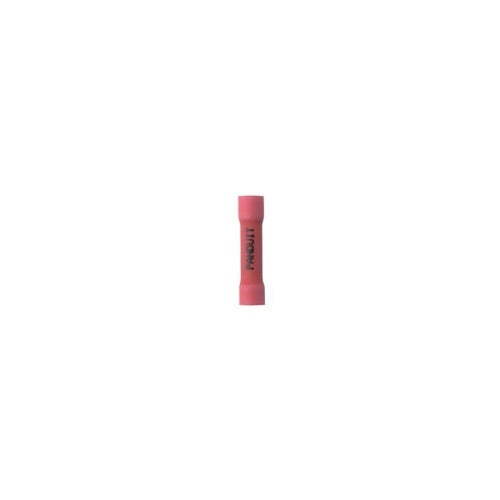

Panduit BSV18X-LY Vinyl Insulated Butt Splice 18-22AWG, PK50, Red

Product Description

Panduit BSV18X-LY is a vinyl insulated butt splice designed for reliable connections between wires and cables. This product is suitable for wire sizes eighteen to twenty-two AWG. The butt splice features an internal wire stop that ensures correct insertion length for a secure connection. The brazed seam construction prevents the terminal barrel from splitting during the crimping process. Its expanded wire entry accommodates thicker wire insulation for a better fit, making it an ideal choice for various electrical applications.

• Compatible with wire sizes 18 to 22 AWG
• Expanded wire entry for easier use
• Constructed with copper and vinyl insulation

Product Highlights

This butt splice provides strong electrical connections and is easy to install. It is perfect for a range of wiring projects, from installations to repairs.

Product Information

Standard Information

• Manufacturer: PANDUIT CORP
• Part Number: BSV18X-LY

Technical Specifications

• Color: Red
• Material: Copper and Vinyl
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600 VAC
• Packaged Quantity: 50
• Type: Butt Splice
• Compliance Standards: RoHS Compliant, UL 486C
