Panduit BSV14X-L Butt Splice 14-16 AWG

Product Description

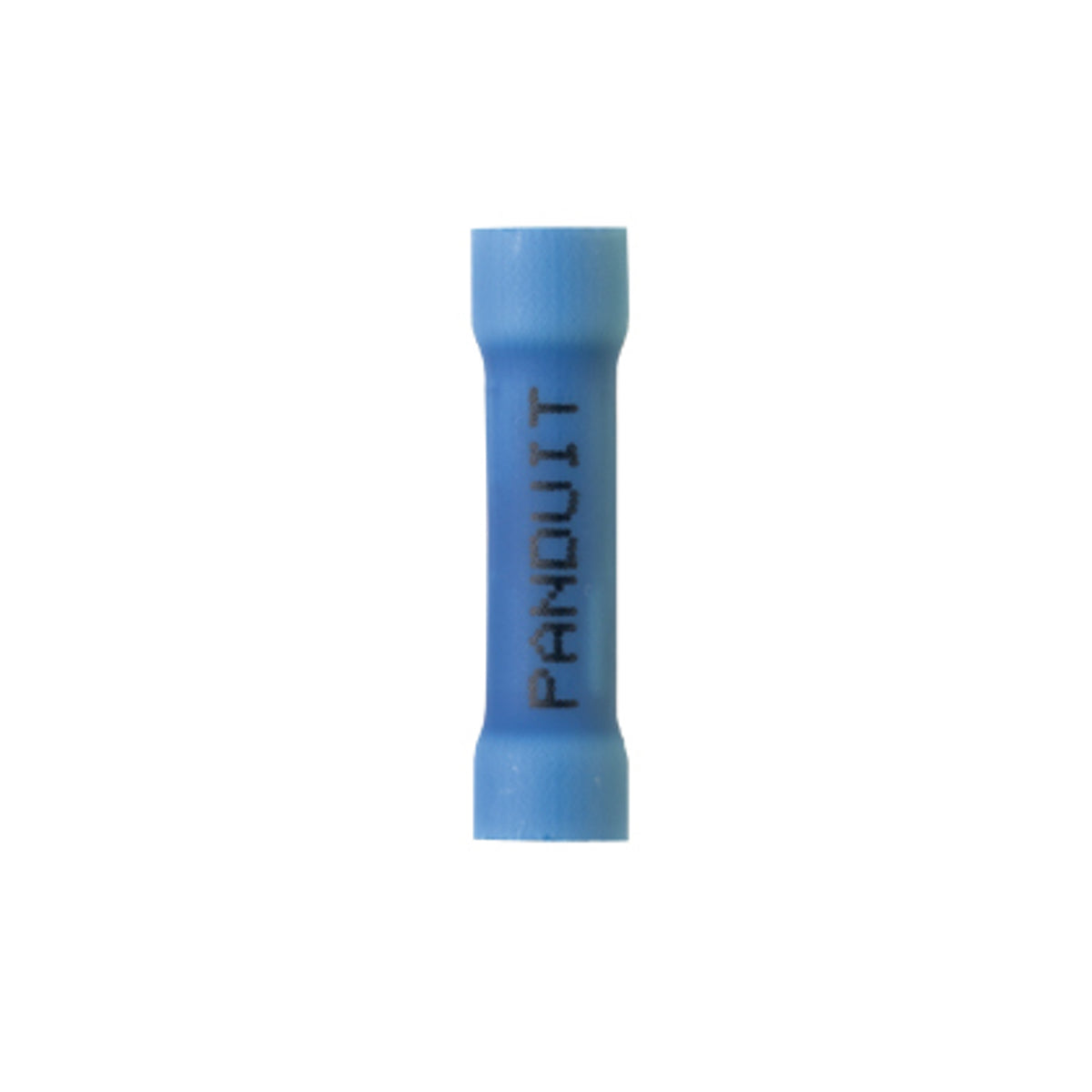

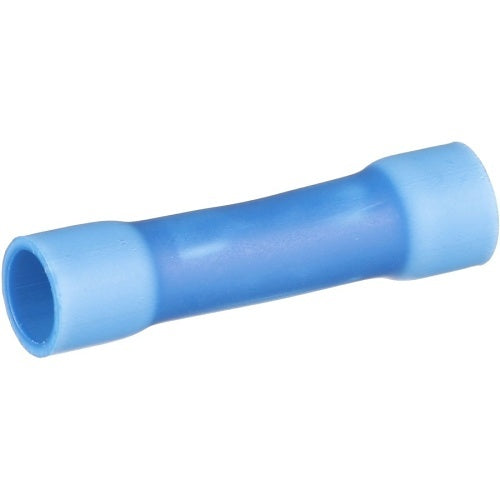

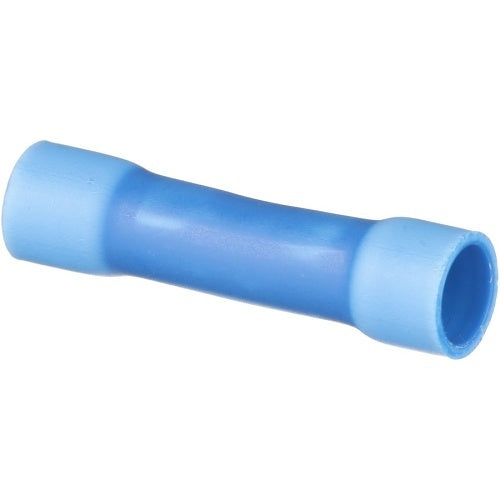

The PANDUIT BSV14X-L Pan-Term® Splice is a vinyl insulated butt splice with an internal wire stop that assures proper insertion length for a quality connection. Its brazed seam protects the terminal barrel during crimping, and the expanded wire entry accommodates wires with larger insulation thickness.

• Funnel entry barrel type
• Base Material Copper
• Insulation Material Vinyl

Product Highlights

The BSV14X-L butt splice is vinyl insulated and suitable for 14-16 AWG wires. It features a brazed seam and expanded wire entry.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: BSV14X-L
• Country of Origin: Mexico

Technical Specifications

• Brand Name: Panduit
• Manufacturer: PANDUIT CORP
• Product Line: Pan-Term
• Product Name: Butt Splice
• Product Type: Wire Splice
• Compatibility: 14-16 AWG
• ADI Part Number: P9-BSV14XL
• Packaged Quantity: 50
• Manufacturer Part Number: BSV14X-L
• Color: Blue
• Catalog Number: BSV14X-L
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Connection: Expanded
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• UPC: 074983521623
• GTIN: 00074983521623
• Item Type: Butt Splice
• Size: 16 - 14
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600
• Category: Connectors, Interconnects
• Terminals: Wire Splice Connectors
• Termination: Crimp
• Wire Gauge: 14-16 AWG
• Series: Pan-Term
• Features: Brazed Seam
• Part Status: Active
• Terminal Type: Butt Splice, Inline, Individual Openings
• Base Product Number: BSV14X
• Number of Wire Entries: 2
