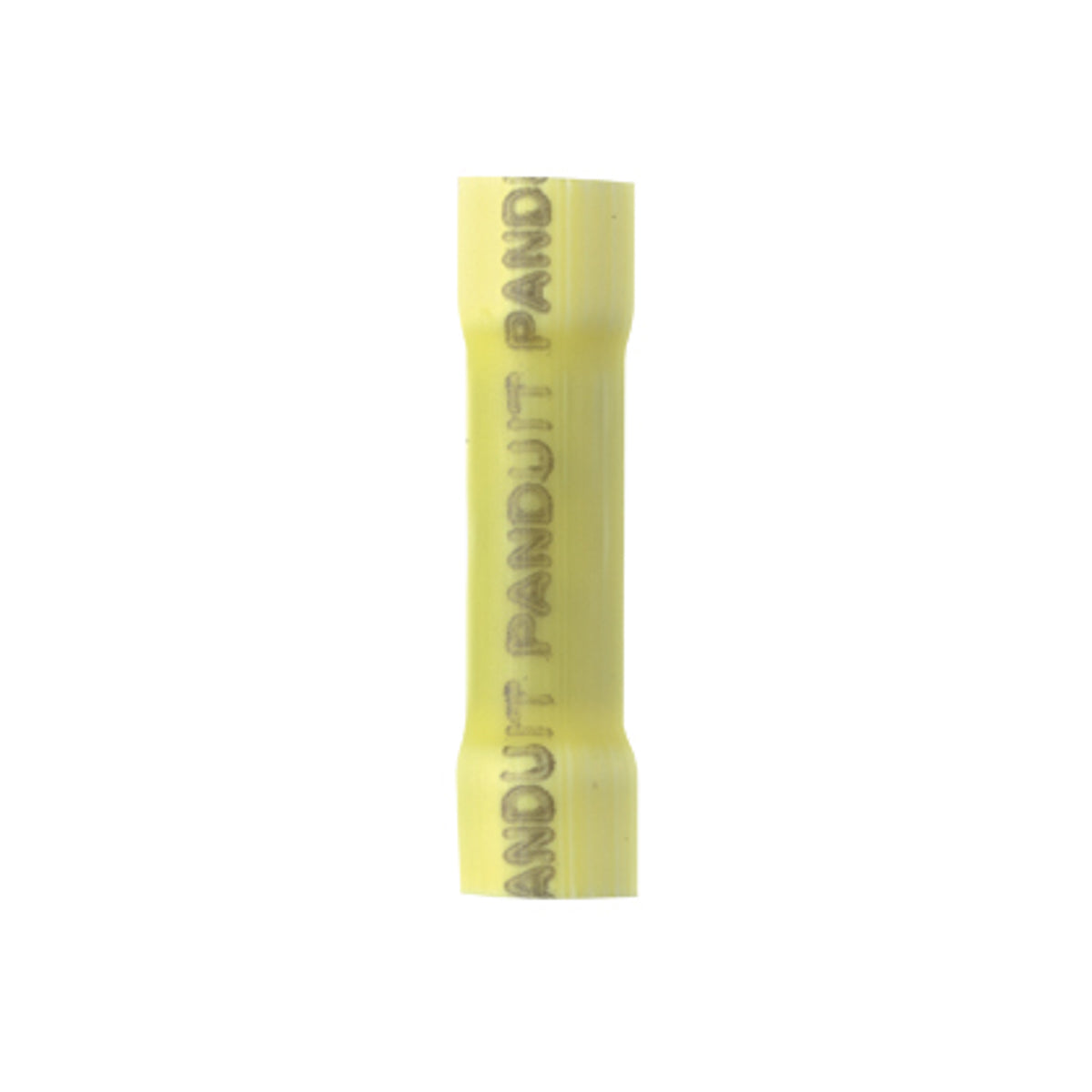

Panduit BSV10X-Q Vinyl Insulated Butt Splice

Product Description

The Panduit BSV10X-Q is a vinyl insulated butt splice. It is designed for connecting two wires, ensuring a strong electrical connection. The internal wire stop guarantees the correct insertion length, providing a reliable connection. The brazed seam protects the terminal barrel during the crimping process, and expanded wire entry accommodates wires with a larger insulation thickness.

• Vinyl insulated for protection and durability
• Internal wire stop for precise insertion length
• Brazed seam prevents splitting during crimping

Product Highlights

This butt splice is ideal for both solid and stranded wire, constructed from copper and vinyl to ensure effective conductivity and prevent corrosion.

Product Information

Standard Information

• Type: Butt Splice
• Wire Count: Single

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: 221 degrees Fahrenheit (105 degrees Celsius)
• Finish: Tin-plated
• Material: Copper
• Color: Yellow
• Standards: UL 486C, CSA C22.2 No 65
• UPC: 074983521616
