Panduit BSV10X-Q Pan-Term Butt Splice Vinyl 10-12 AWG

Product Description

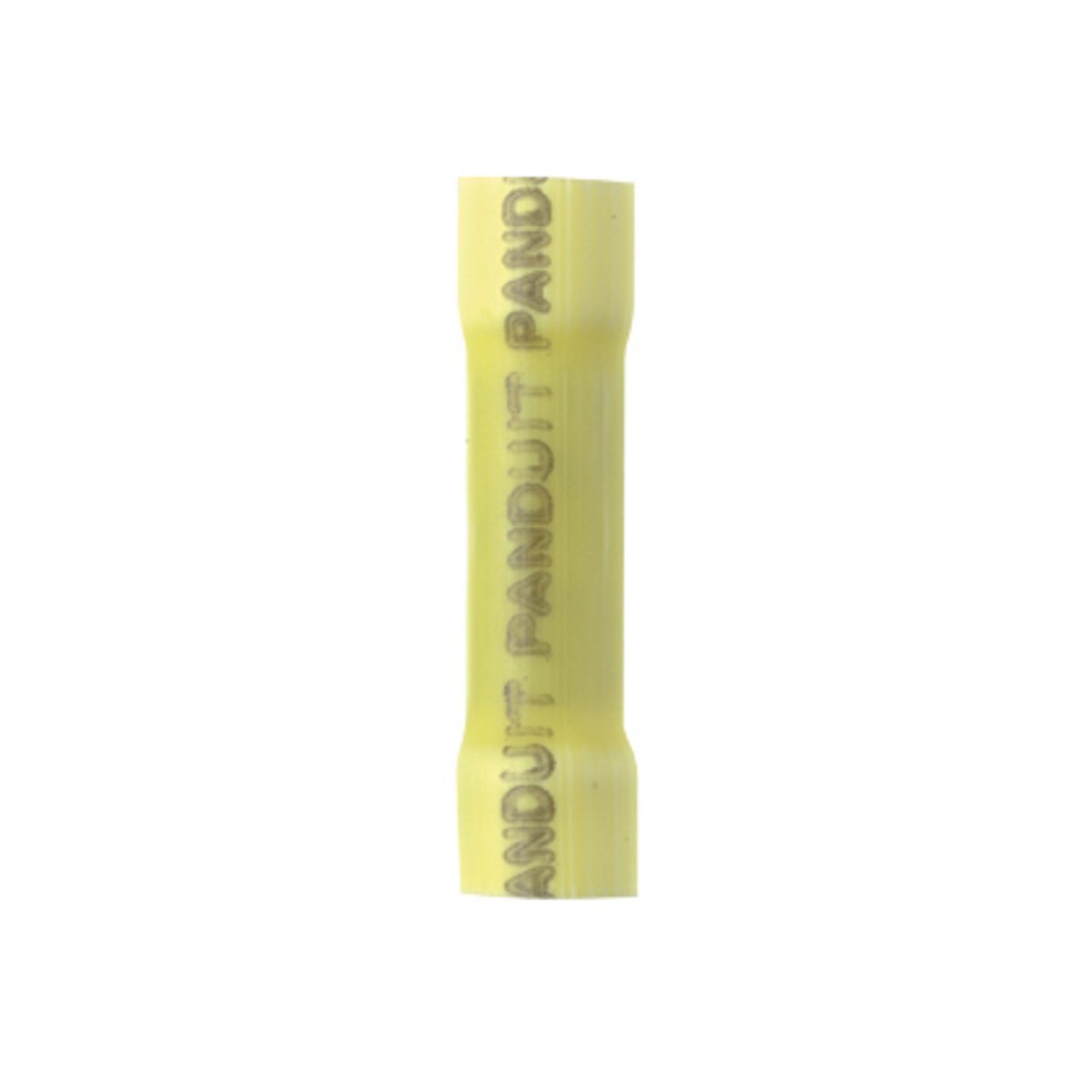

The Panduit BSV10X-Q is a Pan-Term vinyl insulated butt splice. Constructed from copper with a tin-plated finish, this expanded butt splice accommodates 10-12 AWG conductors. It is suitable for applications up to 600V and temperatures up to 221 degrees Fahrenheit (105 degrees Celsius).

• Tin plated to inhibit corrosion
• Product information marked on connector for selection and installation
• Internally beveled wire entry for fast and easy installation

Product Highlights

Vinyl insulated butt splice with expanded wire entry and tin-plated finish for corrosion resistance.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: BSV10X-Q
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: BSV10X-Q
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term®
• Country of Origin: Mexico
• Made in USA: No
• Color: Yellow
• Connection: Expanded
• Finish: Tin-Plated
• Insulation: Vinyl
• Material: Copper
• UPC: 074983521616
• GTIN: 00074983521616
• Item Type: Butt Splice
• Size: 12 - 10
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600
• Conductor Size: 12 to 10 AWG
• Conductor Type: Solid/Stranded
• Length: 1.18 in
• Series: BSV
• Specifications: 5/16 in L Wire Strip, 1/4 in Dia Maximum Vinyl Insulation
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA C22.2 File No. 65 File No. LR31212|RoHS Compliant|UL 486C|UL 587H File No. E52164|UL 94 V-0 Flammability Rating|Buy American Act Compliant
• Type: Expanded Loose Piece
