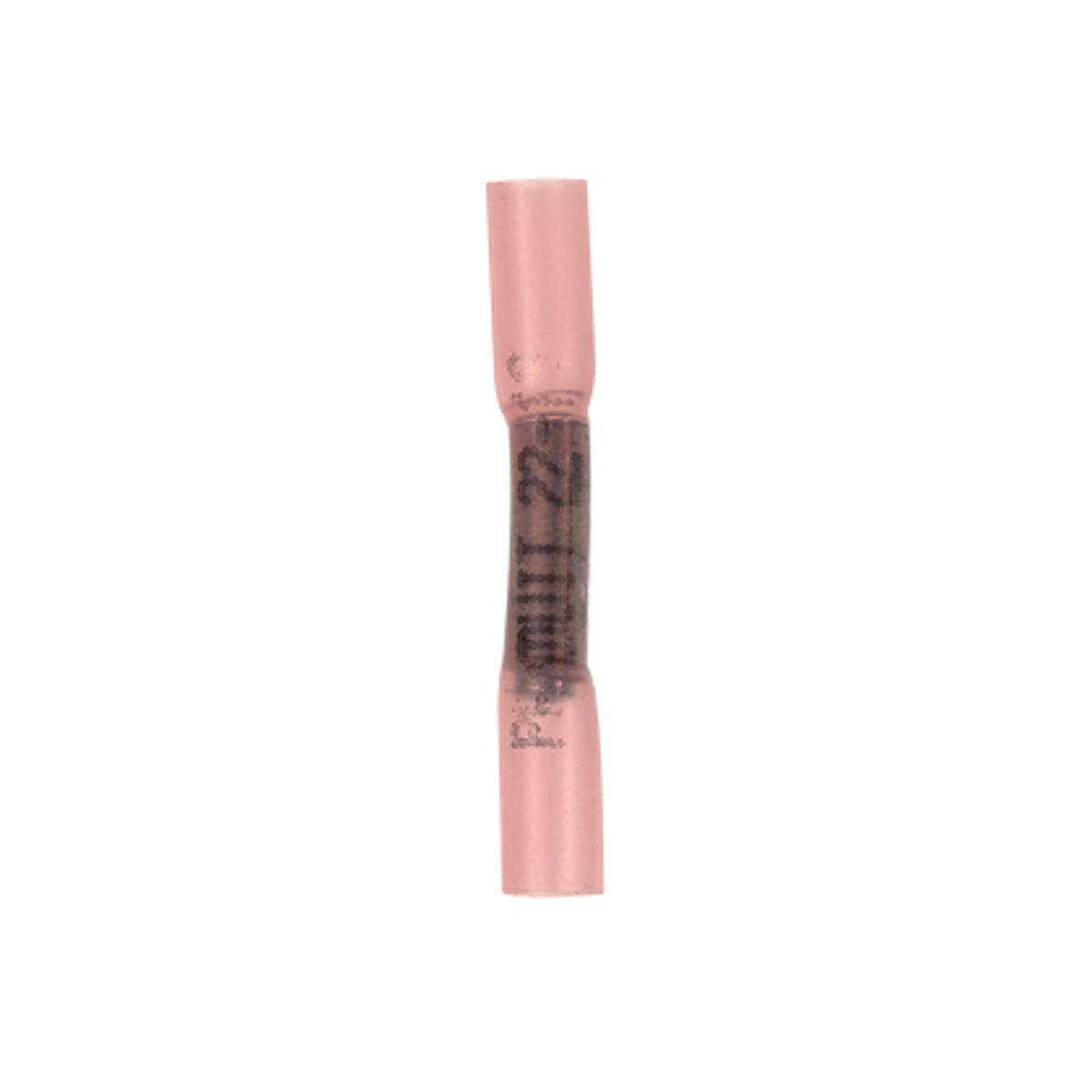

Panduit BSH18-Q Butt Splice Insulated Heat Shrink Standard 22 - 18 AWG

Product Description

Panduit BSH18-Q is a heat shrink butt splice designed for use with wire sizes between twenty-two and eighteen AWG. This connector allows for securing two solid or stranded wires together effectively, whether for repairs or extensions.

• Heat shrink polyolefin sleeve with hot melt adhesive offers moisture protection.
• Can be applied to both solid and stranded wire connections.
• Facilitates low-profile installations in tight spaces due to its butted configuration.

Product Highlights

The BSH18-Q connector provides reliable electrical connections and is easy to install with a standard heat gun to complete the heat shrink process.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: BSH18-Q

Technical Specifications

• Type: Butt Connector
• Wire Size Range: 22 - 18 AWG
• Material: Copper/Polyolefin
• Temperature Rating: -65 to 230 Degrees Fahrenheit
• Voltage Rating: 600 VAC
• Shrink Temperature: 300 Degrees Fahrenheit
• Color: Red
• Finish: Tin-Plated
