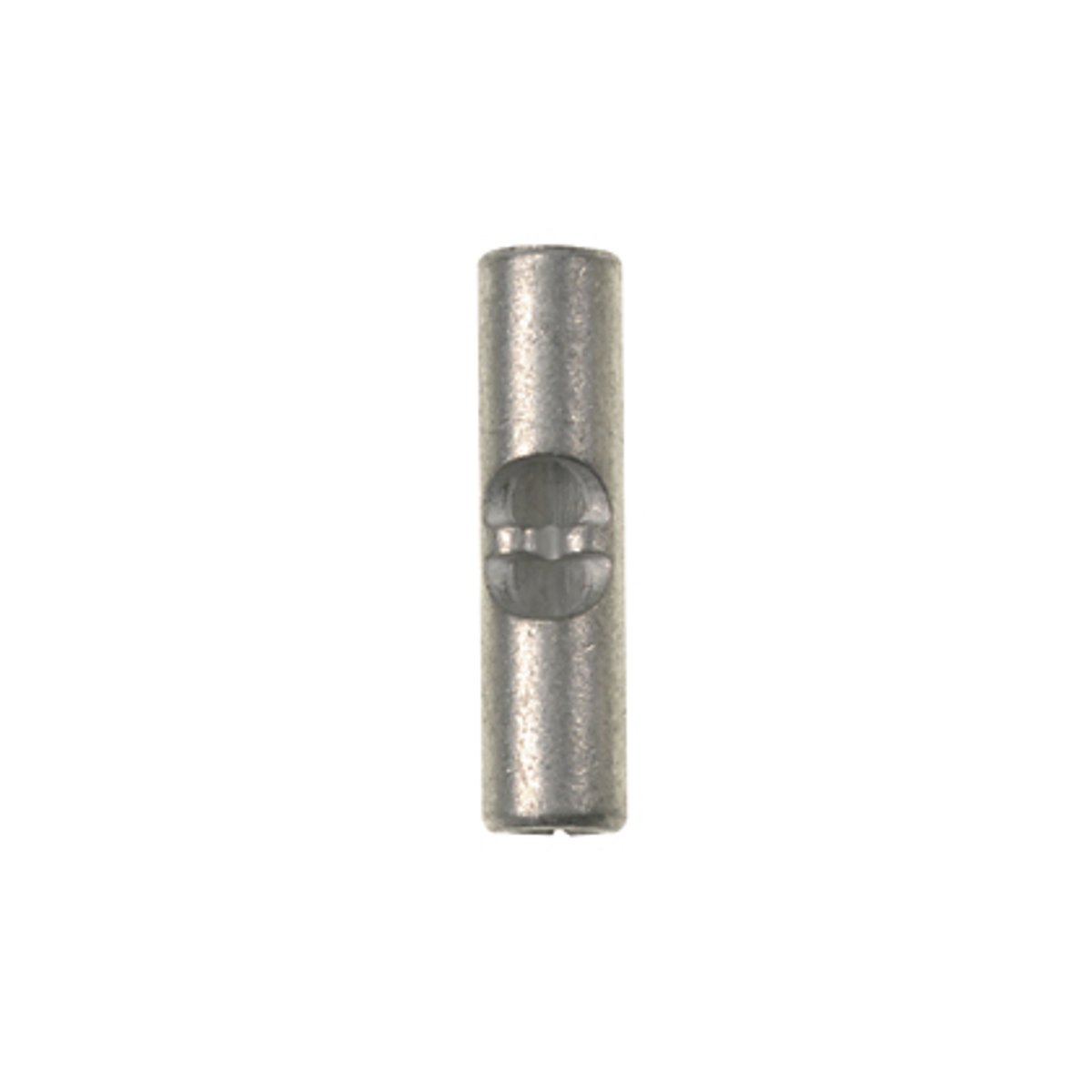

Panduit BS18-M Pan-Term Butt Splice 22 AWG - 18 AWG

Product Description

The Panduit BS18-M is a non-insulated butt splice designed to efficiently join 22-18 AWG wires, ensuring secure electrical connections. Crafted from durable copper with a tin-plated finish, it ensures reliable conductivity. Features a brazed seam barrel type for long-lasting performance and is suitable for a wide range of applications.

• Brazed Seam
• Serrated Mating Area
• Accommodates 22-18 AWG wires

Product Highlights

This non-insulated butt splice is crafted from durable copper with a tin-plated finish, ensuring reliable conductivity.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: BS18-M
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: BS18-M
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Color: Copper
• Conductor Range: 22 AWG - 18 AWG AWG
• Connection: Standard
• Finish: Tin-Plated
• Insulation: Non-Insulated
• Material: Copper
• Standard: C22.2 No 65
• UPC: 074983832019
• GTIN: 00074983832019
• Item Type: Butt Splice
• Size: 22 - 18
• Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
• Voltage Rating: 2000 V
• Category: Connectors, Interconnects
• Terminals: Wire Splice Connectors
• Number of Wire Entries: 2
• Termination: Crimp
• Series: Pan-Term
• Wire Gauge: 18-22 AWG
• Packaging: Bulk
• Part Status: Active
• Features: Brazed Seam, Serrated Mating Area
• Terminal Type: Butt Splice, Inline, Individual Openings
• Base Product Number: BS18
• Barrel Length: 15.7 mm, .62 in
• Maximum Voltage: 2000 V
• Barrel Type: Brazed Seam
• Product: Splices
• Product Type: Butt Splice
• SKU: PANBS18-M
• ECCN: EAR99
• Conductor Size: 22-18 AWG
• Lug Wire Size: 22-18 AWG
• Color Family: Metallic
• Length: 0.62 in.
• Width: 0.14 in.
• Manufacturer Part No: BS18-M
• Newark Part No.: 14AC0673
• Product Range: BS Series
• Insulator Colour: -
• Wire Size AWG Min: 22AWG
• Wire Size AWG Max: 18AWG
• Conductor Area CSA: 1mm
• Insulator Material: Uninsulated
