Panduit BS10-L Pan-Term Butt Splice 10-12 AWG PK50

Product Description

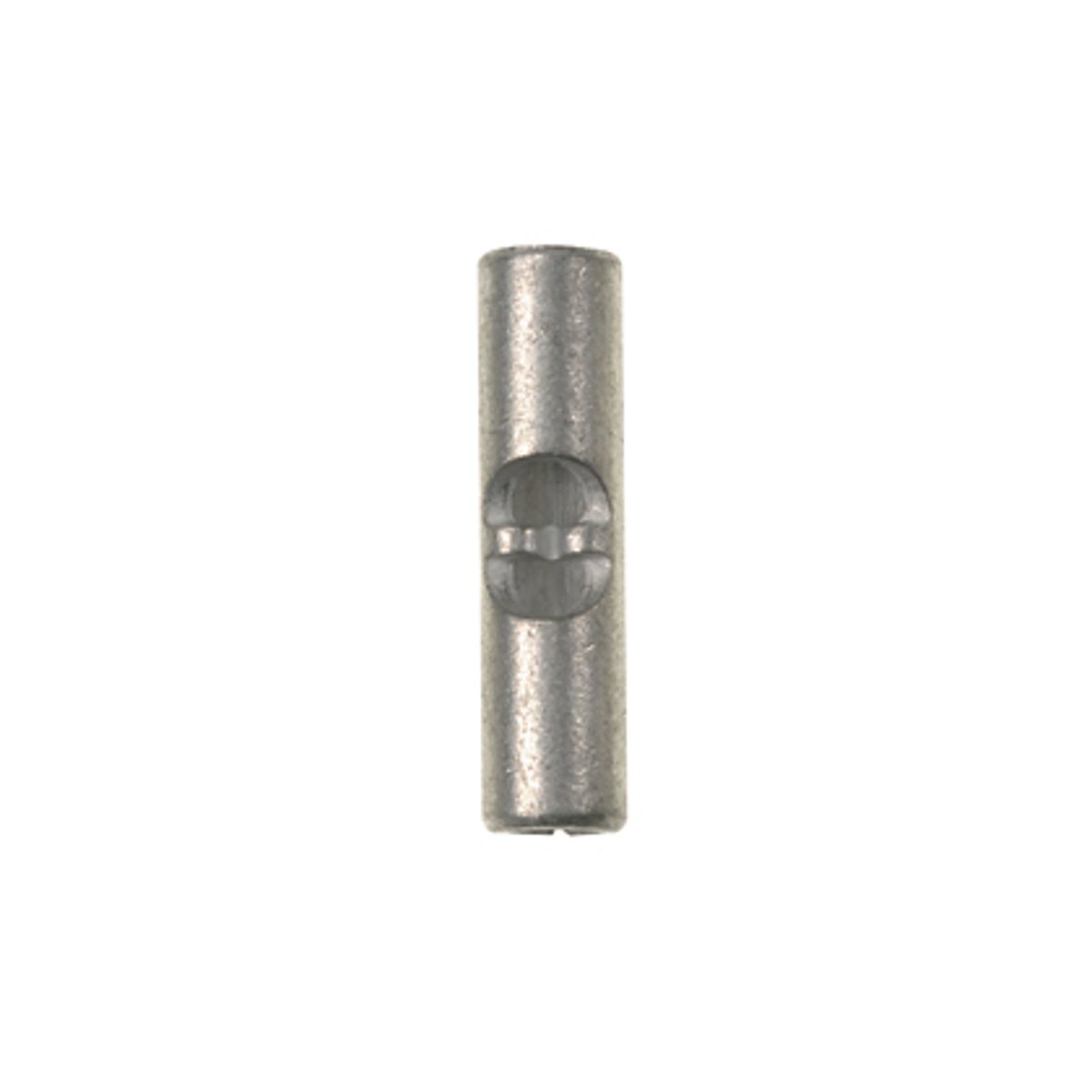

The PANDUIT BS10-L Pan-Term butt splice is a non-insulated connector designed for fast assembly and reliable performance. Constructed from copper with a tin-plated finish, this butt splice is suitable for in-line, parallel, and group splicing of wires. It is designed to splice two solid or stranded wires together to repair or lengthen wires with only one crimp required.

• Brazed Seam
• Serrated Mating Area
• Seamless tubular barrel of high quality tin plated brass

Product Highlights

The PANDUIT BS10-L butt splice provides a consistent, high-quality crimp for splicing 10-12 AWG wires.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: BS10-L
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: BS10-L
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Color: Copper
• Conductor Range: 12 AWG - 10 AWG AWG
• Connection: Standard
• Finish: Tin-Plated
• Insulation: Non-Insulated
• Material: Copper
• Standard: C22.2 No 65
• Item Type: Butt Splice
• Size: 12 - 10
• Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
• Category: Connectors, Interconnects
• Terminals: Wire Splice Connectors
• Number of Wire Entries: 2
• Termination: Crimp
• Series: Pan-Term
• Wire Gauge: 10-12 AWG
• Packaging: Bulk
• Part Status: Active
• Features: Brazed Seam, Serrated Mating Area
• Terminal Type: Splice - Butt
• Base Product Number: BS10
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8536.90.4000
• REACH Status: REACH Unaffected
• UNSPSC Code: 39120000
• Angle: straight Degree(s)
• Contact Material: Copper
• Contact Plating: Tin
• Manufacturer Part Number: BS10-L
• Overall Length: 0.63 in
• Overall Width: 0.22 in
• Package Quantity: 50
• Type: Butt Splice
• Unit of Measure: PK
• UPC Code: 074983832040
• Wire Size: 10-12 AWG
• Product Series: Pan-Term Splices
• Family Series: Panduit Terminals, Pan-Term Splices Series
• Description: Panduit BS10-L Non-Insulated Butt Splice
• Wire Size Range: 12-10 AWG
• Insulated: Non-Insulated
• Plating Material: Tin
• Maximum Temperature: 302 F
• Approvals: CSA, UL
• Net Weight: 0.0045 lbs
• Gross Weight: 0.0045 lbs
