Panduit abm4h-a-t Adhesive Cable Tie Mount 4-way 200-pack

Product Description

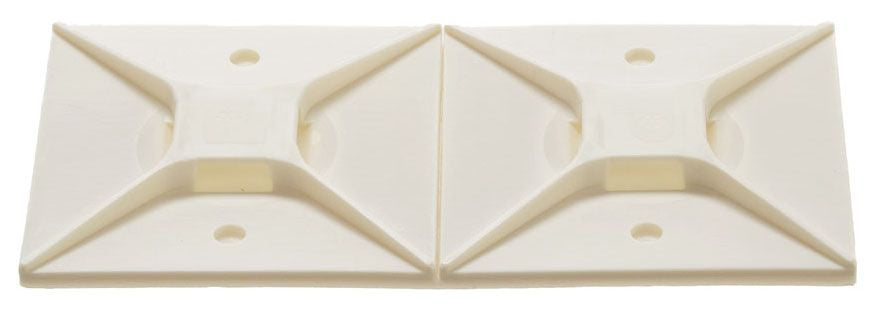

The PANDUIT abm4h-a-t is a 4-way rubber adhesive-backed cable tie mount designed for fast installation and long-term retention in indoor wiring and cable management applications. Constructed from Nylon 6.6, the mount measures 2 inches long by 2 inches wide and 0.25 inches tall, with a rubber adhesive base that bonds to smooth surfaces without drilling or fasteners. A number 6 screw mounting hole is also integrated for optional mechanical fastening. Each mount accepts cable ties in four entry directions, giving installers flexible routing options. The abm4h-a-t carries UL and CE approval and is RoHS compliant, making it appropriate for professional electrical and data installations where compliance documentation is required.

This mount is intended for indoor use across a rated temperature range of 40 to 85 degrees C. It is suited for panel wiring, equipment enclosures, control cabinets, and structured cabling runs where adhesive-mount solutions are preferred over drilling. The abm4h-a-t is compatible with Miniature Tie, Intermediate Tie, Standard Tie, Heavy Standard Tie, Light Heavy Tie, Heavy Tie, and Tak-Ty Hook and Loop Miniature Tie cable ties. It ships in a standard package of 200 units, supporting larger installation projects and contractor stocking.

Key Features

• 4-way tie entry accepts cable ties in any of four directions for flexible cable routing
• Rubber adhesive base bonds to clean, smooth surfaces without fasteners or tools
• Integrated number 6 screw mounting hole provides optional mechanical attachment
• Nylon 6.6 construction handles indoor temperature range of 40 to 85 degrees C
• UL and CE approved, RoHS compliant for regulated installation environments
• Standard package of 200 units supports high-volume and contractor-level installations

Compatibility

Designed for use with Miniature Tie, Intermediate Tie, Standard Tie, Heavy Standard Tie, Light Heavy Tie, Heavy Tie, and Tak-Ty Hook and Loop Miniature Tie cable ties as stated by the manufacturer. Intended for indoor applications only.

Installation Notes

Installation is typically performed by electricians or low-voltage technicians during panel build, cable tray work, or enclosure wiring. Before applying, clean the mounting surface thoroughly to remove dust, oil, and moisture to ensure full adhesive contact. If using the screw hole for mechanical backup, confirm the substrate and hardware are compatible with a number 6 screw before fastening. Follow applicable NEC or local electrical code requirements for cable support spacing and bundling practices.

Technical Specifications

• Type: Rubber Adhesive
• Material: Nylon 6.6
• Color: Natural
• Tie Entry: 4-Way
• Length: 2 inches
• Width: 2 inches
• Height: 0.25 inches
• Mounting Hole Size: Number 6 Screw
• Temperature Range: 40 to 85 degrees C
• Application: Indoor
• Approvals: UL, CE
• Compliance: RoHS Compliant
• Standard Package Quantity: 200
• Country of Origin: USA

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: abm4h-a-t
