Panduit abm2s-at-d0 Cable Tie Mount Adhesive 1x1 in Black 500pk

Product Description

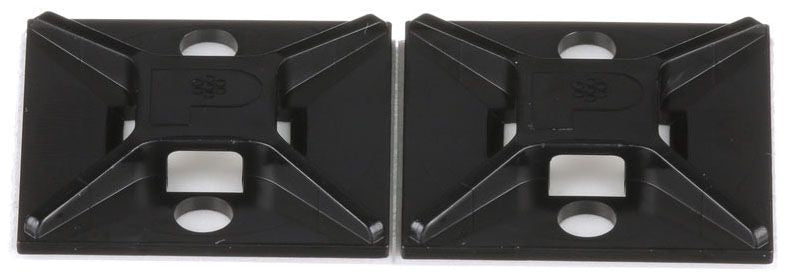

The PANDUIT abm2s-at-d0 is a 4-way acrylic adhesive-backed cable tie mount designed for fast installation and long-term performance in demanding environments. Made from weather-resistant ABS plastic, this mount measures 1 inch by 1 inch with a height of 0.16 inches. The acrylic adhesive backing bonds to surfaces for a secure, no-drill installation option, while two number-6 screw mounting holes provide a mechanical fastening alternative. Suitable for indoor and outdoor use, this mount is rated for high-temperature environments and is RoHS compliant. Each package contains 500 mounts, supplied in strips of two, making them practical for large-scale wire management jobs.

This mount is used in commercial and industrial wire management applications where cable ties must be anchored to a surface without brackets or separate hardware. The 4-way tie entry accepts cable ties fed from any direction, giving installers flexibility in routing. It is rated for indoor and outdoor use including high-temperature environments, making it applicable in electrical enclosures, panels, HVAC equipment, and general cable bundling in exposed installations. Compatible tie sizes include miniature, intermediate, and standard cable ties.

Key Features

• Acrylic adhesive backing for tool-free surface bonding on clean, flat substrates
• Dual number-6 screw mounting holes for mechanical fastening as an alternative or supplement to adhesive
• 4-way tie entry accepts cable tie insertion from any direction
• Weather-resistant ABS construction rated for indoor and outdoor high-temperature use
• RoHS compliant and UL and CE approved
• 500 mounts per package, supplied in perforated strips of two for efficient dispensing

Compatibility

Compatible with miniature, intermediate, and standard cable ties. Designed for use in indoor and outdoor cable management applications requiring a surface-mount anchor point.

Installation Notes

Electricians and low-voltage installers typically apply these mounts during panel wiring, conduit runs, or equipment harness work. Before applying the adhesive mount, clean and dry the mounting surface thoroughly to ensure proper adhesion. If using the screw mounting holes, select appropriate number-6 fasteners for the substrate material. Follow applicable NEC guidelines for cable and wire management in the installation environment.

Technical Specifications

• Type: Acrylic Adhesive
• Tie Entry: 4-Way
• Length: 1 inch
• Width: 1 inch
• Height: 0.16 inches
• Material: Weather Resistant ABS
• Color: Black
• Mounting Hole Size: (2) No. 6 Screw
• Compatible Tie Sizes: Miniature, Intermediate, Standard
• Application: Indoor/Outdoor, High-Temperature
• Approvals: UL, CE
• RoHS Compliant: Yes
• Package Quantity: 500
• Country of Origin: USA

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: abm2s-at-d0
