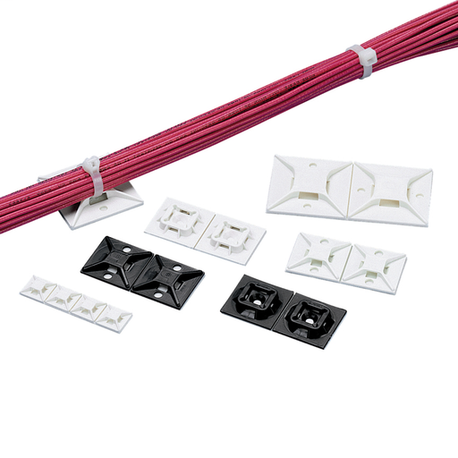

Panduit abm112-a-d Adhesive Cable Tie Mount White 500pk

Product Description

The PANDUIT abm112-a-d is a 4-way adhesive-backed cable tie mount designed for routing and securing wire bundles in indoor electrical and data installations. Made from nylon 6.6, the mount delivers strong mechanical performance with resistance to heat, wear, and deformation over time. It measures 1.12 inches long by 1.12 inches wide and 0.2 inches in height, with a rubber adhesive backing for tool-free surface attachment. Each package contains 500 mounts. Licensed electricians and low-voltage installers are the primary users of this component in panel wiring, enclosure dressing, and structured cabling applications.

This mount is suited for indoor residential and commercial installations where cable bundles need to be organized along flat surfaces without drilling or fasteners. The 4-way design accepts miniature, intermediate, and standard cable ties, making it adaptable across a range of wire bundle sizes. It is commonly used in electrical enclosures, wall cavities, junction boxes, and equipment racks where clean wire management is required and ambient temperatures remain within rated limits.

Key Features

• 4-way tie slot accepts miniature, intermediate, and standard cable ties
• Nylon 6.6 construction for improved strength, stiffness, and wear resistance
• Rubber adhesive backing for tool-free, no-drill surface mounting
• Compact footprint: 1.12 inches x 1.12 inches x 0.2 inches
• White color finish for clean, professional appearance in light-colored enclosures
• Rated for indoor use across a wide operating temperature range
• Sold in packages of 500 for high-volume installation jobs

Compatibility

Designed for use with miniature, intermediate, and standard cable ties in indoor wiring and cable management applications.

Installation Notes

Installation is performed by licensed electricians or low-voltage technicians. De-energize circuits before working inside enclosures or panels per NFPA 70 (NEC) requirements. Clean and dry the mounting surface before applying the adhesive backing to ensure a secure bond. Do not use in outdoor, wet, or high-humidity environments, as this mount is rated for indoor use only.

Technical Specifications

• Material: Nylon 6.6
• Color: White
• Overall Length: 1.12 inches
• Width: 1.12 inches
• Height: 0.2 inches
• Max Operating Temperature: 49 degrees C
• Min Operating Temperature: -29 degrees C
• Package Quantity: 500
• Package Weight: 1.750 pounds
• UPC: 74983281121

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: abm112-a-d
