Panduit ABM112-A-C Four Way Cable Tie Mounting Base

Product Description

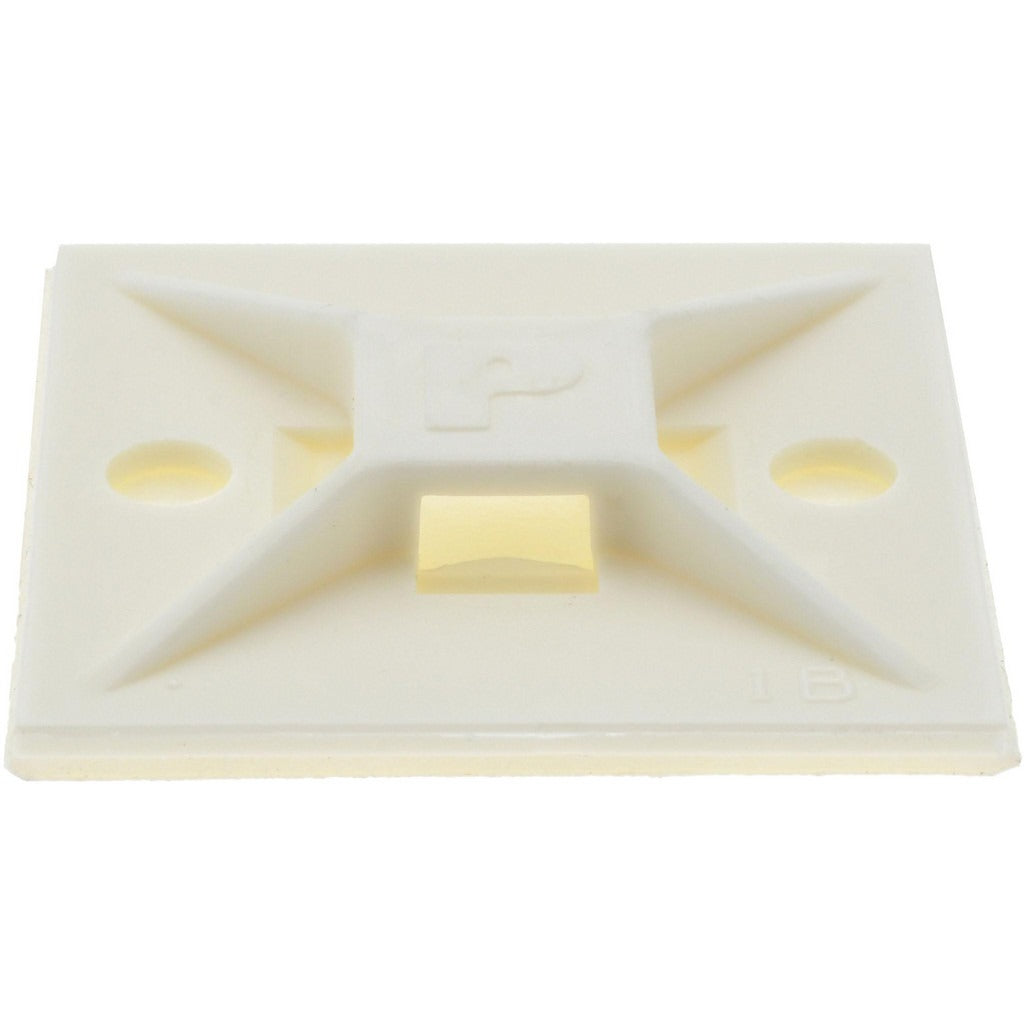

The PANDUIT ABM112-A-C is a four-way cable tie mounting base designed for securing and routing cable bundles in electrical and low-voltage wiring installations. Molded from white nylon, this base measures 1.12 inches long by 1.12 inches wide by 0.16 inches high and mounts via an adhesive-backed fastener that bonds directly to flat surfaces. A secondary screw-mount option accepts a size 6 screw, giving installers a choice of fastening methods depending on the substrate and load requirements. The compact, low-profile design keeps cable runs organized without adding significant bulk to enclosures, panels, or equipment surfaces.

This mounting base is suited for residential and commercial electrical, data, and low-voltage wiring applications. Electricians and low-voltage technicians use it to anchor cable tie loops to junction boxes, equipment enclosures, conduit runs, and flat panel surfaces. The four-way clip orientation allows cable ties to feed from any of four directions, making it adaptable to changing wire routing needs during installation. The white color blends with standard white raceway and electrical device finish work.

Key Features

• Four-way clip accepts cable ties from any of four directions for flexible routing
• Dual-mount design: adhesive-backed for quick attachment plus screw-mount hole for size 6 screw
• Nylon construction rated to 120.2 degrees F maximum operating temperature
• Low-profile at 0.16 inches high, minimizing interference with adjacent components
• White finish suits standard electrical and low-voltage installation environments
• Compact 1.12 x 1.12 inch footprint fits tight spaces in panels and enclosures

Compatibility

Designed as an OEM-style cable management accessory compatible with standard cable ties used in electrical, data, and low-voltage wiring installations. Verify cable tie width against the base clip slot prior to installation.

Installation Notes

Installation is typically performed by licensed electricians or low-voltage technicians in accordance with applicable NEC requirements. When using the adhesive-back mount, ensure the surface is clean, dry, and free of oils before pressing the base firmly into place and allowing adequate bond time before loading with cable ties. When using the screw-mount method, de-energize and lock out any circuits in the work area before drilling or fastening into enclosures. Do not exceed the rated operating temperature of 120.2 degrees F in the installation environment.
