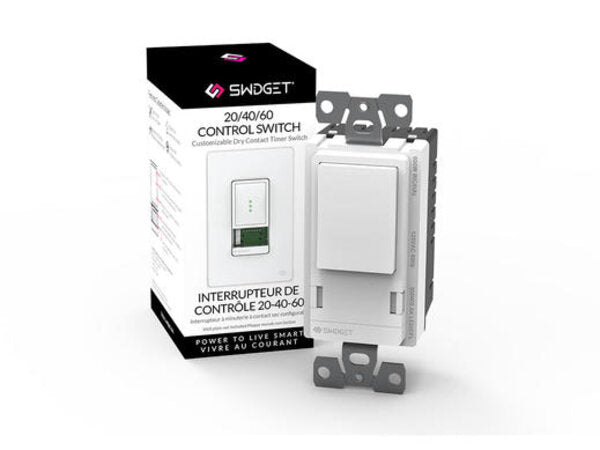

Panasonic S16008WA 20/40/60 timer control switch 125VAC 5A

Product Description

The Panasonic S16008WA is a 125VAC 5A modular Smart Home enabled timer switch. This control switch supports the integration of Home Automation and Smart Home markets with flexible solutions. It allows interchangeable Swidget Inserts to be installed, removed, or replaced, making it suitable for building renovations and new construction. The switch uses a 4-wire interface for single pole or dry contact applications.

• Built-in 20/40/60 minute automatic shut off timer
• Single pole and dry contact wiring, compatible for lighting and fan applications
• Complies with ASHRAE 62.2 when used with an ASHRAE 62.2 compliant fan/ERV/HRV

Product Highlights

Modular Smart Home timer switch with automatic shut-off and Swidget Insert compatibility for versatile applications.

Product Information

Standard Information

• Brand: PANASONIC
• Manufacturer Part Number: S16008WA

Technical Specifications

• Type: Control
• Product Type: Switch
• Model: S16008WA
• Input Voltage: 125VAC
• Current Rating: 5A
• Wiring Type: Pre-stripped wire leads (Line/Neutral) #16 AWG (Stranded), Ground screw
• Certifications: UL1310/UL60730-1 CSA 22.2 #223/E60730-1 (Canada and US)
• Flammability Rating: UL94 5VA
• Installation Environment: Indoor installation only
• Operating Temperature: -10 °C to 40 °C (14 °F to 104 °F)
• Insert Voltage Output: Nominal 5VDC (+/- 5%)
• Insert DC Protection: CLASS 2 - Current limiting and thermal shutdown protection
• Insert Current Output: Constant current maximum 2.0A
• LED/CFL Load Rating: 300W
• Incandescent/Halogen Load Rating: 600W
• Horsepower Load Rating: 0.3HP
• Switch Configuration: Single pole, dry contact
• Color: White
• ID: HR100-1S9-0065
