Panasonic FV-16VEC1T BalancedHome 160 Elite Plus+ Energy Recovery Ventilator (ERV) Top Port

Product Description

The Panasonic FV-16VEC1T BalancedHome series energy recovery ventilator enhances indoor air quality. This ventilator uses a hygroscopic core to manage humidity levels between indoor and outdoor airflows. It is designed for top port installation and features a fault indicator display. The ventilator includes a standard power cord and offers an optional hardwire adapter. It supports adjustable airflow rates from thirty to one hundred sixty CFM.

• Engineered for energy efficiency with a hygroscopic core to manage humidity.

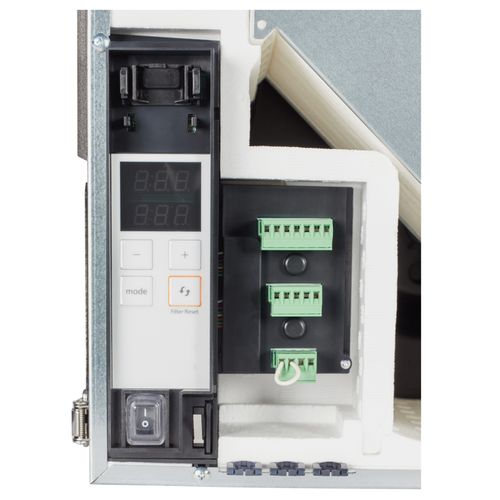

• Includes fault indicator display and standard power cord with optional hardwire adapter.
• Two filters maintain air quality, featuring a hinged access panel for easy maintenance; a MERV 13 filter is included.

Product Highlights

Product Information

Standard Information

• Brand: Panasonic
• Type: Energy Recovery Ventilator

Technical Specifications

• Energy Star Rated: Yes
• Max Airflow (CFM): 160
• Voltage: 120V
• Hertz: 60
• Duct Size: 6 inches
• Warranty: 3 Year (Parts)
• Min Airflow (CFM): 30
• Power Rating: 120V/60Hz, 3.1 Amps
• Static Pressure: 0.4 inch w.g. (tested under CSA-C439)
• Heating Efficiency: Sensible Recovery: ≥ 82% at 36 CFM, 32°F
• Cooling Efficiency: Total Recovery: ≥ 81% at 36 CFM, 95°F
• Motors: Two DC ECM brushless motors (continuous run, thermal fuse-protected)
• Mounting: Ceiling or wall mount with included brackets
• Filters Included: MERV 13 [FV-FL1316VE1]
• Visual/Audible Filter Alerts: After 90 days runtime
• Operating Temperature: Supports freezing conditions via recirculation/exhaust modes
• Power Consumption: ≥ 109W at 0.2 inch w.g., 129 CFM
• Dimensions: Depth - 22-13/16 inches, Height - 22-3/8 inches, Width - 16 inches
• Approved for Commercial Use: Yes
• Collection: BalancedHome
