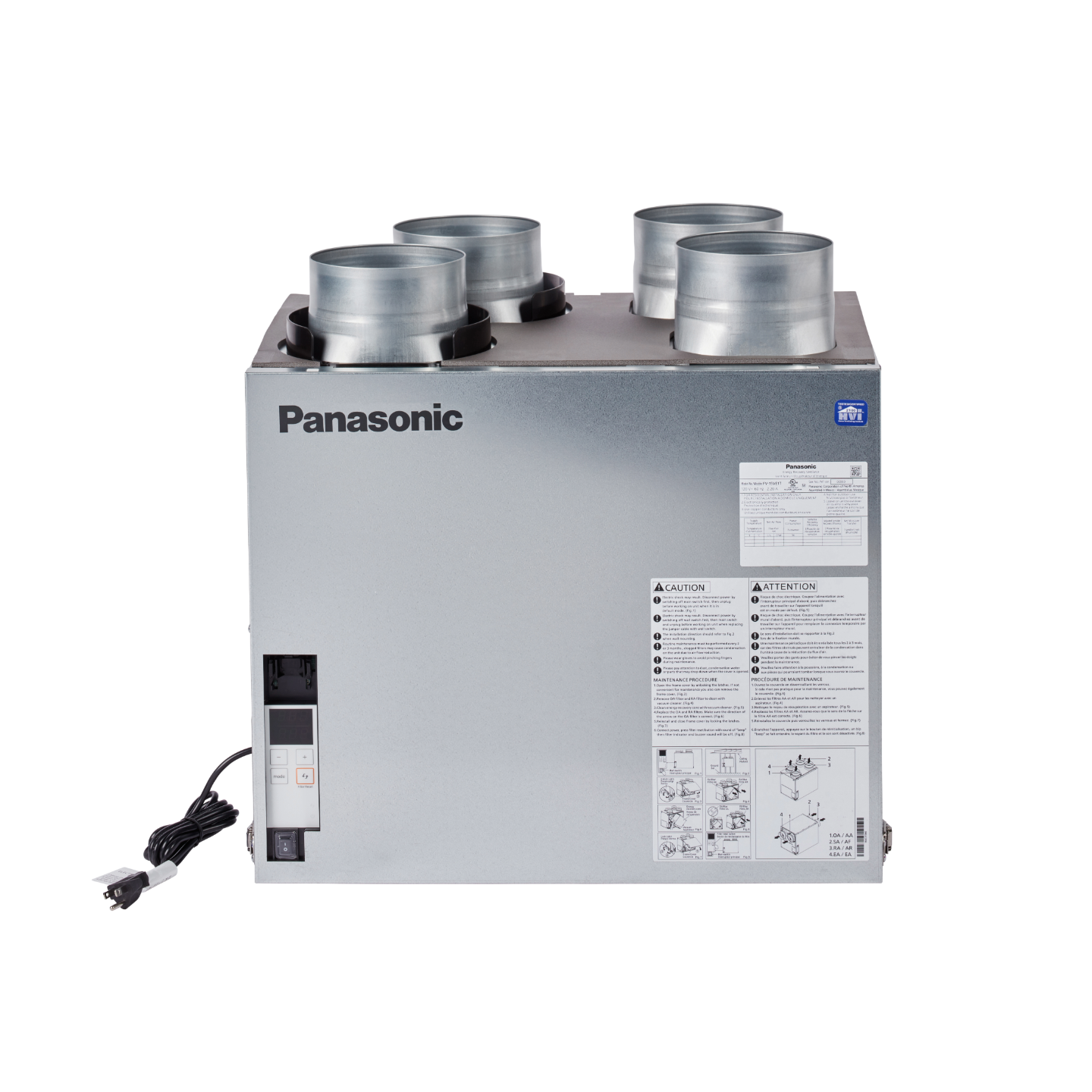

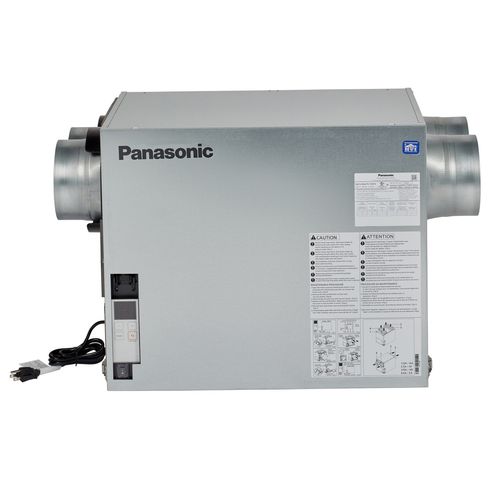

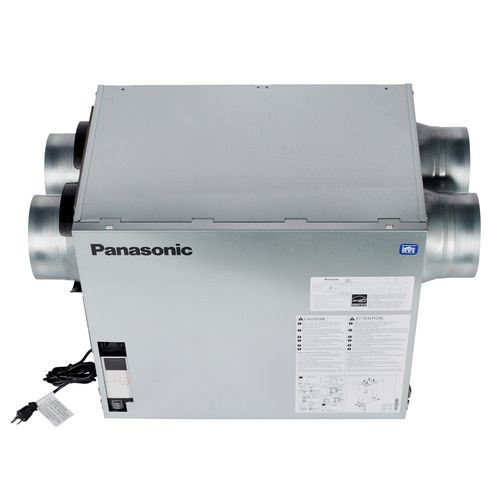

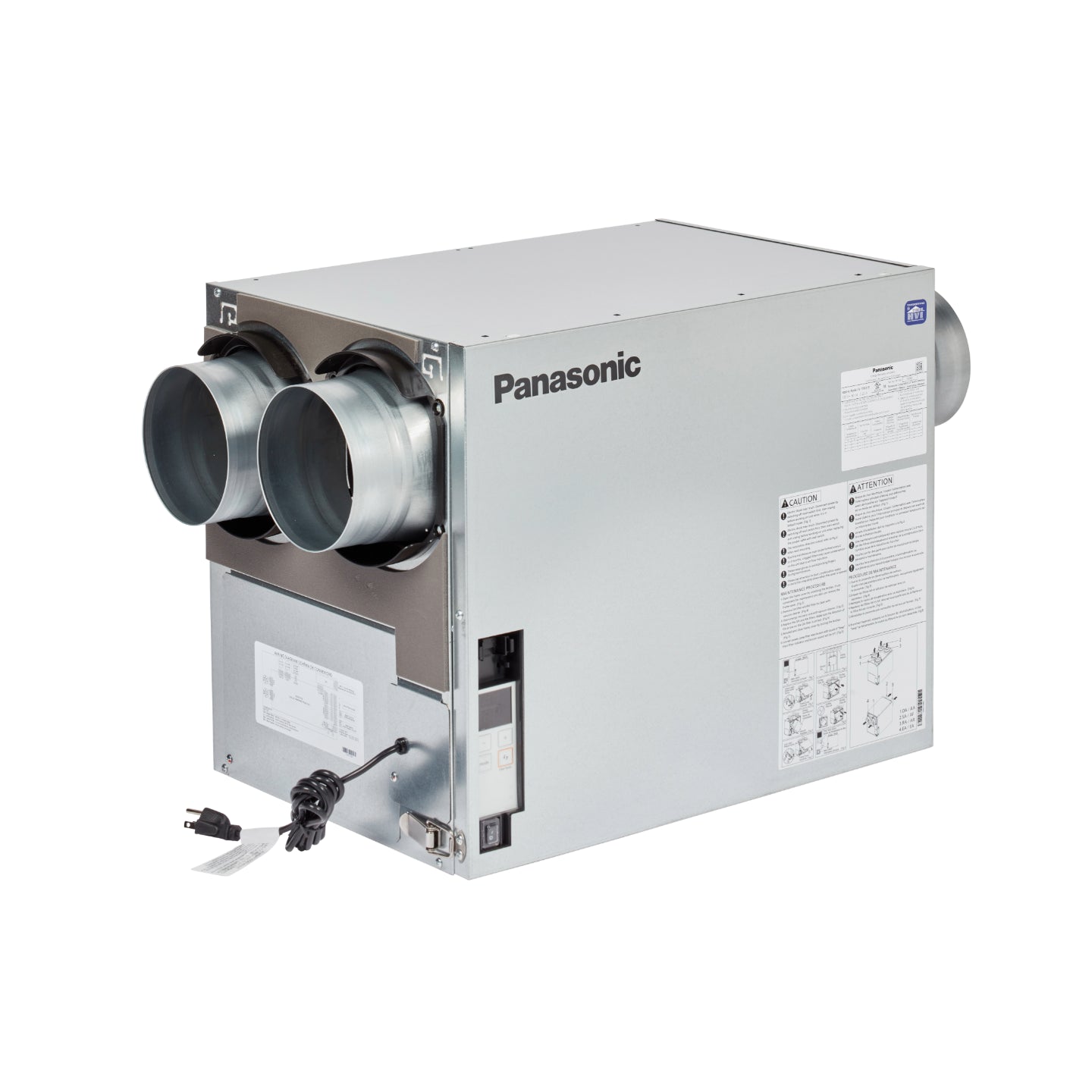

Panasonic FV-16VEC1S BalancedHome 160 Elite Plus+ Energy Recovery Ventilator (ERV)

Product Description

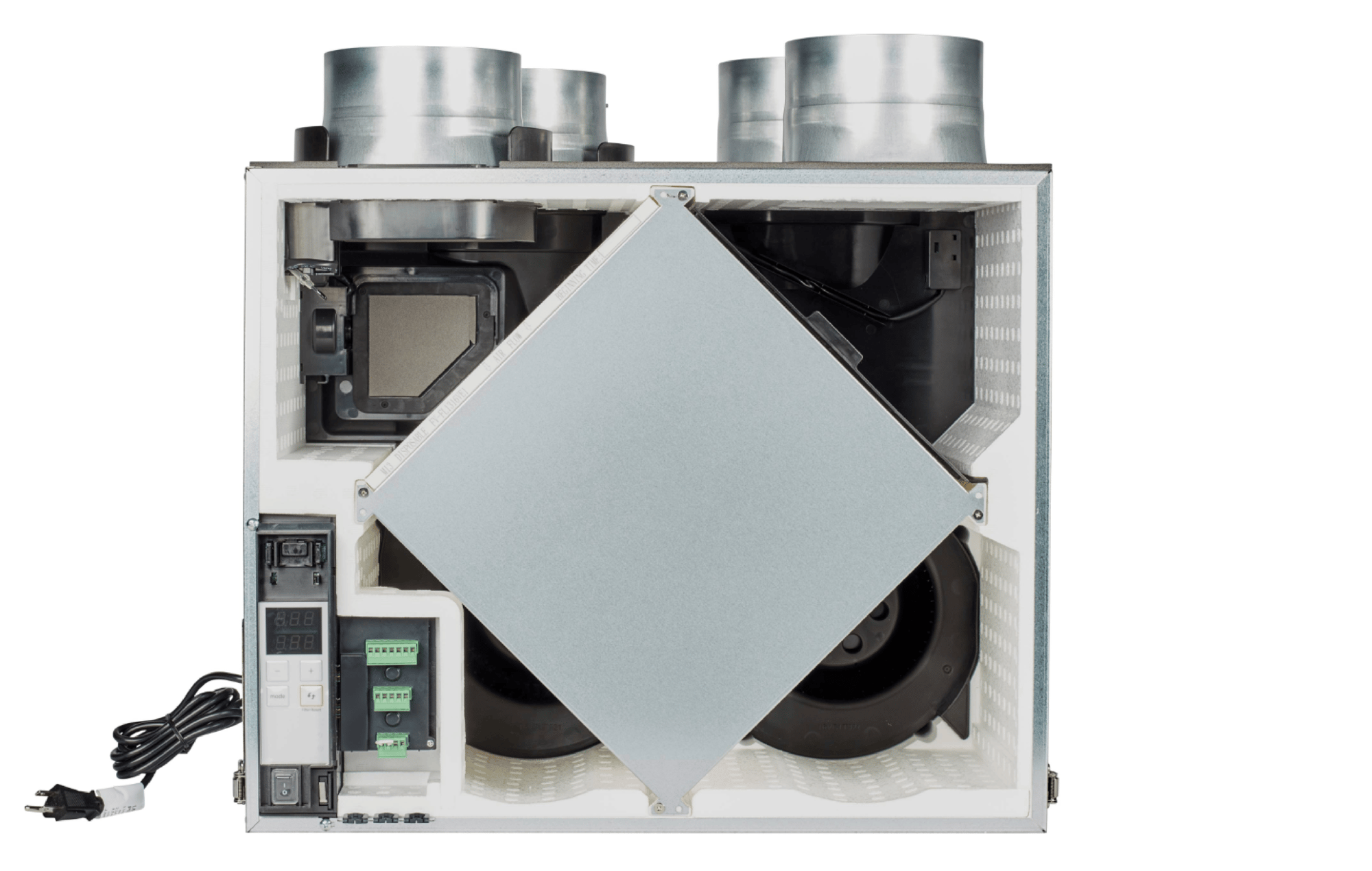

The Panasonic FV-16VEC1S BalancedHome 160 Elite Plus+ Energy Recovery Ventilator (ERV) enhances indoor air quality and energy efficiency. This ventilator utilizes a hygroscopic core to manage humidity levels between indoor and outdoor air. This unit includes a fault indicator display along with a standard power cord and an optional hardwire adaptor. Two filters are included that clean both the exhaust and supply air before it reaches the ERV core.

• Engineered for energy efficiency with a hygroscopic core.
• Includes fault indicator display with standard power cord and optional hardwire adaptor.
• Two filters to clean air before passing it through the ERV core with easy access for maintenance.

Product Highlights

Designed for easy installation and maintenance, this energy recovery ventilator provides optimized filtration for various climates.

Product Information

Standard Information

• Type: Ventilation Systems
• Manufacturer Warranty: 3 Year Parts, 6 Year Motor

Technical Specifications

• Air Flow Capacity (CFM): 160, 30
• Duct Size: 6 inches
• Min Airflow (CFM): 30
• Max Airflow (CFM): 160
• Voltage: 120v
• Wattage: 81W
• Amperage: 1.5A
• Height: 18-7/8 inches
• Width: 16 inches
• Depth: 30-5/16 inches
• Energy Star Rated: Yes
• Power Source: Hardwired
• Speeds: 2
• Approved for Commercial Use: Yes
• Operating Temperature: Freezing conditions supported
• CFM Range: 30 to 140 CFM (adjustable)
• Static Pressure: 0.4inch w.g.
• Cooling Efficiency: 73% Total Recovery Efficiency
• Heating Efficiency: 82% Sensible Recovery Efficiency
• Filters Included: MERV 13 [FV-FL1316VE1]
• Certifications: ASHRAE 62.2, ENERGY STAR, LEED, Indoor airPLUS, CEC, Washington State Energy Code
