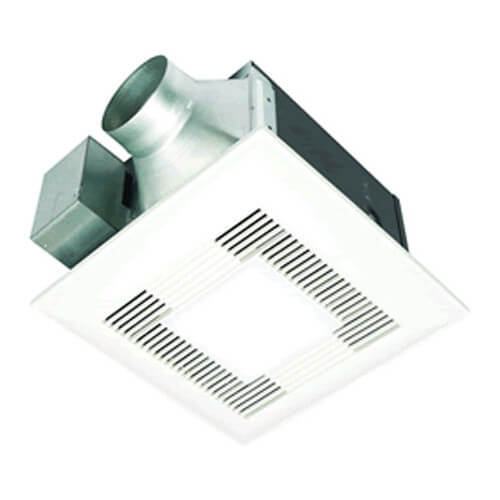

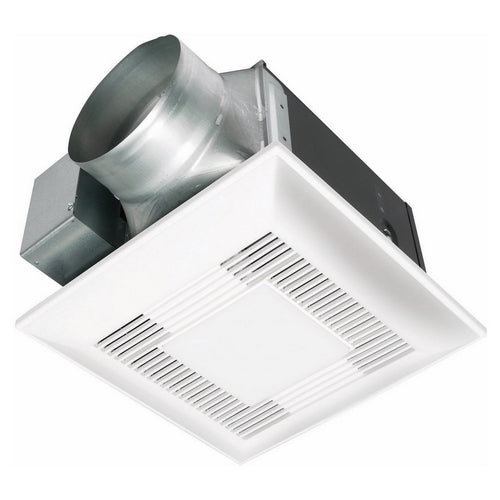

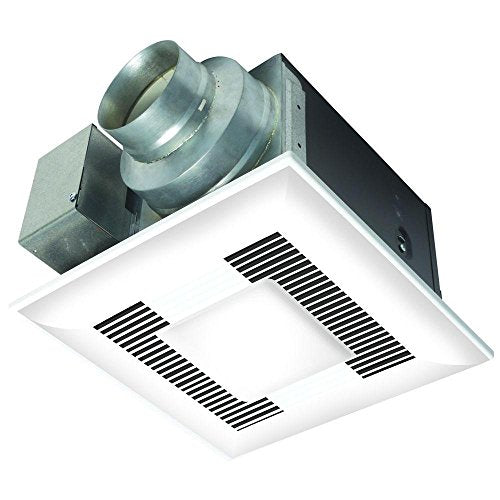

Panasonic FV-15VQL6 WhisperLite bathroom ventilation fan with light 150 CFM

Product Description

The PANASONIC FV-15VQL6 WhisperLite Bathroom Ventilation Fan with Light is a ceiling-mounted unit designed for quiet and efficient air movement. Operating at 120 VAC, it provides an airflow rate of 150 CFM with an amperage rating of 0.27 A. This unit includes two 13 W GU24 base CFL lamps, offering both ventilation and overhead lighting. Constructed with a galvanized steel housing, it is suitable for tub/shower enclosures, ensuring durability and compliance with various standards.

• Features a quiet operation with 0.9 sones at 150 CFM, driven by a totally enclosed condenser motor.
• Equipped with two 13 W GU24 base CFL lamps for illumination and a built-in damper to prevent backdraft.
• Designed for ceiling recessed mounting, featuring a durable galvanized steel housing and a 6-inch duct size.

Product Highlights

This 150 CFM ventilation fan with light is ENERGY STAR certified, cULus Listed, and includes a self-start ballast for reliable performance.

Product Information

Standard Information

• Brand: PANASONIC
• Manufacturer Part Number: FV-15VQL6

Technical Specifications

• Manufacturer: Panasonic
• Brand: Panasonic
• Product Type: ELECTRIC_FAN
• MPN: FV-15VQL6
• Air Flow Rate: 150 CFM
• Amperage Rating: 0.27 A
• Average Life: 10000 hr
• Ballast Type: Self-Start
• CRI: 84
• Color Temperature: 3500 K
• Enclosure Rating: Tub/Shower
• Fixture Wattage: 31.8 W
• Housing Material: Galvanized Steel
• Included Lamps: (2) 13 W Self-Ballasted GU24 CFL Lamps
• Lamp Base Type: GU24
• Lamp Type: CFL
• Lamp Wattage: 13 W
• Mounting Type: Ceiling
• Number of Lamps: 2
• Standards/Approvals: ASHRAE 62.2, LEED Certified, cULus Listed, Washington VIAQ, ENERGY STAR Certified, HVI 2001
• Fan Type: Quiet
• Input Voltage: 120 VAC
• Application: Bathroom
• Motor Type: Condenser
• Blower Wheel Type: Sirocco
• Motor Bearing: Ball
• Mounting Opening: 10-1/2 in
• Grille Size: 13 in
• Duct Size: 6 in
• Lamp Model: FHT32E35
• Night Light Lamp Watts: 7 W
• Frequency: 60 Hz
• Sone Level: < 0.3
• Thermal Fuse Protection: Yes
