Product Description

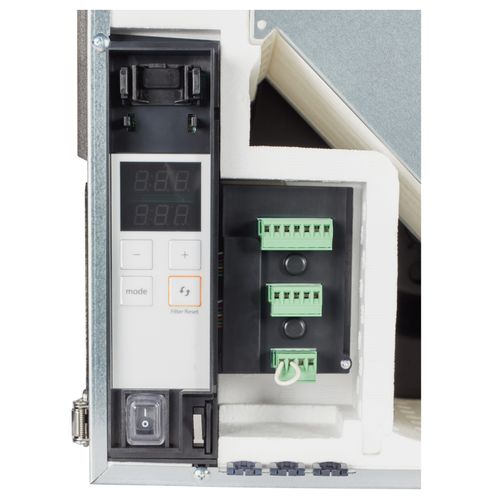

The Panasonic FV-12VE1S BalancedHome 120 Elite Energy Recovery Ventilator (ERV) improves indoor air quality effectively. This ERV features a hygroscopic core that helps balance humidity between indoor and outdoor air. It includes a fault indicator display and comes with a standard power cord along with an optional hardwire adaptor for versatile installation. The unit is designed to filter and clean exhaust and supply air using two integrated filters before they flow through the ERV core.
- Engineered for energy efficiency with a hygroscopic core.
- Equipped with a standard power cord and optional hardwire adaptor for easy installation.
- Features two filters and a hinged access panel for convenient maintenance.
Product Highlights
The FV-12VE1S is designed to optimize air filtration for a healthier indoor environment while providing simple installation and energy efficiency.
Product Information
Standard Information
-
Brand: Panasonic
-
Type: Ventilation Systems
Technical Specifications
-
MPN: FV-12VE1S
-

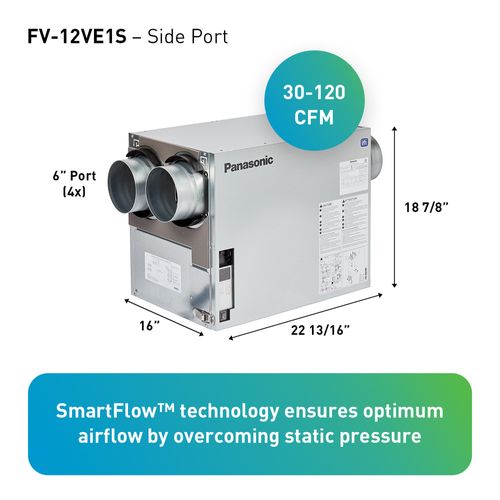

Duct Size: 6 inches
-
Warranty: 3 Year (Parts)
-
Air Flow Capacity (CFM): 30-120
-
Hertz: 60
-
Voltage: 120V
-
Energy Star Rated: Yes
-
Max Airflow (CFM): 120
-
Min Airflow (CFM): 30
-
Depth: 30-5/16 inches
-
Height: 18-7/8 inches
-
Width: 16 inches
-
Wattage: 81W
-
Amperage: 1.5A
-
Power Rating: 120V/60Hz, 2.4 Amps
-
Filters Included: MERV 8 [FV-FL0815VE1]
-
Filters Replacements: MERV 13 [FV-FL1316VE1], washable MERV 6 [FV-FL0616VE1]
-
Certifications: ASHRAE 62.2, Ontario Building Code, LEED, Indoor airPLUS, California Title 24, 2021 Washington State Residential Energy Code
-
Operating Temperature: Freezing conditions supported via recirculation/exhaust modes
